CRL 2" Brushed Stainless Square Corner Cap Rail for 12-16mm Glass
CRL 2" Brushed Stainless Square Corner Cap Rail for 12-16mm Glass
Regular price
$1,239.03 CAD
Regular price
Sale price
$1,239.03 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRSC20BS
Shipping Weight: 25.7 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 25.7 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
5/8 in. (16 mm)
Length
120 in. (3048 mm)
Material
Stainless Steel
Thickness
.078 in. (2 mm)
Overview
- Crisp Corner Design
- Use Sleeve No. GRS20CSS
- 120" (3.05 m) stock lengths — available in two sizes and two architectural finishes
- Profiles range from 1-1/2" (38 mm) to 2-1/2" (63.5 mm)
- 304 stainless alloy standard; 316 available on special order

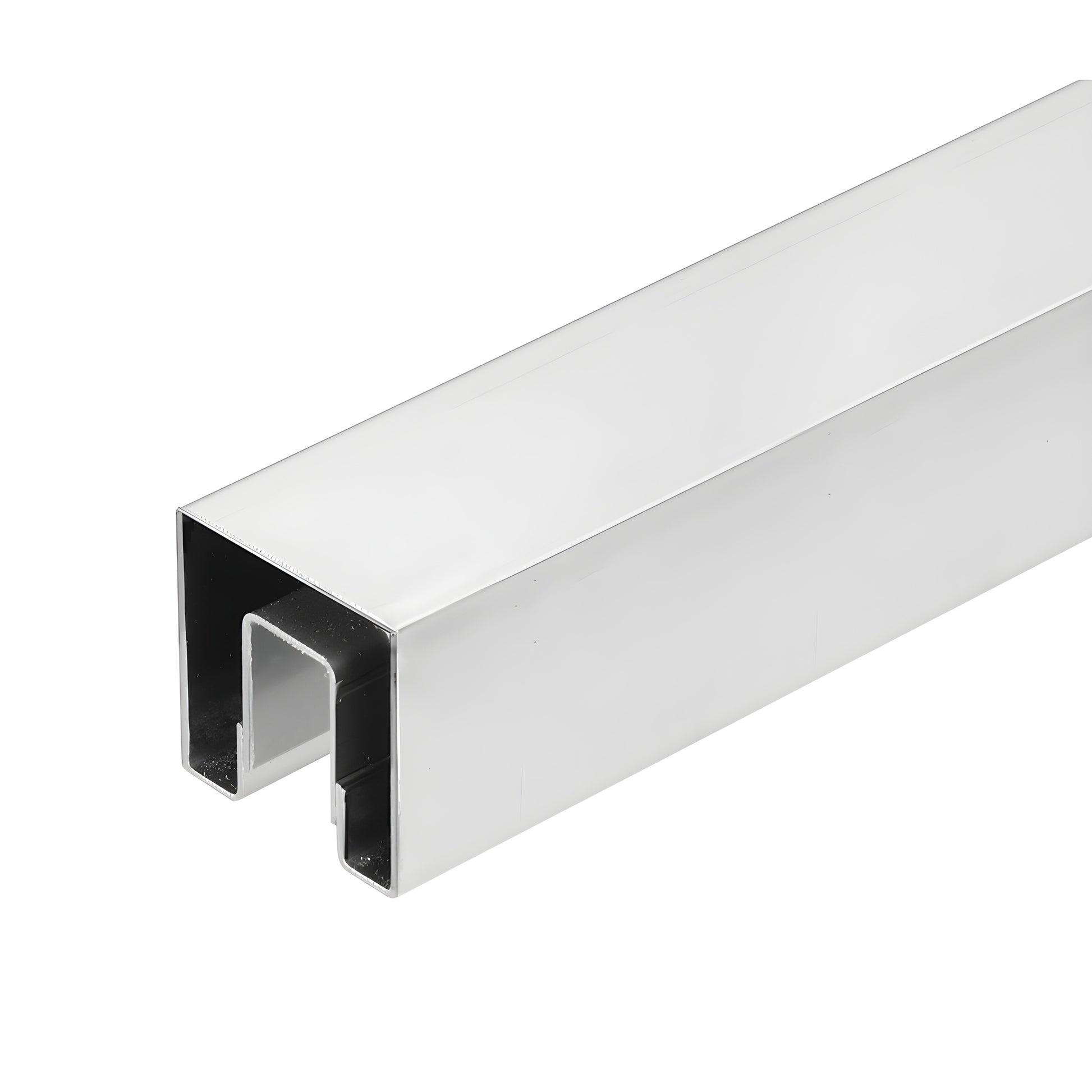

CRL Crisp Corner Square Cap Rails (SKU: GRSC20BS) are precision-formed to maintain uniform profiles for smooth hairline transitions at splices, corners, and end caps. An internal channel is welded for added strength and stability during fabrication. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond at all connections—required for proper assembly.
Differentiators: precision tooling for consistent corner finishes, welded internal channel for rigidity, and compatibility with CRL accessories like GRS20CSS sleeve and 32629 contact cement—ideal for stainless steel railing cap rails for glass applications.
NOTE: 1-1/2" (38 mm) Square Premium Cap Rail fits only 1/2" (12 mm) glass and is secured with 95CBL silicone and shims.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.
Order CRL Crisp Corner Square Cap Rails (GRSC20BS) or contact CRL for pricing and lead times.
