CRL

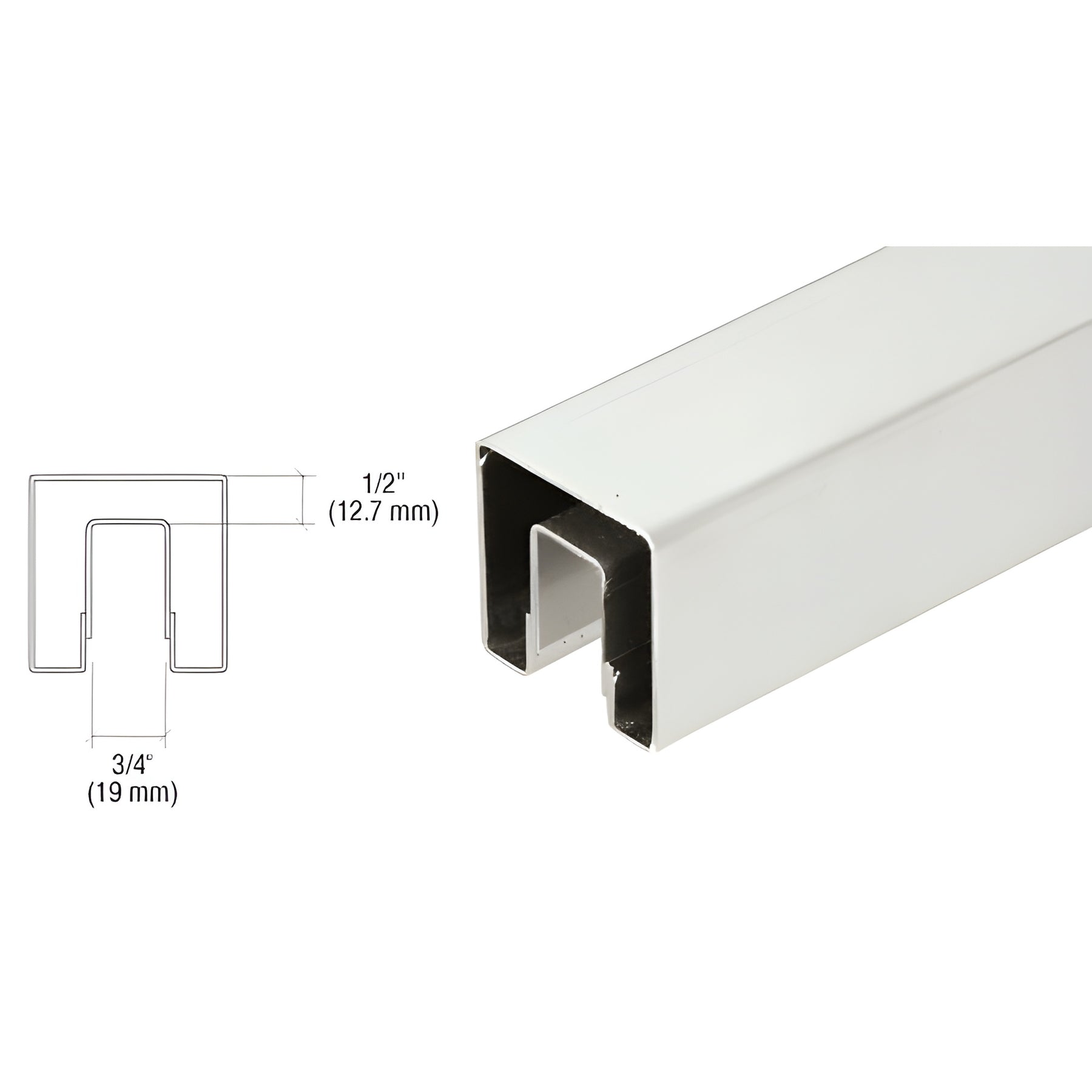

CRL Brushed Stainless 2" Square Cap Rail for 1/2-5/8" Glass 120"
CRL Brushed Stainless 2" Square Cap Rail for 1/2-5/8" Glass 120"
Regular price
$1,004.02 CAD
Regular price
Sale price
$1,004.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRS20BS
Shipping Weight: 30.85 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 30.85 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Height
2 in. (51 mm)
Length
120 in. (3048 mm)
Material
Stainless Steel
Thickness
.05 in. (1.27 mm)
Width
2 in. (51 mm)
Overview
- Stock lengths available in three sizes and two architectural finishes
- Compatible with premium corners — use sleeve No. GRS20CSS
- Profiles range from 1-1/2" (38 mm) to 2-1/2" (63.5 mm)
- 304 stainless alloy is standard; 316 alloy available on special order
All CRL Premium Square Cap Rails are formed with precision tooling to maintain uniform profiles and smooth hairline transitions at splices, corners, and end caps. The internal channel is welded for added strength and stability during fabrication. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond at all connections.
NOTE: Except for the GRS15 Series Cap Rails, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. For GRS15 Series Cap Rails or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.
Product Warning:
1-1/2" (38 mm) Square Premium Cap Rail works only with 1/2" (12 mm) glass and must be secured with 95CBL Silicone and shims.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: GRS20BS — Premium stainless steel square cap rail for glass railing applications. Ideal for commercial and residential balustrades where a clean, architectural finish is required.
Need help specifying lengths, finishes, or alloy options? Contact CRL Customer Service or order GRS20BS today.
