CRL 24 in Extra-Length Brushed Stainless Steel Ladder-Style Door Pull
CRL 24 in Extra-Length Brushed Stainless Steel Ladder-Style Door Pull
Regular price
$494.51 CAD
Regular price
Sale price
$494.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 24LPBS
Shipping Weight: 13.03 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.03 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
24 in. (610 mm)
Style Washers
No
Overview
- Eleven sizes: 24" to 84" overall height (610 mm to 2.13 m) in several finishes
- Custom lengths, designs, and finishes available by special order
- Constructed from 304 grade stainless steel for durability
- Fasteners included for 1-3/4" (44 mm) thick wood or metal doors

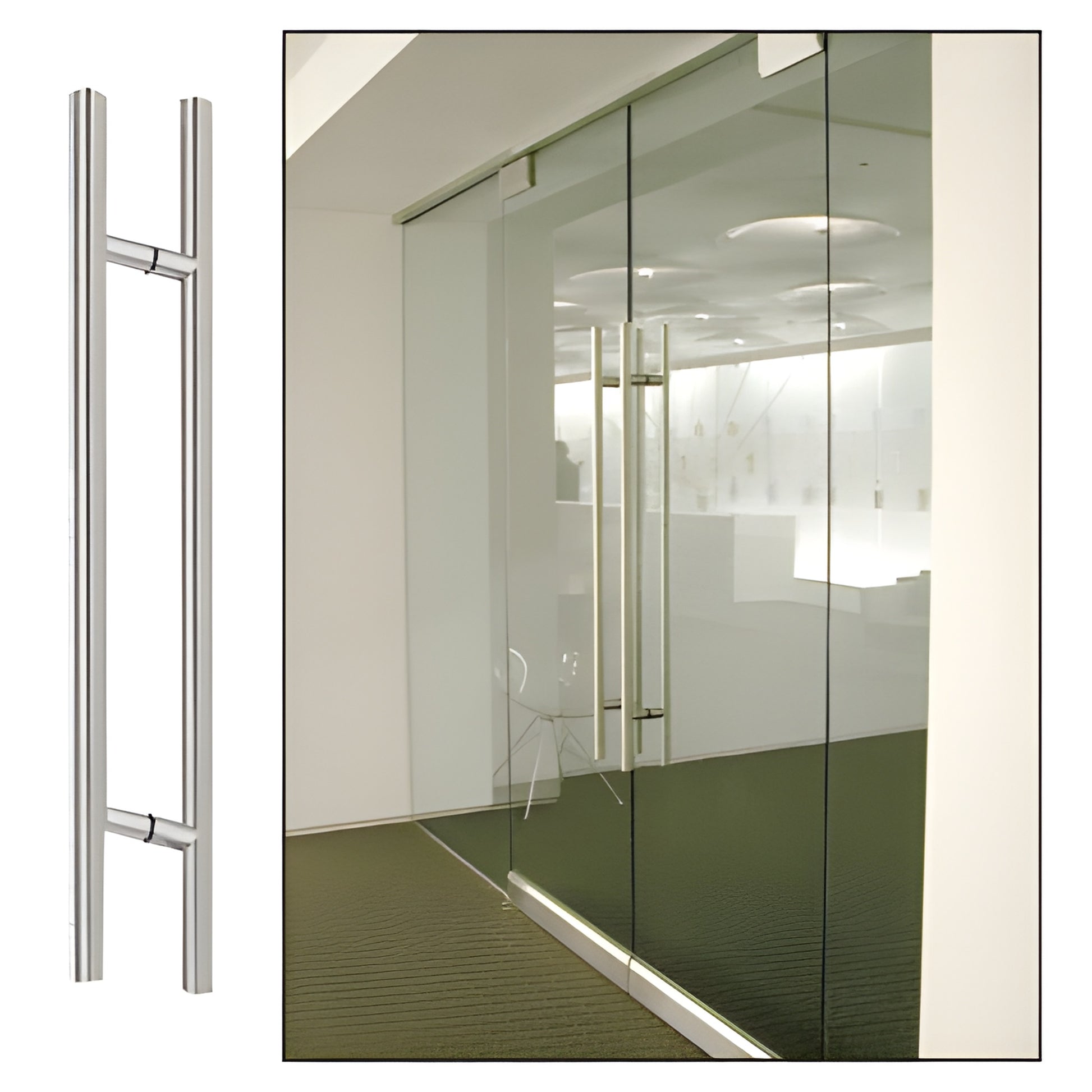

CRL straight-style ladder pulls include two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) thick tempered glass. Fasteners for 1-3/4" (44 mm) wood or aluminum doors are included. Custom ladder pulls can be ordered with additional mid-posts for added support; maximum mid-post spacing is 72" (1.83 m). These tempered glass ladder pull handles are ideal for commercial glass door applications where a robust stainless steel door pull is required.
SPECIFICATIONS:
3/8" to 3/4" (10 to 19 mm) thick tempered glass
CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing
GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes
NOTE:
Click here to view our single-sided ladder pulls in all available sizes and finishes.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
SKU: 24LPBS — For pricing, finish options, or to request a custom size, contact CRL or place your order today.
