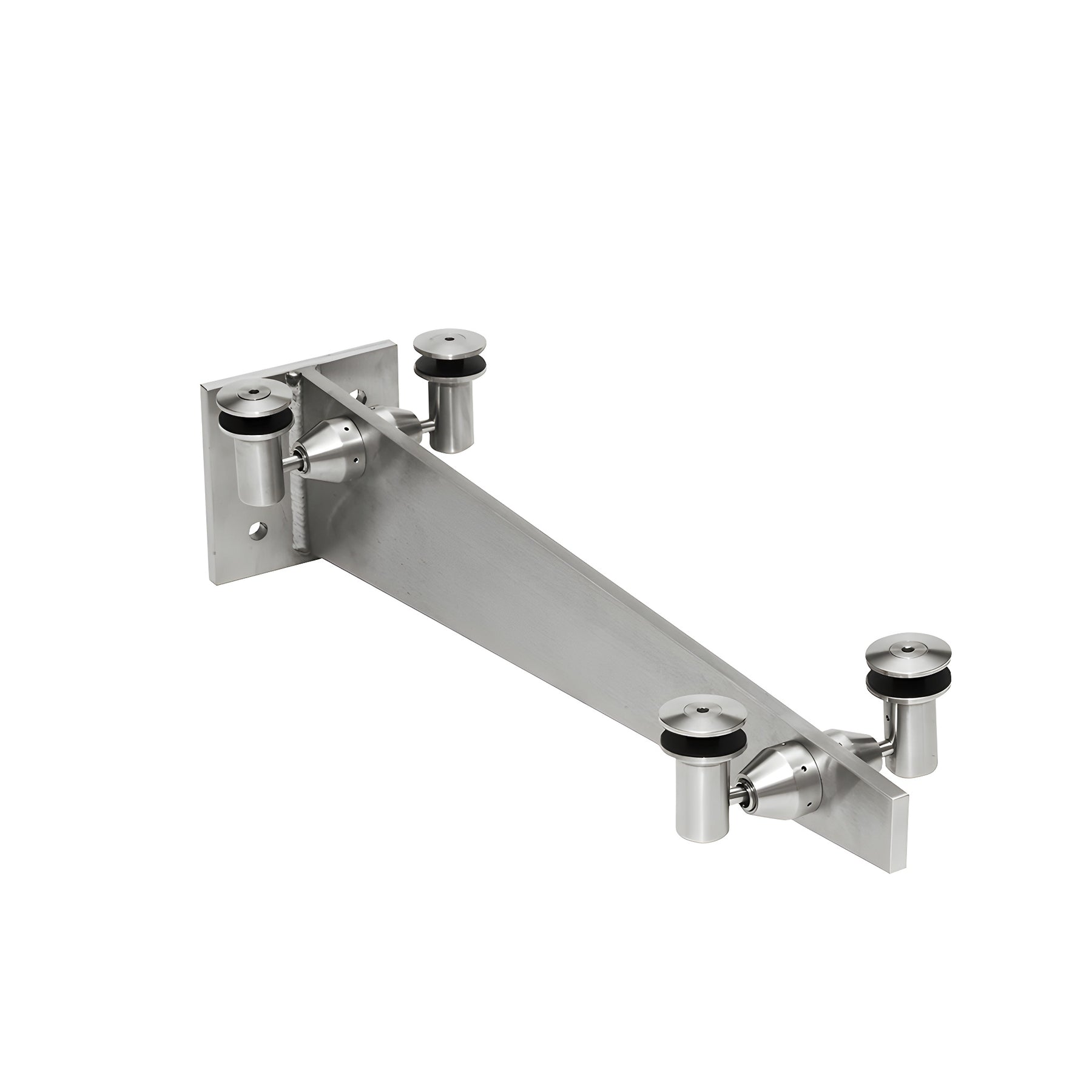

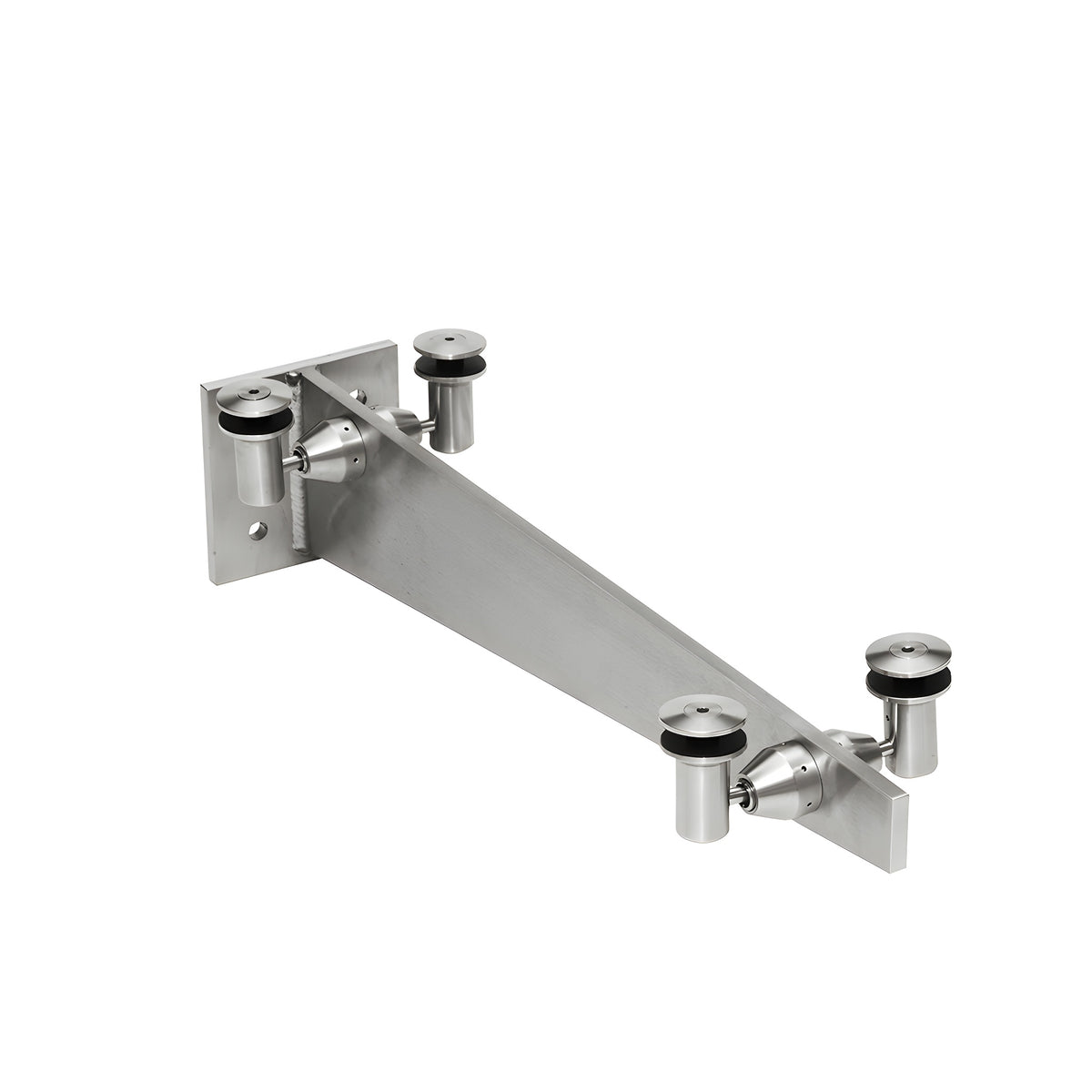

CRL 24 in Brushed Stainless Steel Wall-Mount Glass Awning Bracket
Item# GAB24BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 9/16 in. (15 mm) |
| Glazing | Type Monlithic Tempered, Laminated |
| Length 24 in. | (609.6 mm) |
| Material | Stainless Steel (Alloy 304) |
| Mounting | Application Wall |
- Used on flat or curved top segmented glass awnings
- Fabricated from 304 alloy stainless steel for exterior awning brackets
- Available in brushed or polished finishes
- Custom angles and 45° corner brackets available on special order
- Designed for 9/16" (14 mm) thick laminated glass
- Use with monolithic tempered glass where required
These CRL Universal Wall Mount Glass Awning Brackets (SKU: GAB24BS) combine durable 304 stainless steel construction with adjustable swivel glass fittings for reliable performance on commercial and residential glass awnings. Each bracket assembly includes four glass attachments that require one 3/4" (19 mm) hole per attachment. The swiveling glass attachments provide ±8° adjustment (16° total) to accommodate segmented, bent, or slightly warped glass—ideal for flat or curved top segmented awnings and custom glass canopy installations.
For special sizes, custom angles, or unique configurations, contact the CRL Architectural & Ornamental Metals Technical Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more details, view the Stainless Steel Disclaimer in the Technical References section below.
CAD Drawings - pdf
