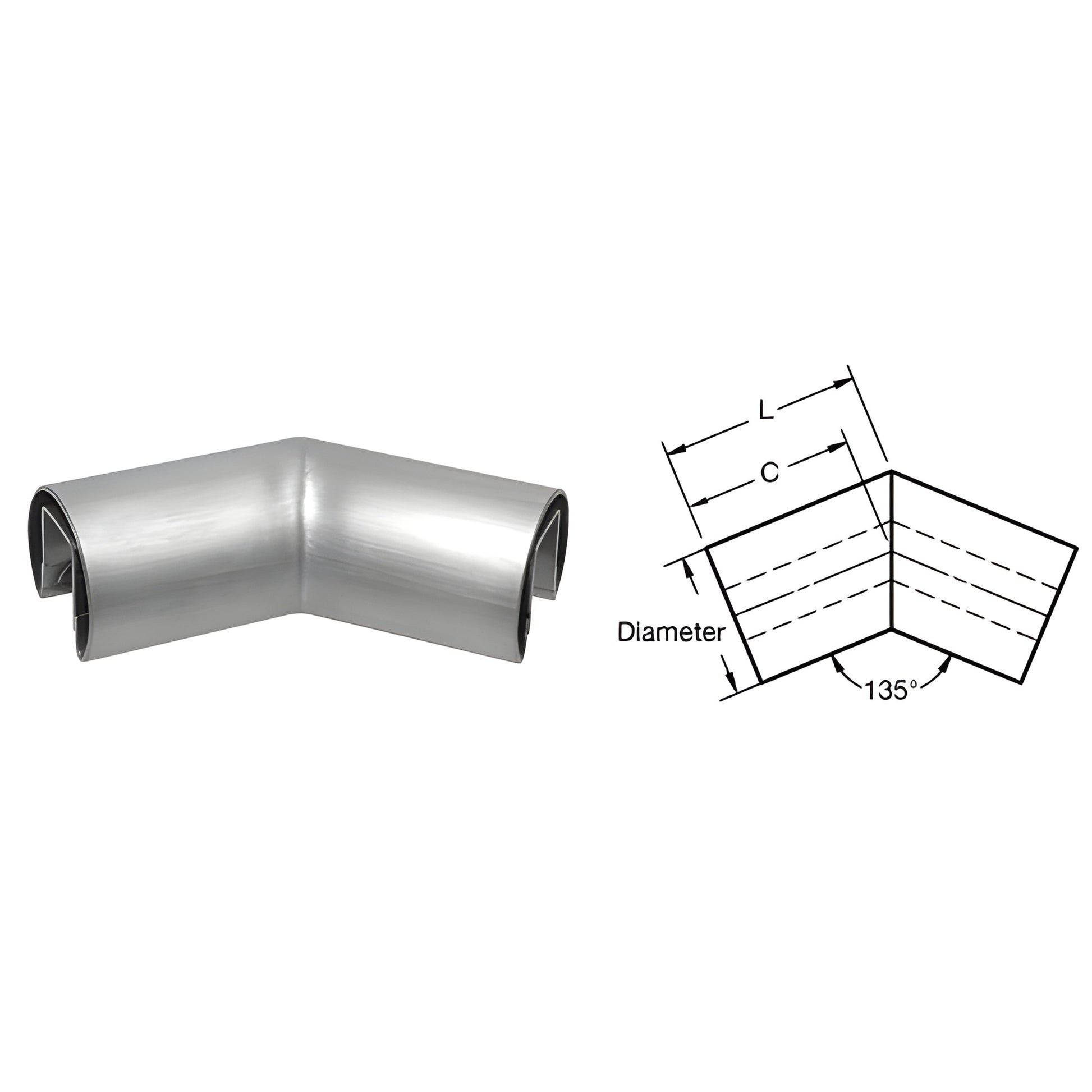

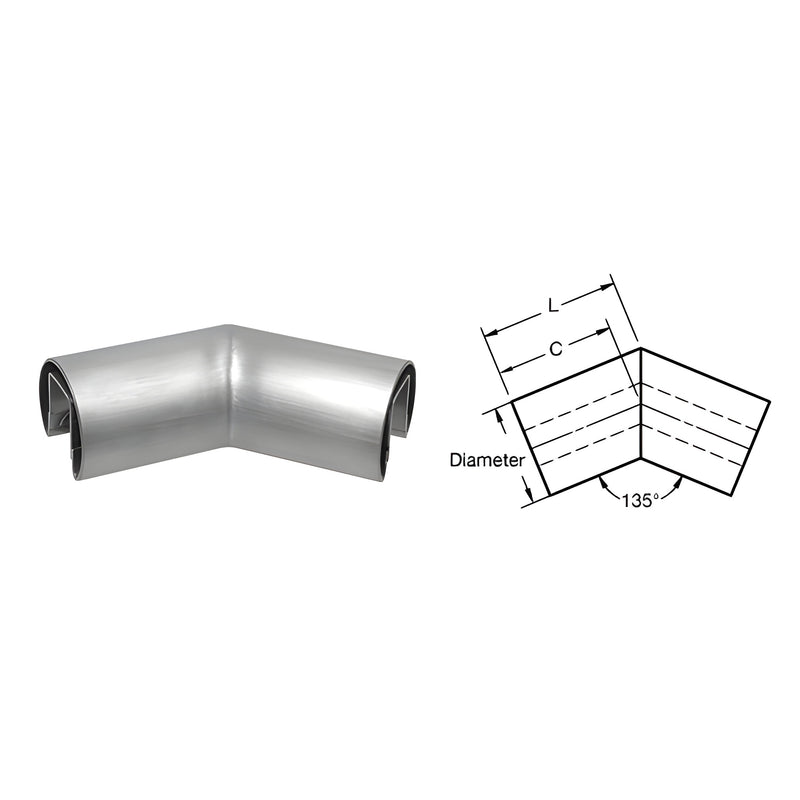

CRL Brushed Stainless 3.5in 135° Glass Cap Railing Corner (1/2–5/8in)
CRL Brushed Stainless 3.5in 135° Glass Cap Railing Corner (1/2–5/8in)
Regular price
$390.38 CAD
Regular price
Sale price
$390.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GR35H3BS
Shipping Weight: 2.55 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.55 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
135
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Overview
- Welded and finished cap rail corner
- Ready-to-install interior slip-fit horizontal corner
- Available in four architectural finishes
- Requires two connector sleeves (not included)
Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass create hairline joint assemblies with straight lengths of CRL Cap Rail. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner. SKU: GR35H3BS.
Each horizontal corner is fabricated, finished, and individually packed. Stainless and brass corners are produced from CRL Premium Cap Rail, welded and finished to match. Standard stainless alloy is 304; stainless 316 and alternate brass alloys are available by special order. Please contact CRL Technical Sales for special orders, quotes, or material questions.
Installation note: Except for the GR15 Series cap rail corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. When using GR15 Series cap rail corners or 5/8" (16 mm) glass, secure the glass with 95CBL Silicone and shims only.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the GR35H3BS interior slip-fit horizontal corner for glass cap rail applications—contact CRL Technical Sales to get a quote or place your order.
