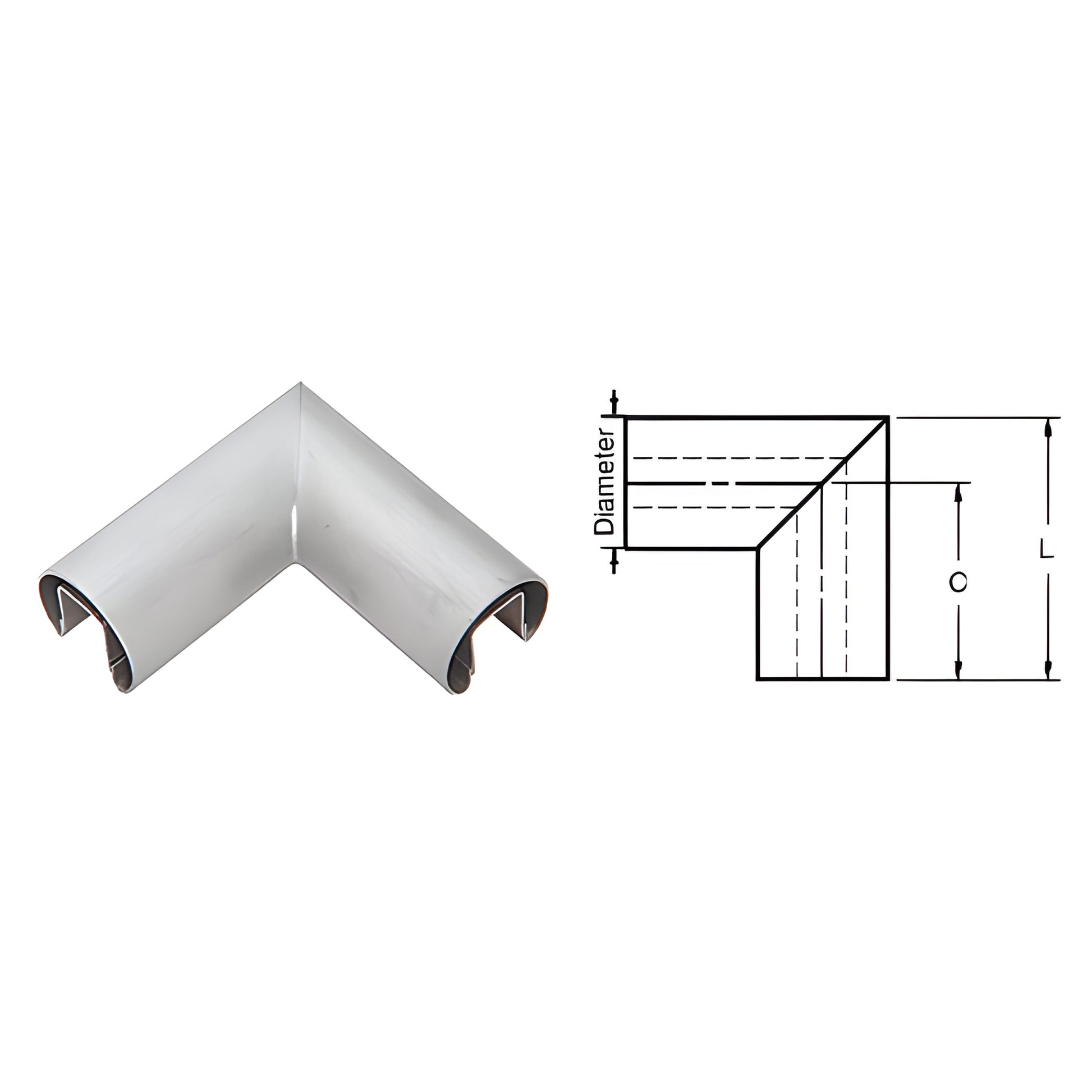

CRL Brushed Stainless 3.5in 90° Corner for 1/2–5/8 Glass Cap Railing
Item# GR35HBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
- Welded, finished, and ready-to-install horizontal corner (SKU: GR35HBS)
- Fits 1/2" (12 mm) or 5/8" (16 mm) glass — interior slip-fit for hairline joint assemblies
- Available in four architectural finishes; standard stainless is 304 (316 available by special order)
- Requires two connector sleeves per corner (not included)
Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) glass provide precise hairline joint assemblies with straight lengths of CRL Cap Rail. Each GR35HBS corner is fabricated, welded, finished, and individually packed. All stainless and brass corners are produced from CRL Premium Cap Rail; brass uses alloy 260. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond where required.
Sealant & securing requirements: For 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass (except GR15 Series). For GR15 Series or 5/8" (16 mm) glass, use 95CBL Silicone and shims only. Two connector sleeves are required for each corner (sold separately).
Product warning: Follow the sealant and securing instructions above to ensure a safe, durable installation.
Please contact CRL Technical Sales for quotes, finish availability, or special-order stainless 316 options. Short lead times on most finishes.
Most shipping weights are approximate. If you need exact weight for shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ready to specify GR35HBS? Contact CRL Technical Sales to get a quote or confirm finish and connector sleeve availability.
Cleaning & Maintenance
