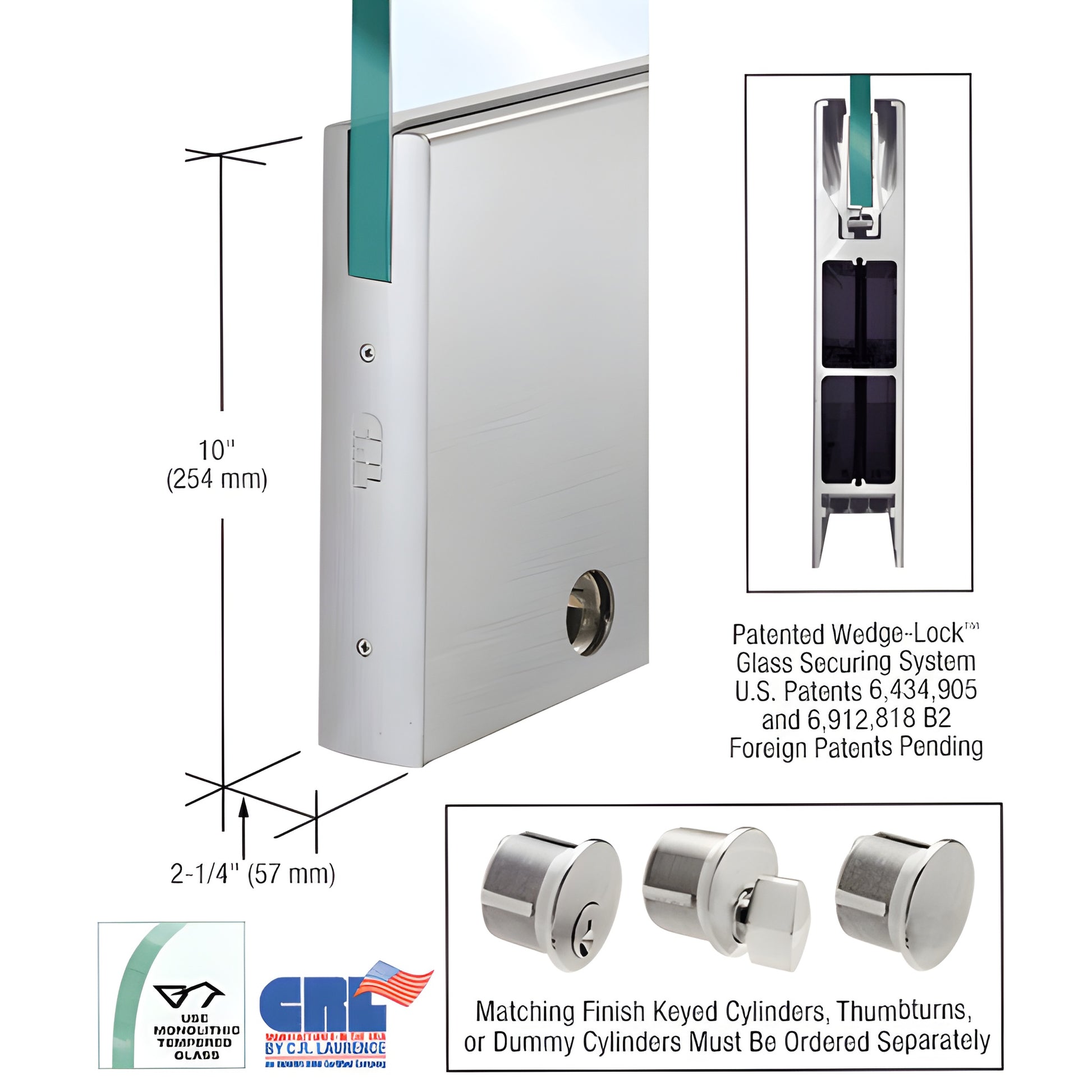

CRL Brushed Stainless Steel 10" Square Door Rail w/ Lock - 3/4" Glass

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SBS34CL) is a high-performance glass door rail designed for commercial and architectural storefronts. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures monolithic tempered glass by applying downward wedge pressure through two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, the angled extrusions lock together in the rail’s groove to create exceptional clamping force — over 900 lbs. in the 9" (228.6 mm) corner rail and proportionally greater force in full-length rails like the 35-3/4" (908 mm) model.

NOTE: Actual Product Height: 10” (254 mm)

The Wedge-Lock® system delivers rapid on-site installation and durable glass retention:

• Fast installation — experienced installers can prepare a door in under ten minutes
• Comes fully fabricated and ready-to-install with End Caps installed
• Adjustable Door Alignment System standard on top and bottom rails — +/-1/8" (3 mm) without removing the door
• Low-profile adjustable slide permits non-standard pivot setback and fabrication for vertically out-of-square openings
• Models accept 3/8" to 3/4" (10 to 19 mm) glass; internal components remain in place during installation
• Rigid single-component housing resists shifting and long-term adjustment loss
• Durable glass-securing pads engineered for longevity in extreme environments

Adjustment after installation is simple: remove the End Cap to access three socket head cap bolts — center bolt secures the slide; two outer bolts adjust the slide +/-1/8" (3 mm).

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Arms, pivots, closer arms, and floor or overhead pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in multiple standard architectural finishes and quoted in custom finishes and widths on request. Rail specifications, templates, and hardware
