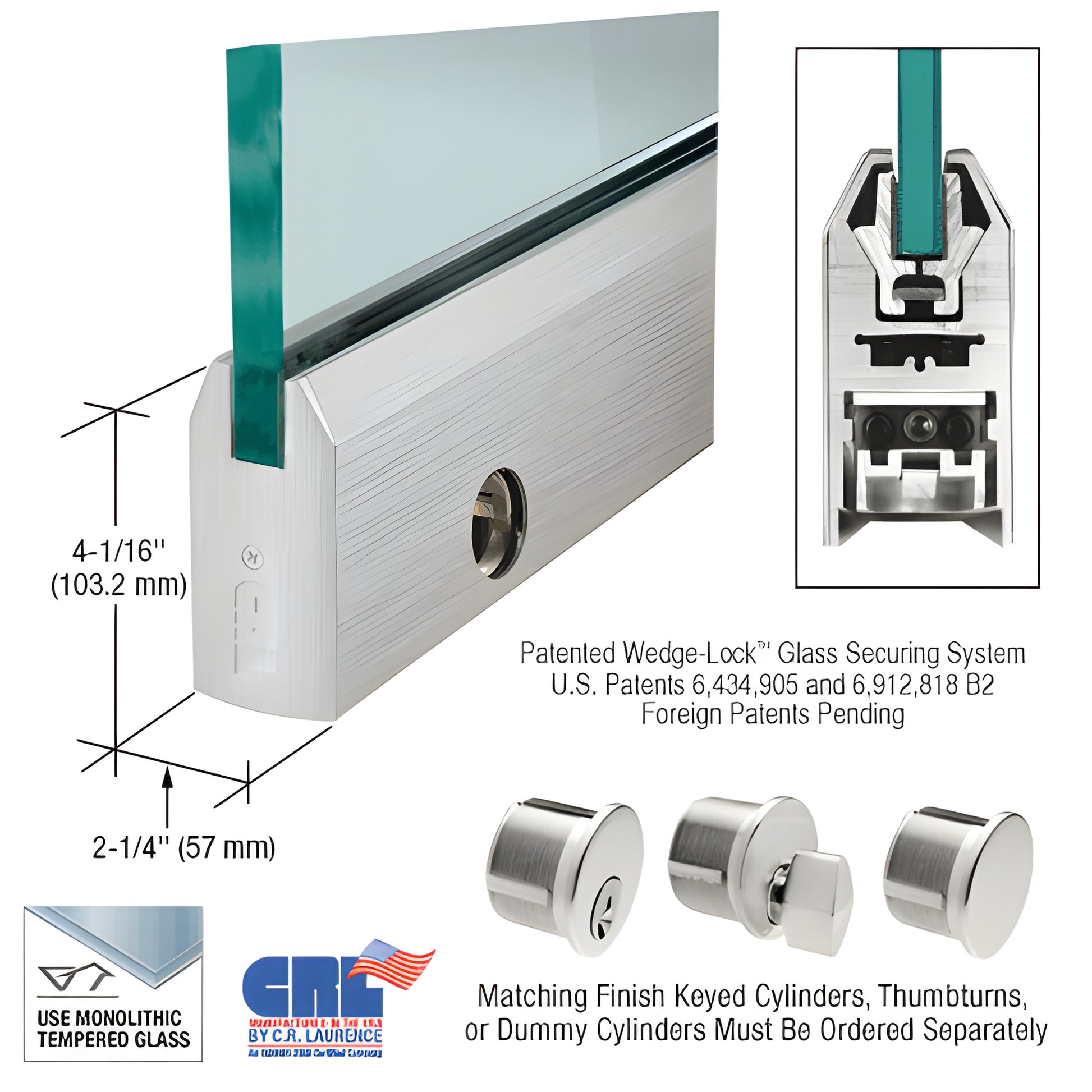

CRL Brushed Stainless 3/4" Glass 4" Tapered Door Rail w/ Lock - Custom Length

• Custom Length for 3/4" Glass (19 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TBS34CL) is engineered for secure, high-performance commercial glass doors. The system features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1), a patent-backed wedge action that applies downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar to lock monolithic tempered glass in place. This design produces exceptional clamping force (more than 900 lbs. in the 9" Corner Rail) for reliable, long-lasting glass retention in door rails and full-length 35-3/4" (908 mm) rails. The Wedge-Lock® Glass Securing System delivers faster installations for commercial storefronts and interior glass doors—experienced installers can prepare a door in under ten minutes. CRL door rails ship completely fabricated and ready-to-install with End Caps installed. After rail installation, attach the door arm or pivot (ordered separately) to the preassembled adjustable door alignment slide. The Adjustable Door Alignment System allows 1/8" (3.2 mm) in/out adjustment on both top and bottom rails without removing the door, enabling fine alignment in vertically out-of-square openings. To access adjustments, remove the End Cap to expose three socket head cap bolts: the center bolt secures the slide, and the two outer bolts provide the 1/8" adjustment. The low-profile adjustable slide permits pivot placement other than the American Standard setback of 2-3/4" (69.8 mm). Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass — ideal for 3/4" tempered glass doors
• Rigid single-component housing resists shifting and maintains long-term alignment
• Internal components remain in place during installation for faster setup
• Durable glass securing pads designed for extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block. Arms, pivots, closer arms, and keyed cylinders/thumbturns must be ordered separately to meet specific job requirements. CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
