CRL Brushed Stainless 3.5" 90° Glass Cap Railing Corner 1/2"-5/8"
Item# GR35VBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
- Ready-to-Install
- Four Architectural Finishes
- Requires Two Connector Sleeves (Not Included)
SKU: GR35VBS

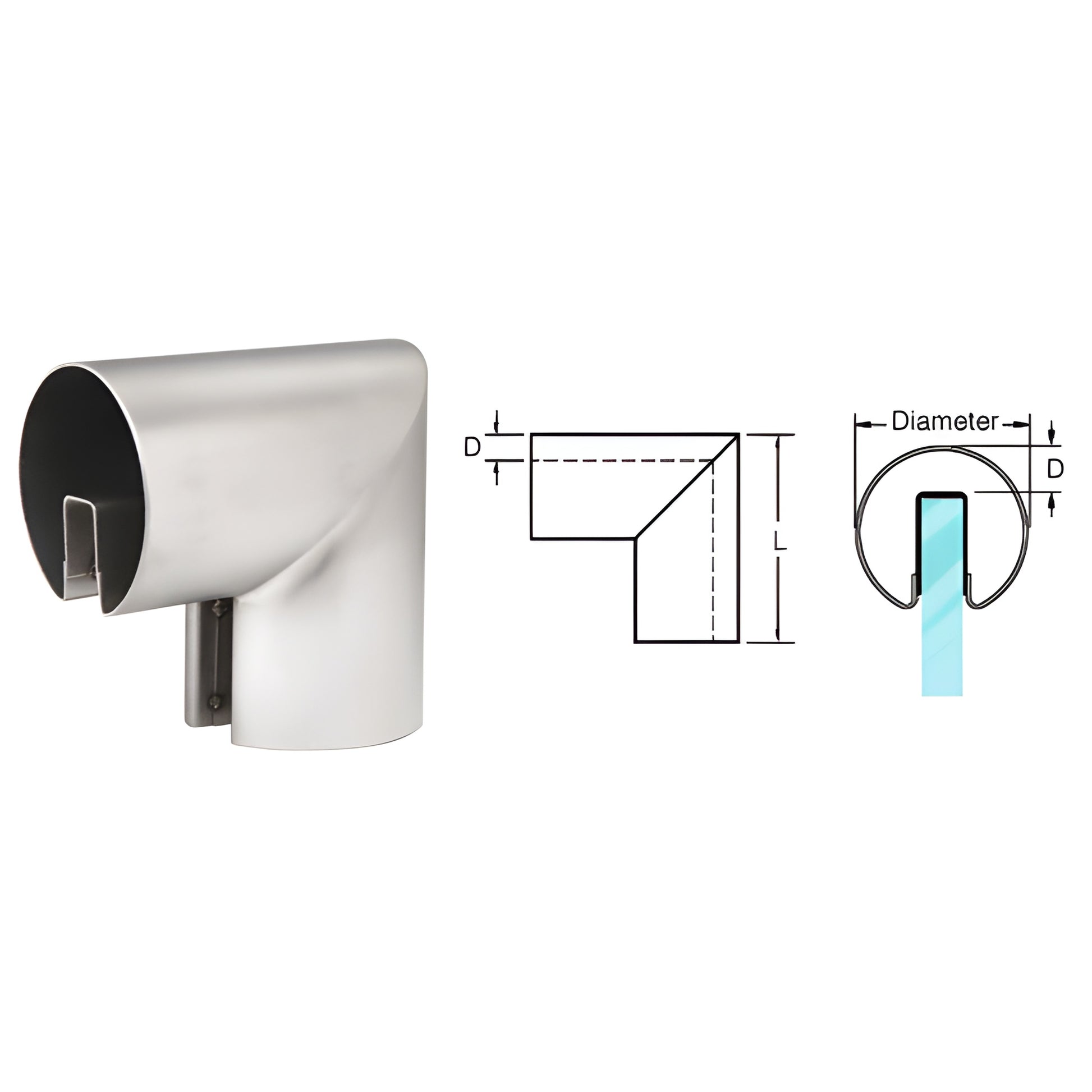

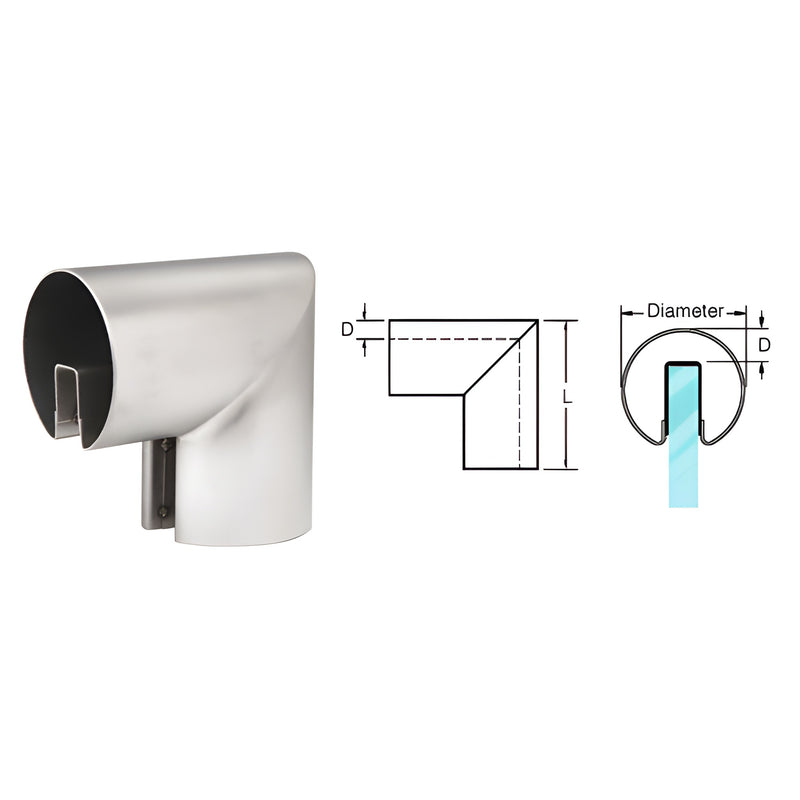

Interior slip-fit Vertical Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass provide hairline joint assemblies with straight lengths of CRL Cap Rail. These interior slip-fit vertical corners are ideal for architectural glass railing and glass partition applications where a precise, clean joint is required. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required per corner (not included).
Each Vertical Corner is fabricated, finished, and individually packed. All stainless and brass corners are made from CRL Premium Cap Rail, welded and finished to match for consistent appearance. Standard stainless alloy is 304; stainless 316 is available on special order. Brass alloy 260 is standard.
Please contact CRL Technical Sales for pricing, finish availability, or project quotes.
Installation Note: Except for GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. For GR15 Series Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.
Product Warning:
Dimension is used to calculate glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to ordering by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Highlight: CRL Premium Cap Rail vertical corners deliver precision hairline joints for 1/2" or 5/8" architectural glass—available in four finishes and individually packaged for quick installation. Contact CRL Technical Sales to order or request a quote.
