CRL Brushed Stainless 3/8" Glass Door Rail Lock, Tapered Custom Length

• Custom length for 3/8" (10 mm) tempered glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

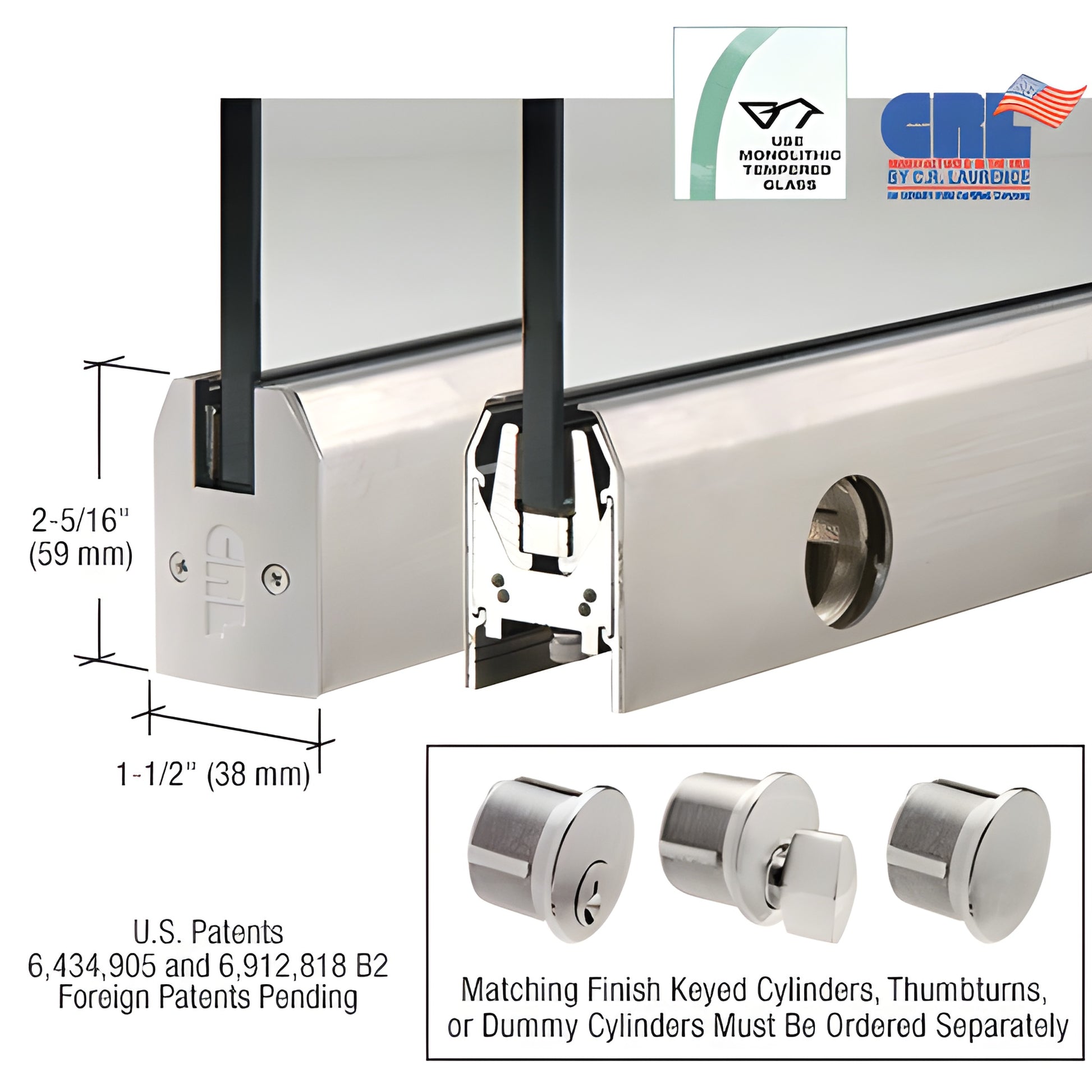

Our CRL Low Profile Door Rail (SKU DR2TBS38CL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and integrates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails ship complete with end caps, installation instructions, and adjustment wrenches for fast field installation.

NOTE: Actual product height: 2-5/16” (59 mm).

The Wedge-Lock® system offers secure attachment and the fastest installation time among door rail systems—experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated and ready-to-install; after mounting the rail, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System lets you fine-tune the door 1/8" (3 mm) toward or away from the jamb without removing the door. This adjustment is standard on both top and bottom rails. To access adjustments after installation, remove the end cap to reveal three socket head cap bolts: the center bolt secures the slide, and the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide enables pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), allowing fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® door rails:

• Models accept 3/8" to 3/4" (10 or 19 mm) glass
• Rigid single-component housing resists shifting and long-term misalignment
• No internal component removal required before installation
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® door rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® door rails come in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door
