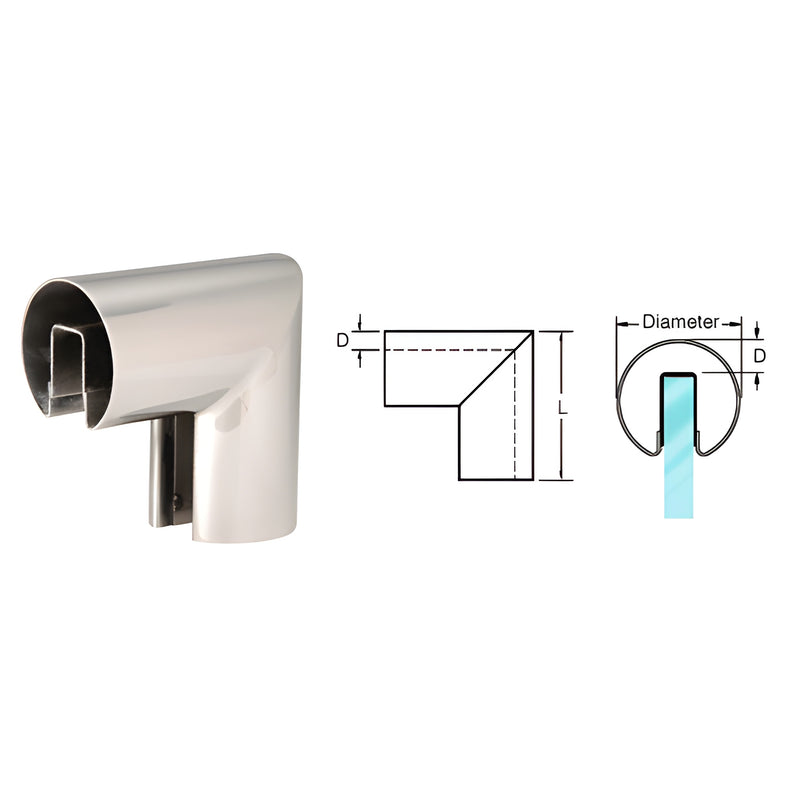

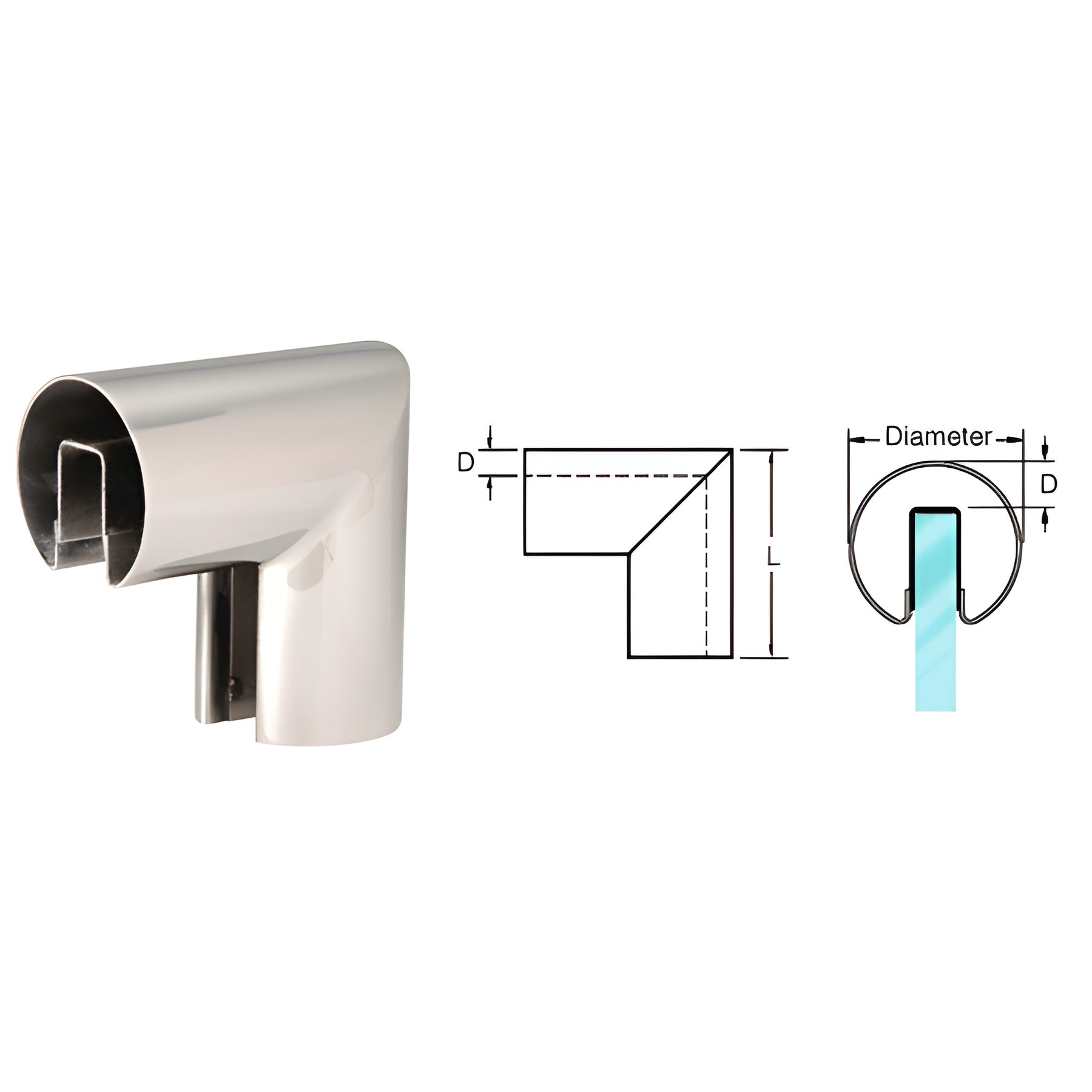

CRL Brushed Stainless 3" 90° Corner for 1/2-5/8" Glass Cap Railing

• Ready-to-Install interior slip-fit vertical corners (SKU: GR30VBS)
• Available in Four Architectural Finishes
• Requires Two Connector Sleeves (sold separately)

Interior slip-fit Vertical Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass provide hairline joint assemblies with straight lengths of CRL Cap Rail—ideal for glass railing cap rail systems and frameless glass applications. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner.

Each Vertical Corner is fabricated, finished, and individually packed. All stainless and brass corners are made from CRL Premium Cap Rail, welded and finished to match for a seamless cap rail corner connection. Standard stainless alloy is 304; stainless 316 is available by special order. Brass uses alloy 260 as standard. These features make CRL vertical corners suitable for architectural glass cap rail installations requiring durable, factory-finished joints.

Please contact CRL Technical Sales for specification assistance or a quote.

Installation Note: Except for the GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.

Product Warning:

Dimension is used to calculate the glass size. Add the clearance you require or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.

Stainless Steel Advisory:

For pricing, lead times, or technical questions about the GR30VBS vertical cap rail corners, contact CRL Technical
