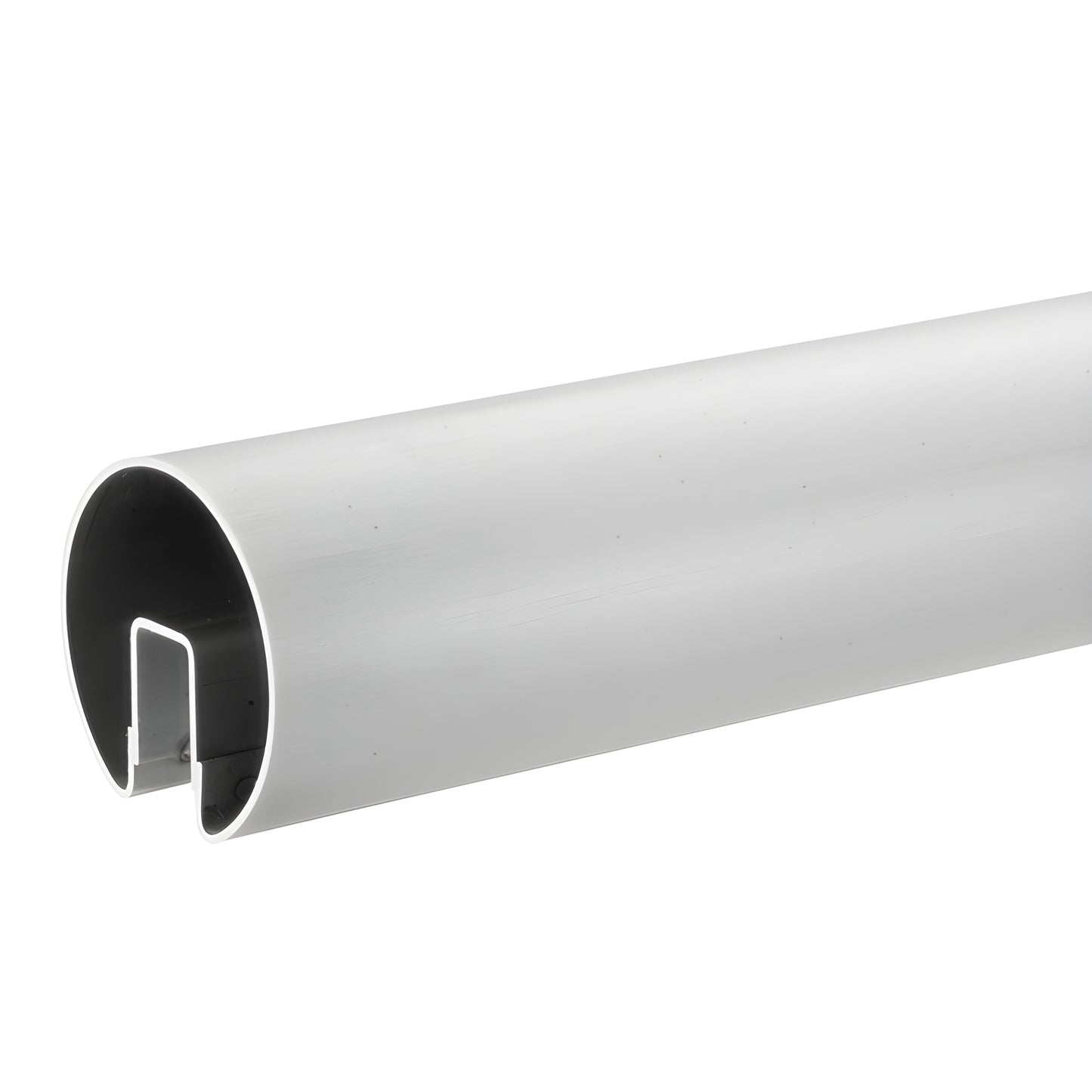

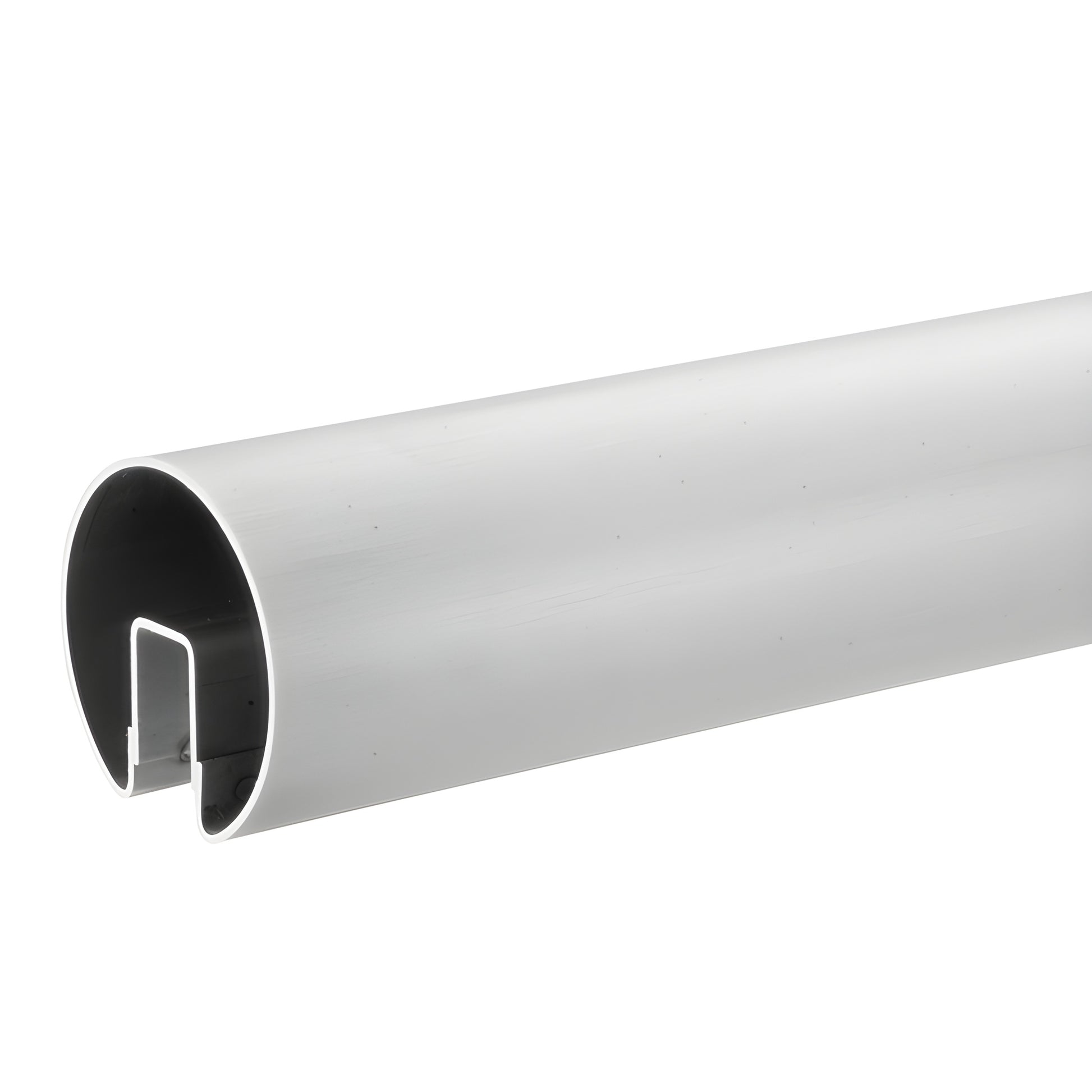

CRL Brushed Stainless 3 in Cap Rail 168 in for 1/2 & 5/8 Glass Shower

• Bump-formed and welded cap rails available in 120" (3.05 m) and 168" (4.27 m) stock lengths in seven diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four architectural finishes for design flexibility
• Connects to a variety of fabricated corners and end caps
• Cut-to-size or custom fabricated lengths available
• Stainless standard: Alloy 304; Alloy 316 available in two sizes — ideal for marine or coastal applications
• Brass standard: Alloy 260
• Use sleeve No. GR30CSS for secure joins

All CRL Premium Cap Railings (SKU: GR30BS14) are precision-formed to maintain uniform diameters for smooth hairline transitions at splices, corners, and end caps. An internal channel is welded every 3" (76.2 mm) to increase strength and stability for fabrication—making these cap rails a reliable choice for commercial and residential glass railing systems. Use CRL 32629 Metal Contact Cement to ensure a permanent bond at all connections.


Use the Connector Sleeves to join cap rails. NOTE: With 3/4" (19 mm) glass, use GR7PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. With 5/8" (16 mm) glass, secure with 95CBL Silicone and shims only.

Stainless Steel Advisory:

Designed for durable, precision-fit glass railing projects—order SKU GR30BS14 or contact CRL Customer Service to request exact weights, custom lengths, or fabrication assistance.
