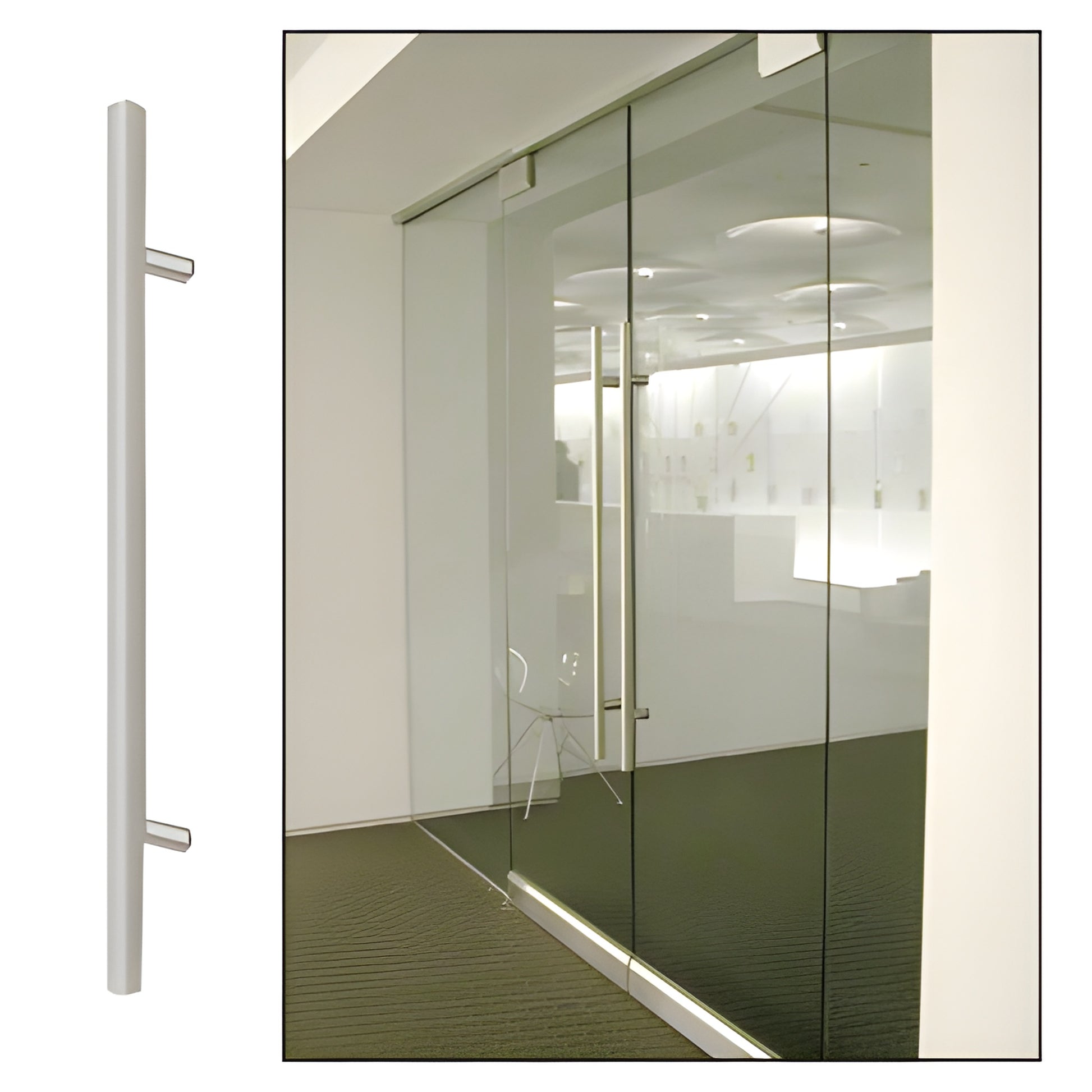

• 30LPSBS brushed stainless steel straight ladder pull, 1-1/4 in dia, 30 in overall, mid-posts, shown mounted on glass door.
1 1

CRL

CRL 30 in Brushed Stainless Ladder-Style Single-Sided Door Pull

CRL 30 in Brushed Stainless Ladder-Style Single-Sided Door Pull

$280.35 CAD
$280.35 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 30LPSBS
Shipping Weight: 4.63 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Single Sided
Overall Length
30 in. (762 mm)
Style Washers
No

Overview

  • Five sizes: 24" to 48" overall height (610 mm to 1.22 m)
  • Finishes: Brushed Stainless Steel, Polished Stainless Steel, and Matte Black
  • Custom lengths, designs, and finishes available on special order
  • Click Here for custom pull order forms
  • Made of 304 grade stainless steel (1-1/4" / 32 mm diameter tubing)

CRL Straight Style Ladder Pulls (SKU: 30LPSBS) include two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) thick tempered glass. Fasteners for 1-3/4" (44 mm) wood or aluminum doors are available separately. Custom ladder pulls can be ordered with additional mid-posts for added support; maximum spacing between mid-posts is 72" (1.83 m). These straight-style ladder pull handles are ideal as heavy-duty glass door pulls and commercial door hardware for storefronts, interior sliding glass doors, and office entrances.


SPECIFICATIONS:
3/8" to 3/4" (10 to 19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors

CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing — durable, corrosion-resistant commercial door pull construction

GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes


NOTE:

Click Here to view our back-to-back ladder pulls in all available sizes and finishes.


Most shipping weights are approximate and have not been verified. If you need exact weights to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.

Stainless Steel Advisory:
Stainless steel is highly corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For maintenance and care details, see the Stainless Steel Disclaimer in the Technical References section below.
