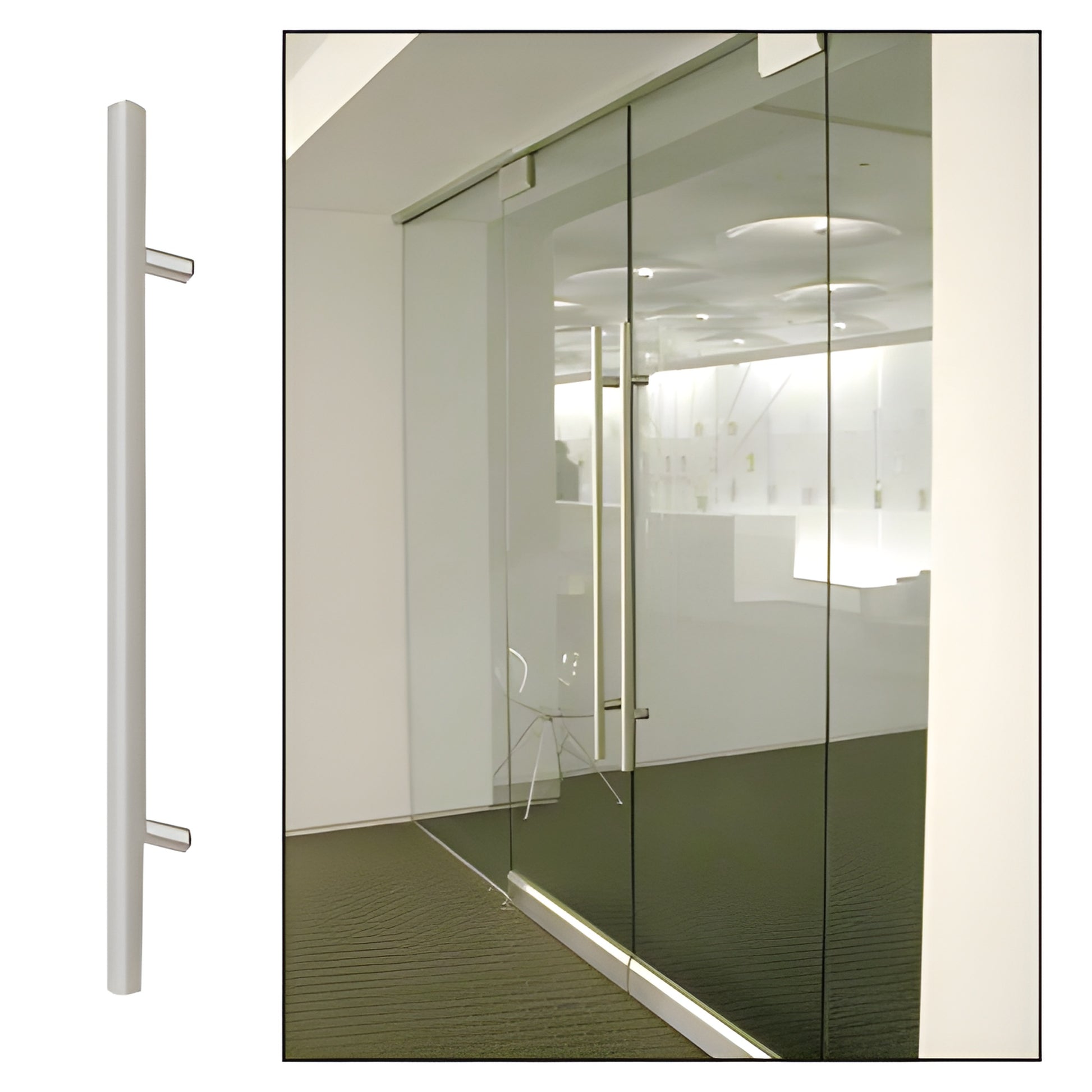

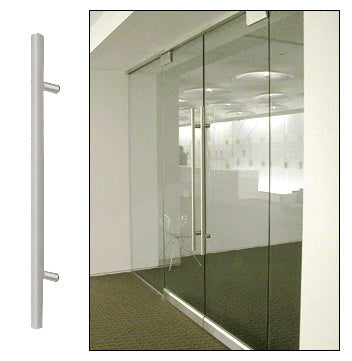

CRL 36 in Brushed Stainless Ladder-Style Single-Sided Door Pull
CRL 36 in Brushed Stainless Ladder-Style Single-Sided Door Pull
Regular price
$311.50 CAD
Regular price
Sale price
$311.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 36LPSBS
Shipping Weight: 5.556 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.556 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
24 in. (610 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Single Sided
Overall Length
36 in. (914 mm)
Style Washers
No
Overview
- Five sizes: 24" to 48" overall height (610 mm to 1.22 m)
- Finishes: Brushed Stainless Steel, Polished Stainless Steel, Matte Black
- Custom lengths, designs, and finishes available on special order — custom pull order forms
- Material: 304 grade stainless steel tubing
CRL Straight Style Ladder Pulls (SKU: 36LPSBS) — heavy-duty back-to-back ladder pull designed for commercial glass doors and interior/exterior applications. Supplied with two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) tempered glass. Fasteners for 1-3/4" (44 mm) wood or aluminum doors are sold separately. Custom ladder pulls can include additional mid-posts for extra support. Maximum mid-post spacing: 72" (1.83 m).
SPECIFICATIONS:
- Glass: 3/8" to 3/4" (10 to 19 mm) thick tempered glass; 1-3/4" (44 mm) thick aluminum or wood doors (F41SKBS fasteners sold separately)
CONSTRUCTION:
- 1-1/4" (32 mm) diameter 304 grade stainless steel tubing
GLASS FABRICATION:
- Requires two 5/8" (16 mm) diameter holes
NOTE:
View all back-to-back ladder pulls in available sizes and finishes.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the durable 36LPSBS back-to-back ladder pull for glass doors today — contact CRL or your local distributor to request a quote.
