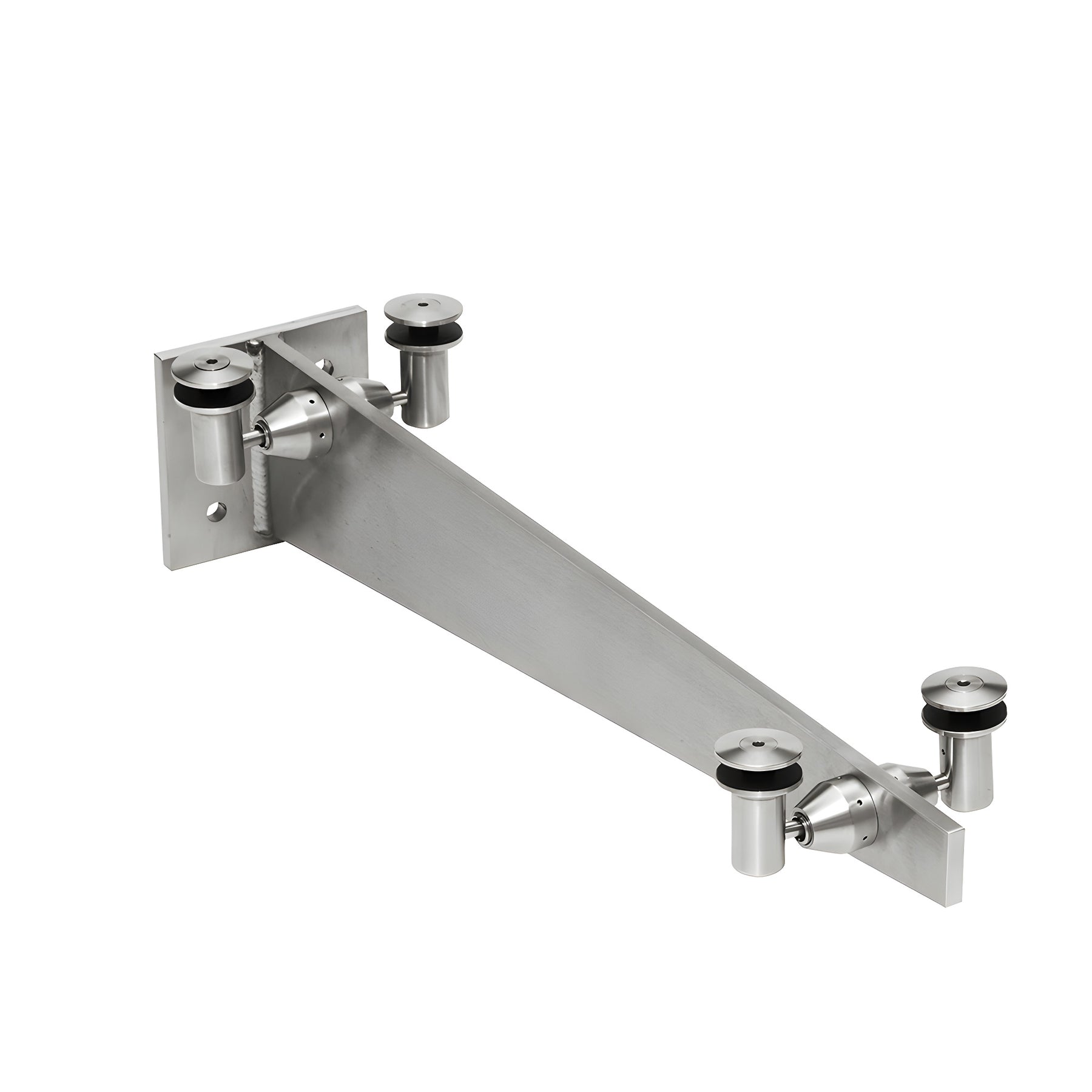

CRL 36 in Brushed Stainless Universal Wall-Mount Glass Awning Bracket
Item# GAB36BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 9/16 in. (15 mm) |
| Glazing | Type Monlithic Tempered, Laminated |
| Length 36 in. | (914.4 mm) |
| Material | Stainless Steel (Alloy 304) |
| Mounting | Application Wall |
- Used on flat or curved top segmented glass awnings
- Fabricated from 304 alloy stainless steel (GAB36BS)
- Available in brushed or polished finishes
- Custom angles and 45° corner brackets available by special order
- Designed for 9/16" (14 mm) laminated glass with SGP interlayer
These CRL Universal Wall Mount Glass Awning Brackets (SKU: GAB36BS) combine contemporary styling with precision engineering for commercial and residential glass awnings. Each bracket features four swiveling glass attachments—each requiring one 3/4" (19 mm) hole in the glass—and adjusts up to 16° (8° in any direction) to accommodate segmented, bent, or slightly warped glass. Constructed from durable 304 stainless steel, these brackets resist corrosion and are ideal for long-lasting exterior glass awning installations.
For special sizes, custom angles, or unique configurations contact CRL Architectural and Ornamental Metals Technical Sales Department.
Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
Order GAB36BS now or contact us for custom options and technical assistance.
CAD Drawings - pdf
