CRL 4 in Brushed Stainless Double-Sided Door Header, Custom Length

• Available in 4" or 4-1/2" widths for 3/8" or 1/2" glass
• Offered as one- or two-pocket configurations and as single- or double-sided headers
• Multiple finish options for a coordinated storefront or interior glass system

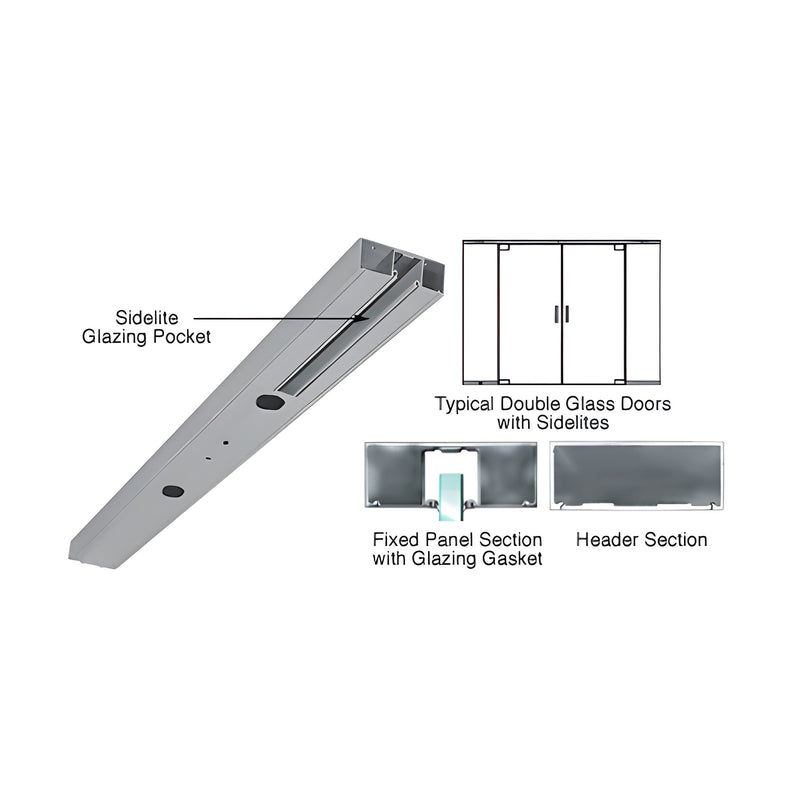

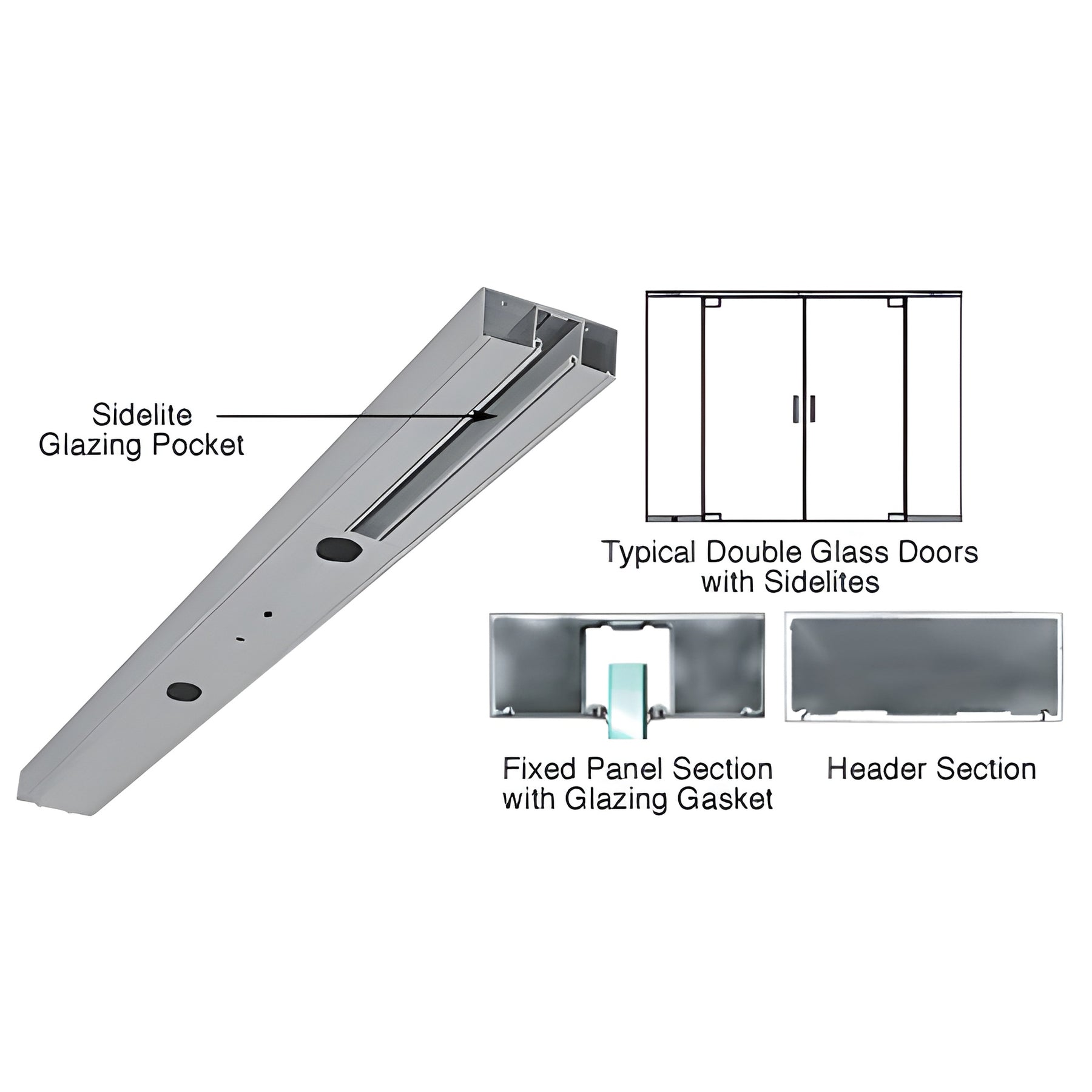

When installations require doors with sidelites, the DCH41DBSC header simplifies fabrication for continuous headers with fixed sidelites. CRL’s patented snap-in glazing insert provides a glazing pocket that snaps into either side of the door section, eliminating the need for a different extrusion next to the header. This enables a single continuous header with the center section fabricated for operable doors and the outer sections fabricated for fixed sidelites—ideal for storefronts, commercial glass doors, and storefront header assemblies.

Glass is secured with the included top-load roll-in gasket for reliable glazing retention. To anchor the bottom of fixed sidelites, use CRL’s UC38 Series U-Channel, available in five finishes: Clear Anodized, Duranodic Bronze, Polished Stainless Steel, Brushed Stainless Steel, and Polished Brass. For technical assistance or finish coordination, contact the CRL Technical Sales Department.

Stainless Steel Advisory:

SKU: DCH41DBSC

Need help specifying this glass door header for sidelites? Contact CRL Technical Sales or add DCH41DBSC to your cart to get started.
