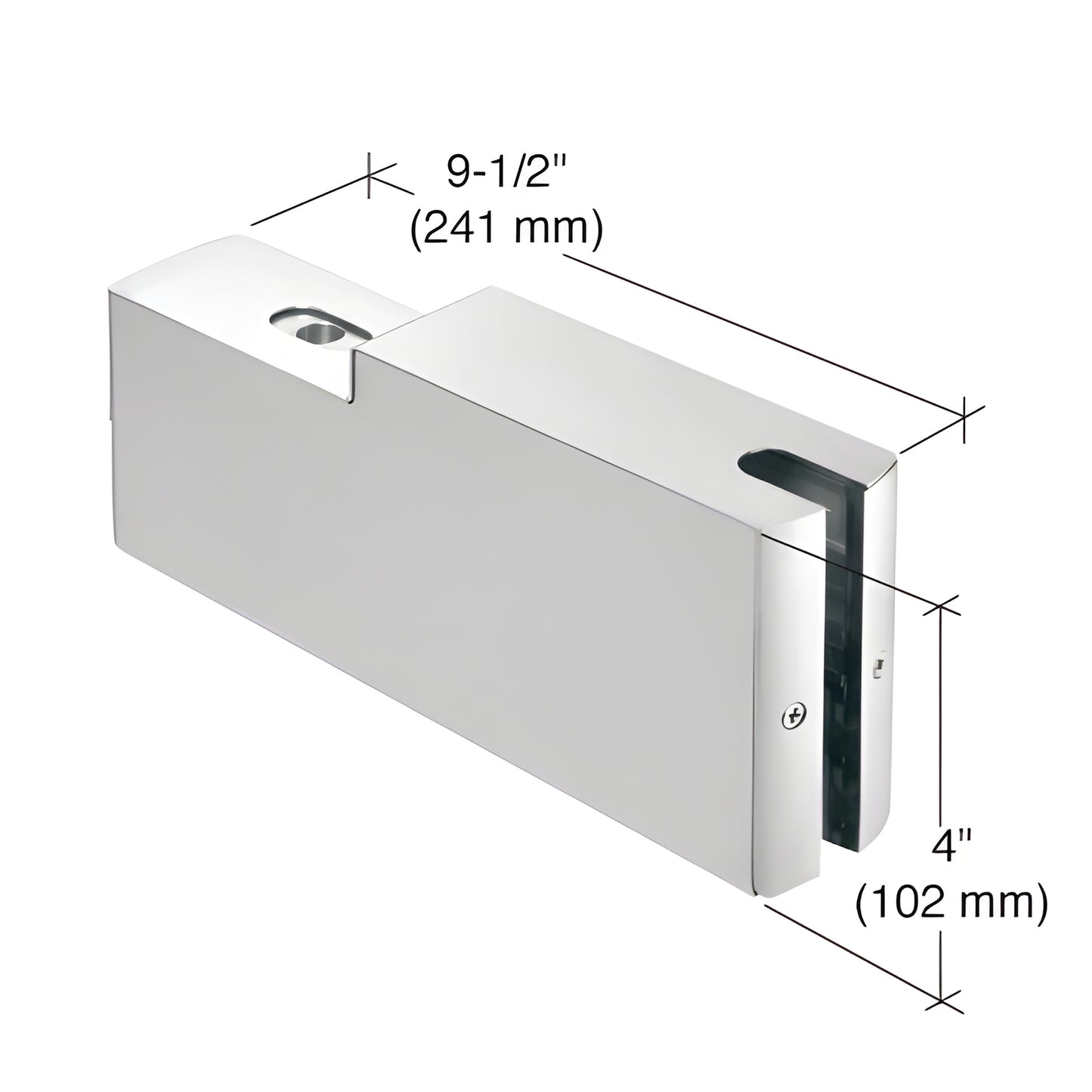

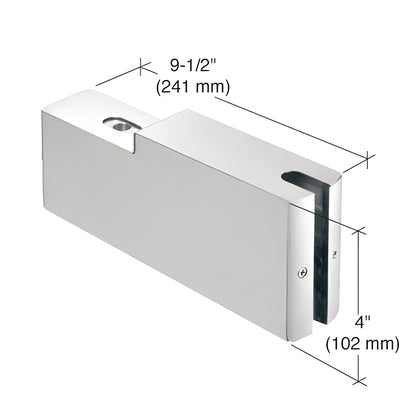

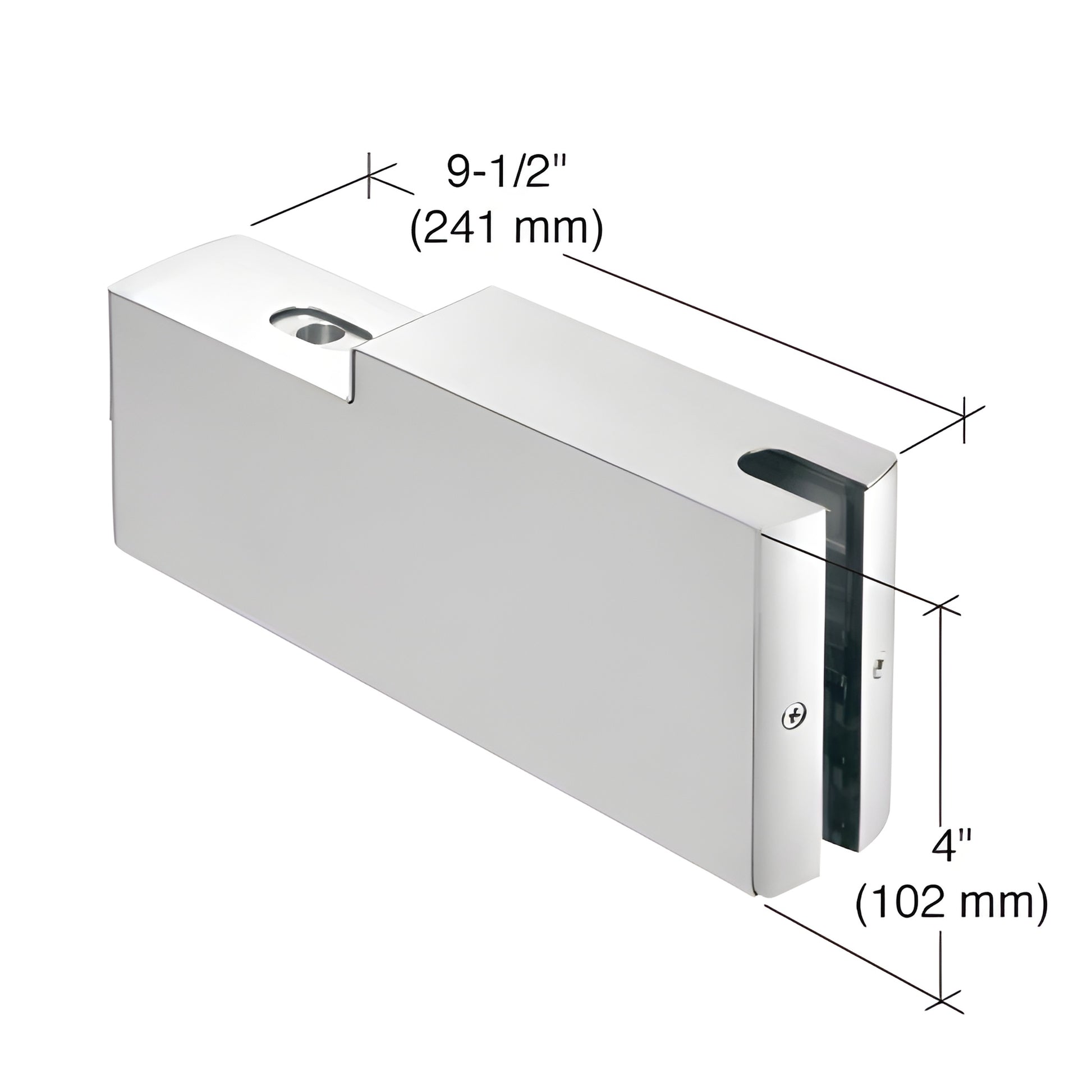

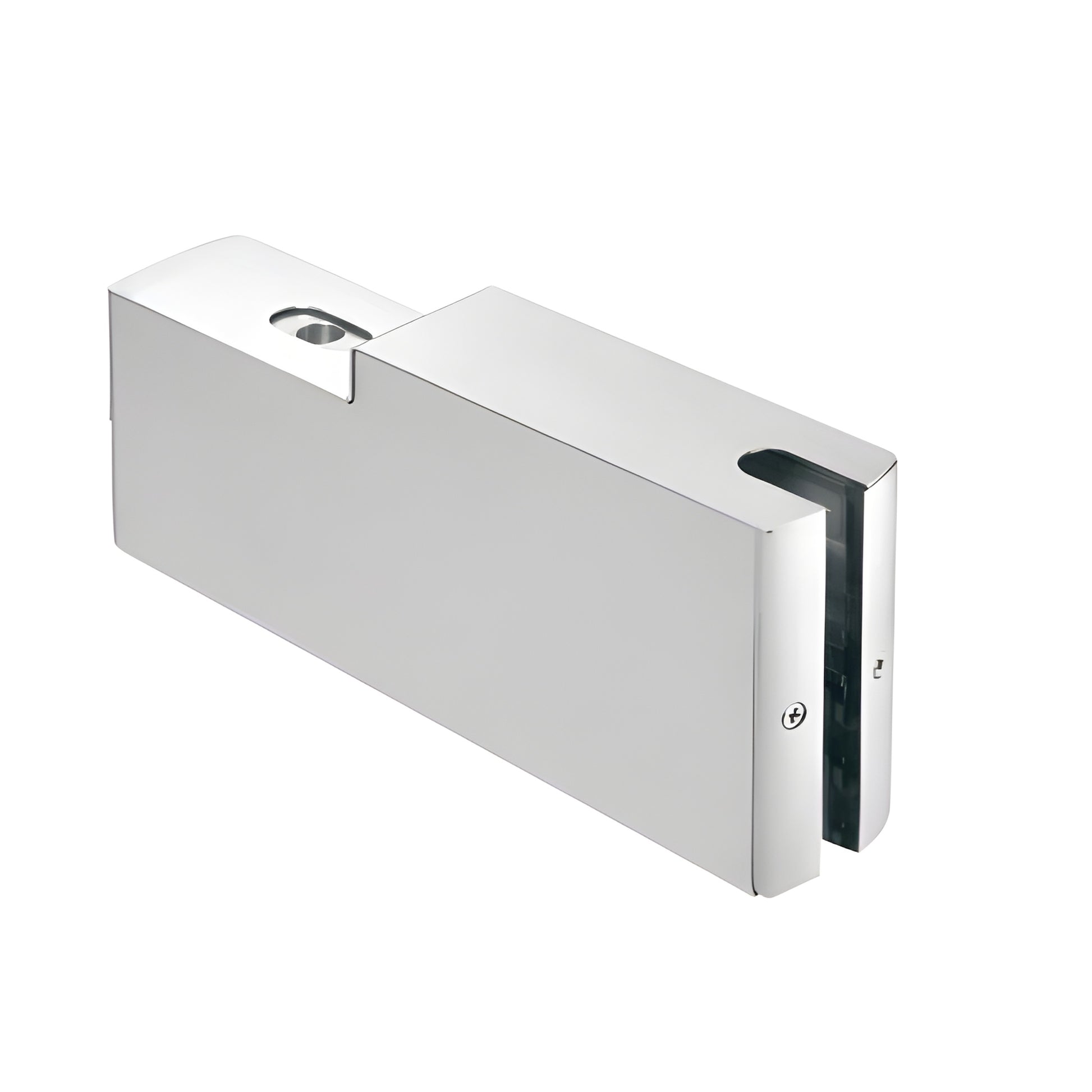

CRL Brushed Stainless Top Patch Glass Gate Rail 9-1/2" for 3/8" Glass
CRL Brushed Stainless Top Patch Glass Gate Rail 9-1/2" for 3/8" Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DR4SBS38AGP
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Hardware Preparation
All Glass Transom Brackets
Height
4-1/16 in. (103 mm)
Length
9-1/2 in. (241 mm)
Material
Aluminum
Overview
- Top Patch With Notch for CRL AGT2 and AGT3 Pivot Brackets
- Patented Wedge-Lock® glass-securing system lets you adjust and align gates without removal
- Custom patches available upon request
- For 3/8" (10 mm) tempered glass — optimized for frameless glass gate installations
Our CRL GRS 9-1/2" Dry Glaze Top Patch Gate Rails (SKU: DR4SBS38AGP) are available in Square and Tapered profiles and fit 3/8" or 1/2" (10 or 12 mm) tempered glass. These dry-glaze top patch rails are ideal for commercial and residential frameless glass gates where clean lines and secure glass fastening are required.
ORDERING INFORMATION:
• All rails include the standard Kwik-Adjust™ pivot alignment system for fast field adjustments. Closer arms and floor or overhead pivots must be ordered separately.
• End caps are included on 9-1/2" patch gate rails; for replacement end caps, order DREC4.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Ready to order or need a custom patch? Contact CRL Customer Service to confirm fitment and lead times.
