CRL Brushed Stainless 4" x 120" Length Square Sidelite Rail
CRL Brushed Stainless 4" x 120" Length Square Sidelite Rail
Regular price
$1,205.02 CAD
Regular price
Sale price
$1,205.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR4SBS3812SL
Shipping Weight: 24.7 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 24.7 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Brushed Stainless Steel |
| Floor Mount Saddle Included FMS | 2SA |
| Glazing Thickness | 3/8 in.,1/2 in. (10 mm,12 mm) |
| Height 4-1/16 in. | (103 mm) |
| Length 120 in. | (3048 mm) |
| Width 2 in. | (50 mm) |
Overview

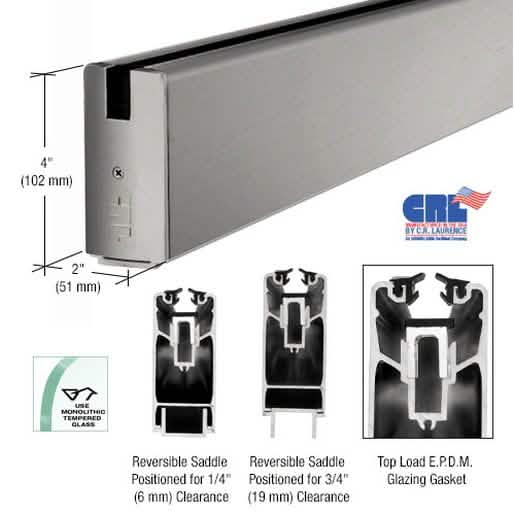

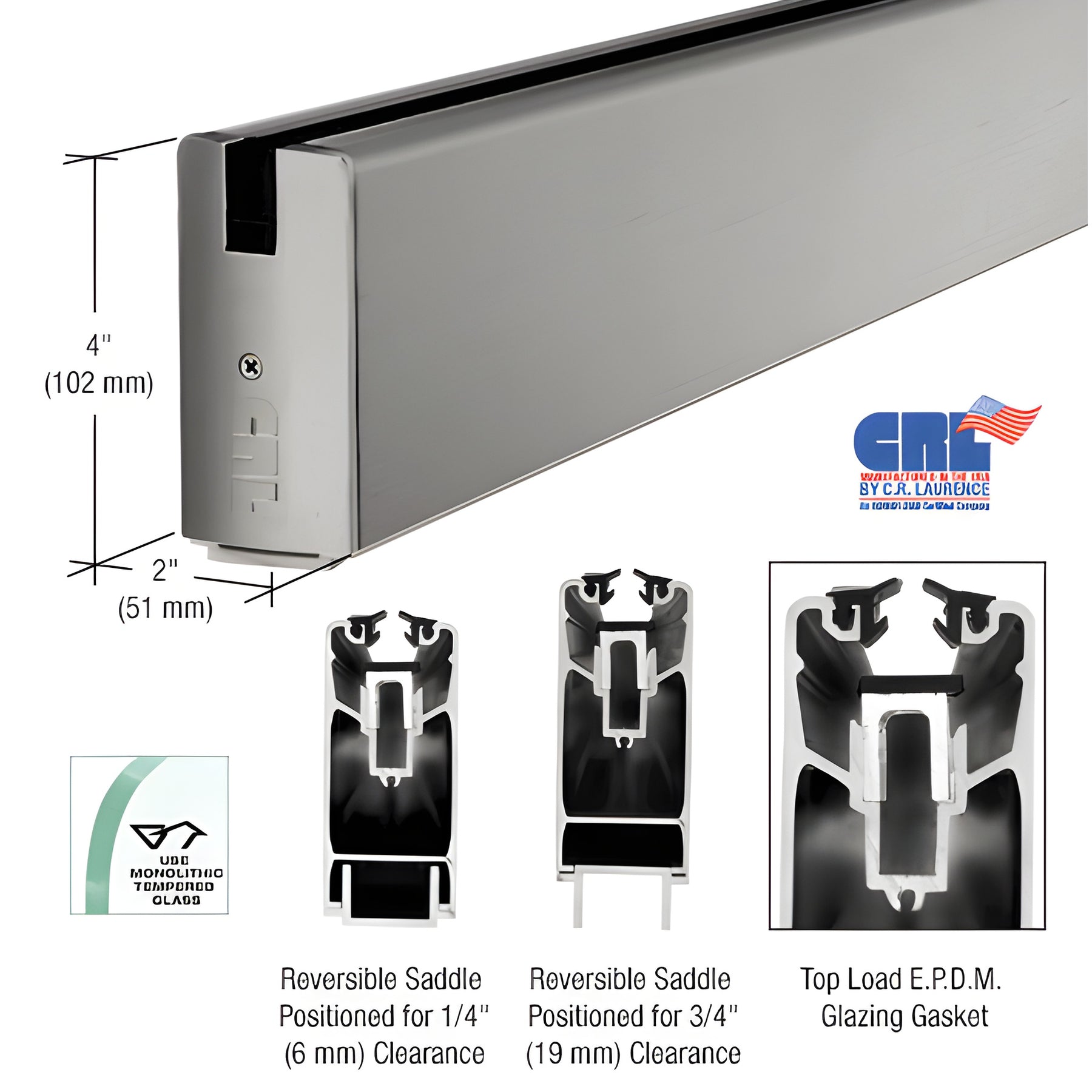

The CRL 4" (102 mm) Square Sidelite Rail is an ideal choice for securing fixed glass panels in office and storefront applications.
Designed to match our door rails, it ensures a uniform sightline and can be paired with smaller U-Channels for versatility.
Installation is simplified with our 'lift and drop' method, utilizing 4" (102 mm) Aluminum and Neoprene Setting Blocks, while glass is secured using a Top Load EPDM Roll-in Glazing Gasket.
Available in multiple finishes and lengths, these Sidelite Rails provide a customized fit for floor-mounted and threshold doors, ensuring a cohesive and stylish appearance.
For best results, pair with matching finish End Caps and order separately for 3/8" (10 mm) glass glazing.
Note: Stainless Steel Cladded Aluminum requires a cold saw for cutting to avoid finish damage.
For further details, contact CRL Technical Sales.
Designed to match our door rails, it ensures a uniform sightline and can be paired with smaller U-Channels for versatility.
Installation is simplified with our 'lift and drop' method, utilizing 4" (102 mm) Aluminum and Neoprene Setting Blocks, while glass is secured using a Top Load EPDM Roll-in Glazing Gasket.
Available in multiple finishes and lengths, these Sidelite Rails provide a customized fit for floor-mounted and threshold doors, ensuring a cohesive and stylish appearance.
For best results, pair with matching finish End Caps and order separately for 3/8" (10 mm) glass glazing.
Note: Stainless Steel Cladded Aluminum requires a cold saw for cutting to avoid finish damage.
For further details, contact CRL Technical Sales.
