CRL Brushed Stainless 4" x 120" Length Square Sidelite Rail for 3/4" Glass
CRL Brushed Stainless 4" x 120" Length Square Sidelite Rail for 3/4" Glass
Regular price
$1,667.09 CAD
Regular price
Sale price
$1,667.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR4SBS34SL
Shipping Weight: 35.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 35.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Finish/Color | Brushed Stainless Steel |
Floor Mount Saddle Included FMS | 3SA |
Glazing Thickness | 3/4 in. (19 mm) |
Height 4-1/16 in. | (103 mm) |
Width 1-9/16 in. | (40 mm) |
Overview

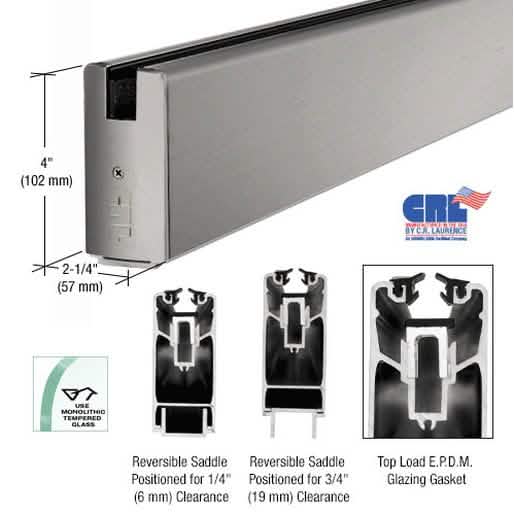

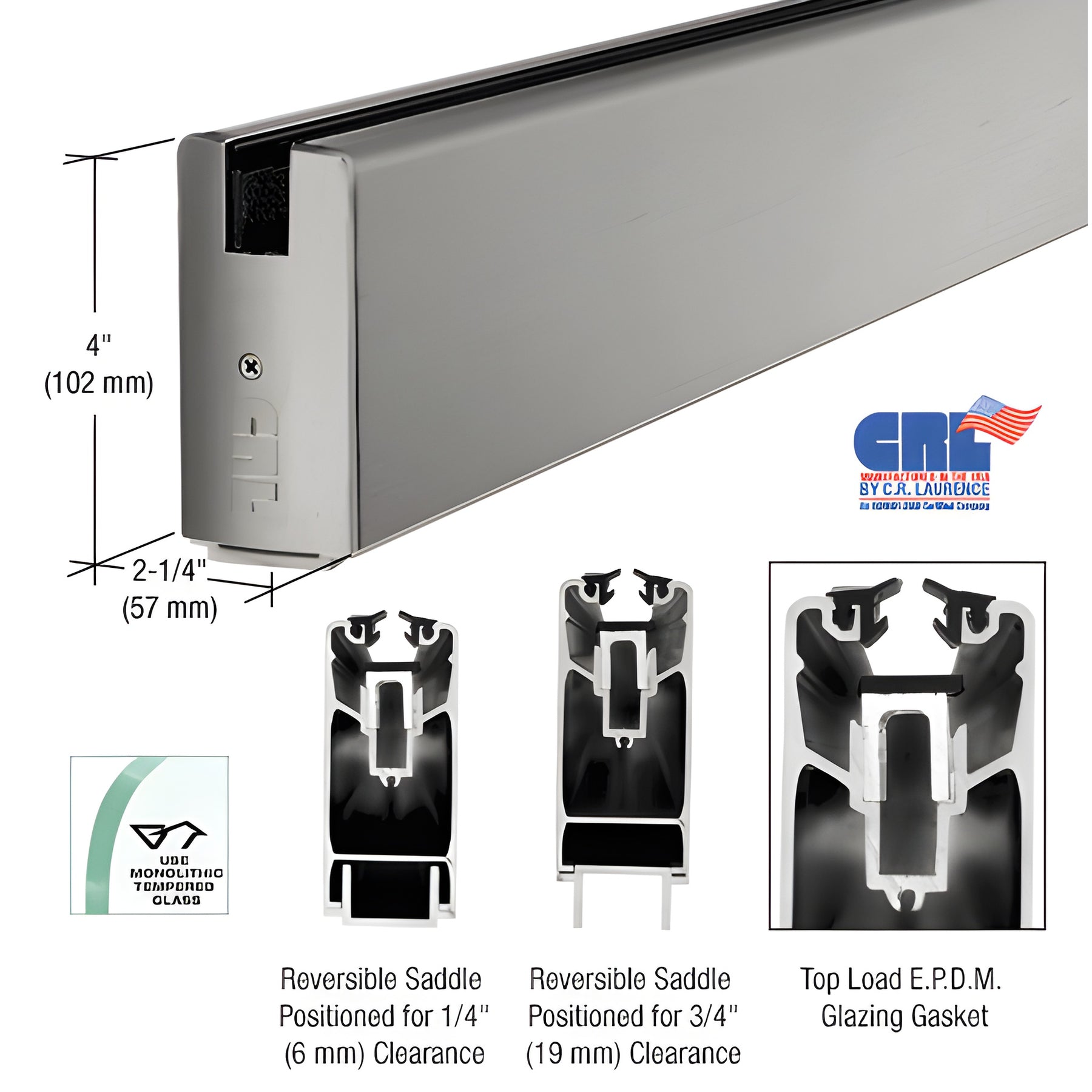

The CRL 4" (102 mm) Square Sidelite Rail is an ideal choice for office and storefront applications, designed to seamlessly secure fixed glass panels.
Its reversible extruded saddle accommodates door clearances of 1/4" or 3/4" (6 or 19 mm), ensuring a flawless sightline when paired with our Door Rails.
Ready-to-ship models are available from CRL's extensive inventory, and the rails can be effortlessly installed using monolithic tempered glass with a 'lift and drop' method, complemented by our Aluminum and Neoprene Setting Blocks.
Offered in multiple finishes and lengths, including 120" (3.05 m) and extra-long 240" (6.10 m) options, these rails promise durability and aesthetic appeal for any project, while also providing easy installation with our Top Load EPDM Roll-in Glazing Gasket.
Its reversible extruded saddle accommodates door clearances of 1/4" or 3/4" (6 or 19 mm), ensuring a flawless sightline when paired with our Door Rails.
Ready-to-ship models are available from CRL's extensive inventory, and the rails can be effortlessly installed using monolithic tempered glass with a 'lift and drop' method, complemented by our Aluminum and Neoprene Setting Blocks.
Offered in multiple finishes and lengths, including 120" (3.05 m) and extra-long 240" (6.10 m) options, these rails promise durability and aesthetic appeal for any project, while also providing easy installation with our Top Load EPDM Roll-in Glazing Gasket.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
