CRL 42in Brushed Stainless Steel Square Glass Clamp 90° Railing Kit

CRL 42in Brushed Stainless Steel Square Glass Clamp 90° Railing Kit

Regular price $1,162.98 CAD
Regular price Sale price $1,162.98 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# SPS42LBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)

Overview

  • 2" (51 mm) Schedule 40 stainless steel square posts
  • Factory-attached Z-Series glass clamps (square or round options)
  • Ready-to-install glass clamp post kits for commercial and residential projects
  • Designed to accept 1/2" (12 mm) tempered glass panels
  • Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
  • Two standard stainless finishes; custom powder coat finishes available

SKU: SPS42LBS

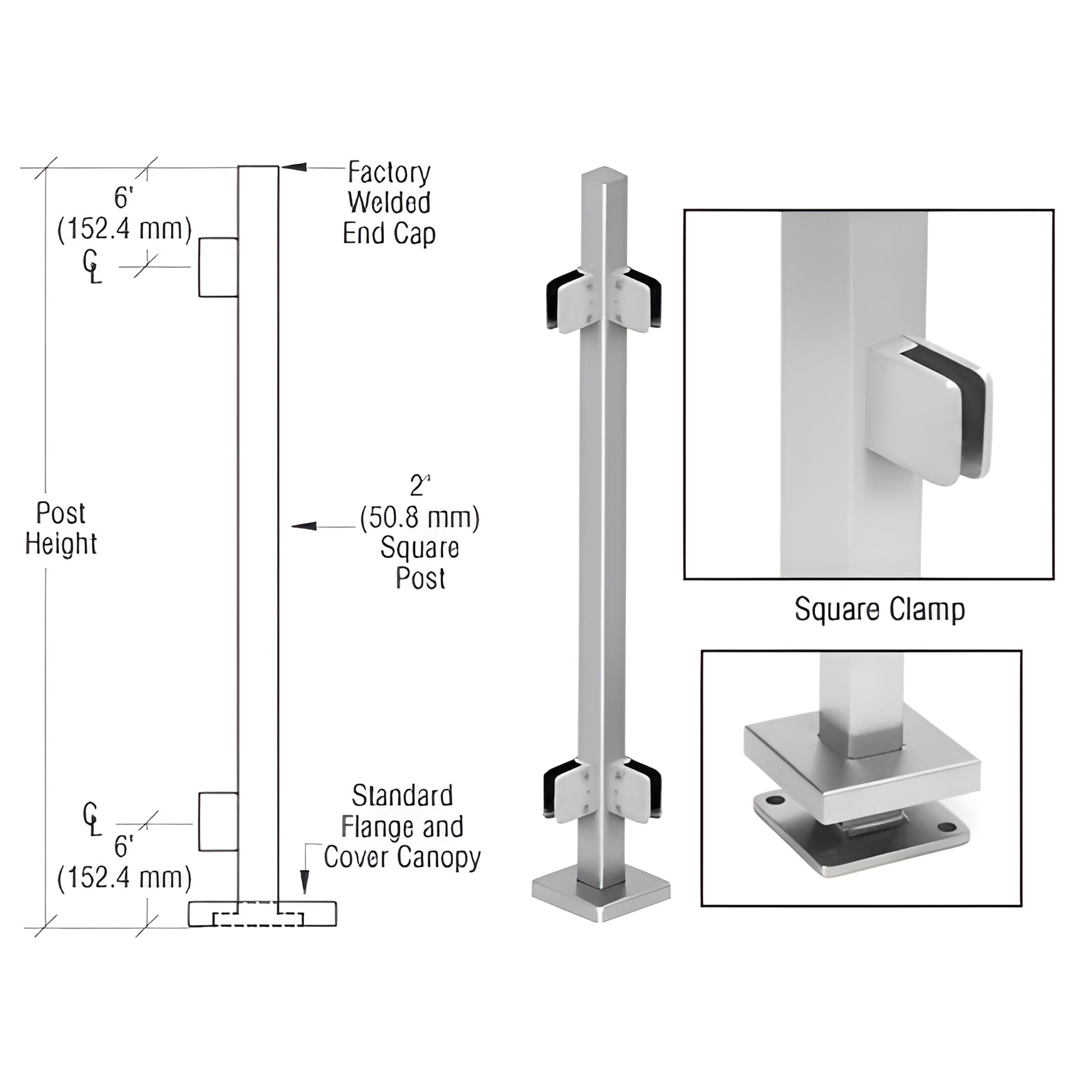

CRL's Glass Clamp Square Post Kits are manufactured from Schedule 40 2" (51 mm) stainless steel tubing and include a base plate, base plate cover canopy, welded top cap, and Z-Series glass clamps factory-attached to the post. These glass clamp post kits are engineered for easy installation and visual continuity in balustrades, glass fencing, and frameless glass partition applications where secure mounting of 1/2" tempered glass is required.

Note: These glass clamp post kits are not designed for guardrail or handrail applications.

Most shipping weights are approximate. If you require exact weight for shipping cost calculation, contact CRL Customer Service before placing your order. Product images are representative; actual colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not stain- or rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Order the SPS42LBS glass clamp square post kit today for durable, install-ready stainless posts that securely accept 1/2" tempered glass—contact CRL for custom heights and finish options.
