CRL 48" Brushed Stainless Left-Hand 'S' Ladder Back-to-Back Door Pull
CRL 48" Brushed Stainless Left-Hand 'S' Ladder Back-to-Back Door Pull
Regular price
$468.55 CAD
Regular price
Sale price
$468.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 48SLPBS
Shipping Weight: 7.937 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.937 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
36 in. (914 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
48 in. (1219 mm)
Overview
- Three sizes in two popular finishes for 3/8" to 3/4" (10 to 19 mm) tempered glass
- Designer left and right hand models available for paired or single glass doors
- 1-1/4" (32 mm) diameter heavy-wall 304 alloy stainless steel tubing
- Custom finishes and sizes available to meet architectural specifications

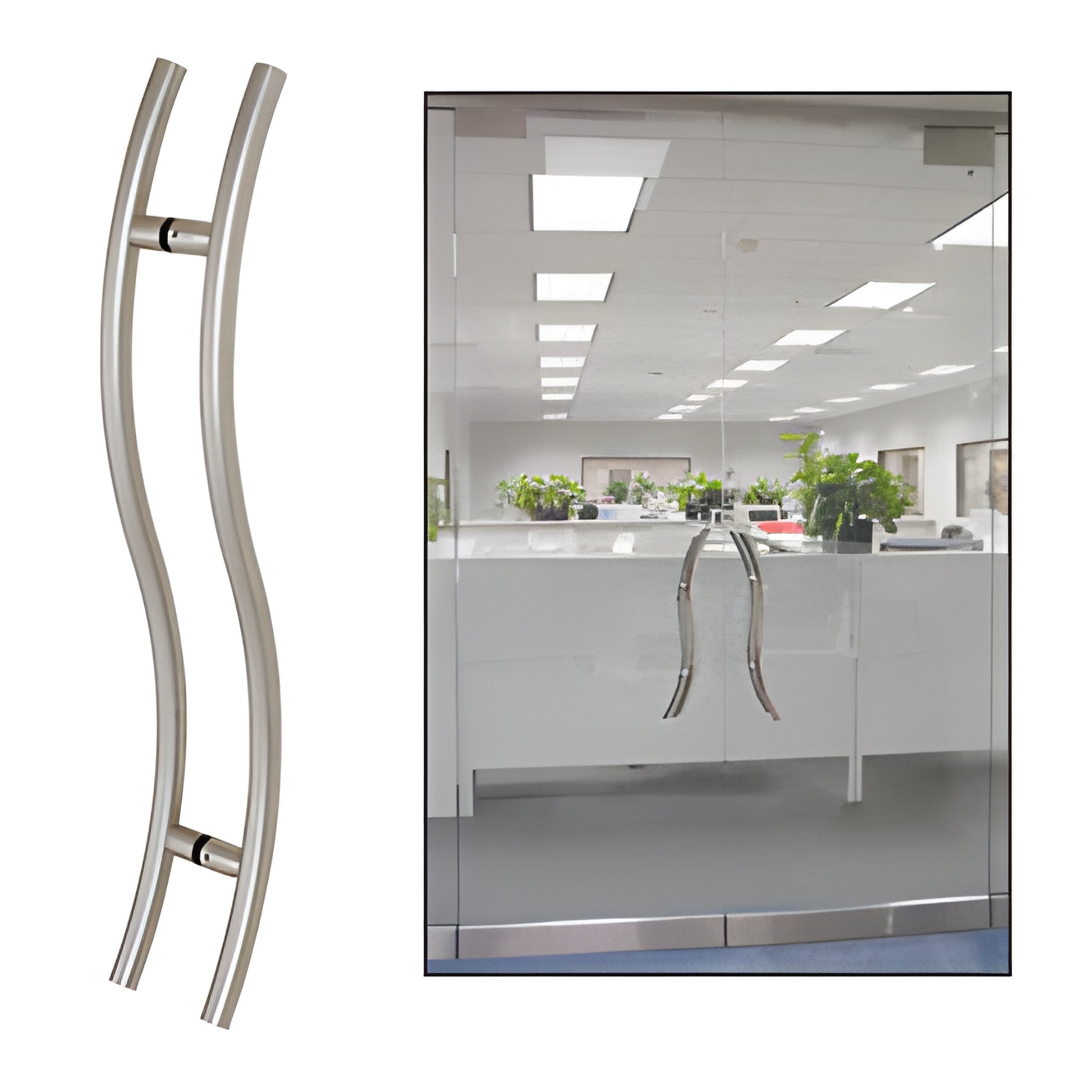

CRL "S" Style Ladder Pull Handles — SKU: 48SLPBS are heavy-duty ladder pull handles designed for back-to-back mounting with supplied through-bolts. Ideal for tempered glass door applications, these ladder pulls fit 3/8" to 3/4" (10 to 19 mm) glass and are available in stock sizes from 24" to 48" (610 mm to 1.22 m) overall height. Standard finishes include polished stainless and brushed stainless. Left and right handed models ensure exposed set-screws remain on the interior side of the door; handing is determined from the exterior side looking in.
Custom sizes and finishes are available. To discuss architectural options or start a custom order, contact CRL Technical Sales Department.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) tempered glass
Construction: 1-1/4" (32 mm) diameter 304 stainless steel tubing
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
Product Warning:
This handle is handed; the opposite handed pull is required for pairs of doors. For single-sided ladder pulls, please contact CRL Technical Sales Department.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Order the CRL "S" Style Ladder Pull (SKU: 48SLPBS) for durable, architect-grade glass door hardware — contact us to place your order or request a custom quote.
