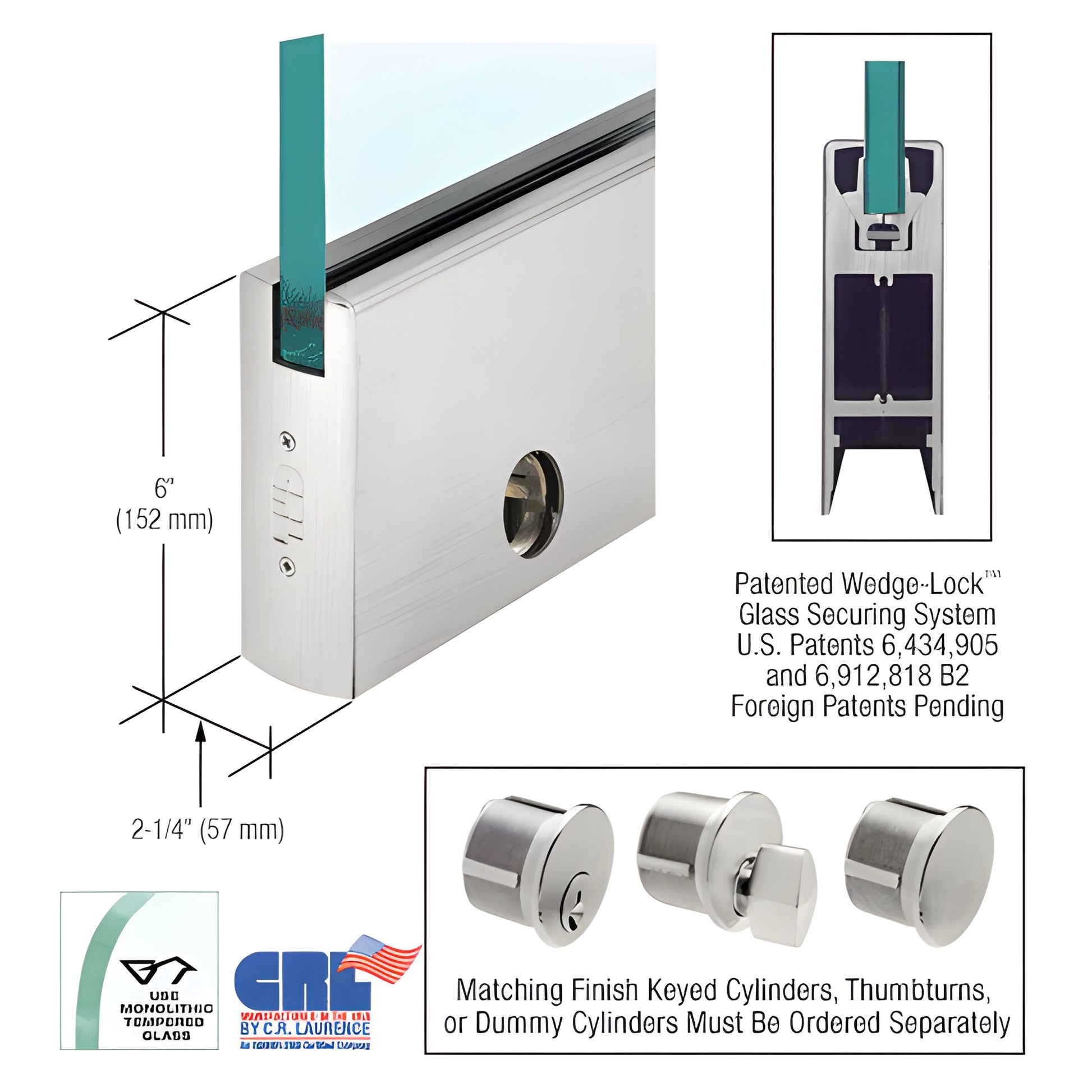

CRL Brushed Stainless 6" Square Glass Door Rail w/ Lock (5/8")

• Custom length for 5/8" (16 mm) tempered glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fast, secure clamping)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System secures monolithic tempered glass using the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The system pulls two glass-retaining aluminum extrusions together with a flat stainless steel bar and socket head cap bolts. Angled extrusions seat into an angled groove in the door rail to generate very high clamping force (over 900 lbs. in the 9" / 228.6 mm corner rail), delivering superior glass retention in full-length door rails as well.

The Wedge-Lock® system provides faster installations than conventional door rails — experienced installers can prepare a door for installation in under ten minutes. Rails ship completely fabricated and ready-to-install with end caps installed. After installation you only need to attach a door arm or pivot (not included) to the preassembled adjustable door alignment slide.

The adjustable alignment slide provides ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door. Access is through the end cap to three socket head cap bolts: the center bolt secures the slide, while the two outer bolts adjust it. The low-profile slide and slotted pivot grooves allow fabrication for vertically out-of-square openings and non-standard setbacks.

Other key benefits:

• Models available to accept 3/8" or 1/2" (10 or 12 mm) glass
• Rigid single-component housing that resists shifting over time
• Internal components do not require removal prior to installation
• Durable glass securing pads designed for extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms, pivots, closer arms and floor or overhead pivots must be ordered separately to meet job requirements. Matching finish keyed cylinders or thumbturns are ordered separately for models with locks.

CRL Wedge-Lock® Door Rails come in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales.

ORDERING INFORMATION:

• All door rails are supplied with
