CRL Brushed Stainless 6" Square Sidelite Rail for 3/4" Glass 120" Length
CRL Brushed Stainless 6" Square Sidelite Rail for 3/4" Glass 120" Length
Regular price
$1,574.92 CAD
Regular price
Sale price
$1,574.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR6SBS34SL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Brushed Stainless Steel |
| Floor Mount Saddle Included FMS | 3SA |
| Glazing Thickness | 3/4 in. (19 mm) |
| Height 6 in. | (152 mm) |
| Width 2-1/4 in. | (57 mm) |
Overview

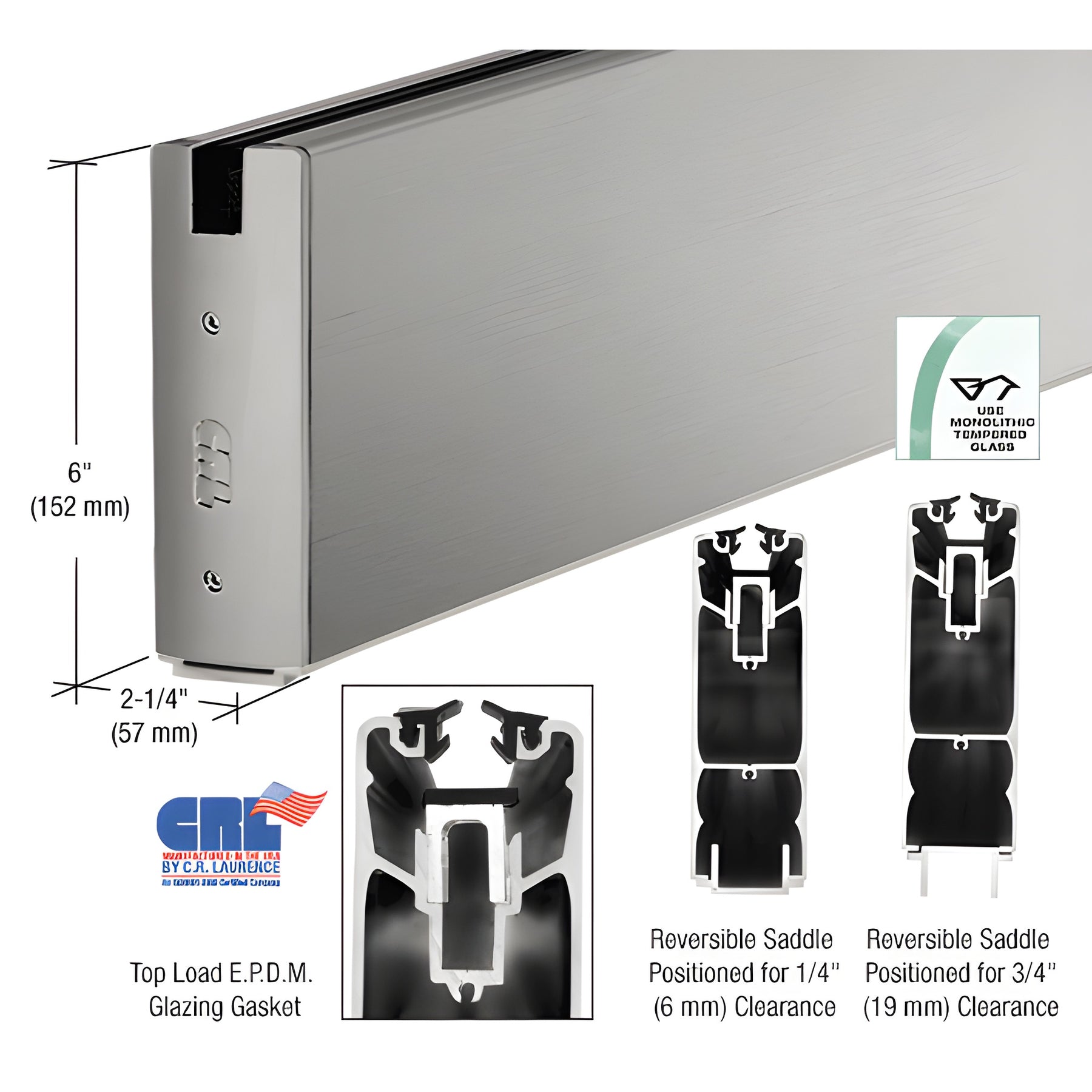

The CRL 6" (152 mm) Square Sidelite Rail is ideal for office and storefront applications, ensuring secure installation of fixed glass panels.
Its reversible extruded saddle accommodates 1/4" or 3/4" (6 or 19 mm) door clearances, providing an even sightline with matching door rails.
Designed for ease, the 'lift and drop' method with Aluminum and Neoprene Setting Blocks simplifies glass installation, while the Top Load EPDM Roll-in Glazing Gasket eliminates the need for silicone sealant.
Available in 120" (3.05 m) lengths, with custom options and finishes, this product also offers specific vinyl for various glass sizes, ensuring a seamless fit.
For ordering and technical guidance, contact CRL Customer Service, and note that cutting requires a cold saw to preserve the finish.
Regular maintenance of the stainless steel is recommended to maintain its appearance.
Its reversible extruded saddle accommodates 1/4" or 3/4" (6 or 19 mm) door clearances, providing an even sightline with matching door rails.
Designed for ease, the 'lift and drop' method with Aluminum and Neoprene Setting Blocks simplifies glass installation, while the Top Load EPDM Roll-in Glazing Gasket eliminates the need for silicone sealant.
Available in 120" (3.05 m) lengths, with custom options and finishes, this product also offers specific vinyl for various glass sizes, ensuring a seamless fit.
For ordering and technical guidance, contact CRL Customer Service, and note that cutting requires a cold saw to preserve the finish.
Regular maintenance of the stainless steel is recommended to maintain its appearance.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
