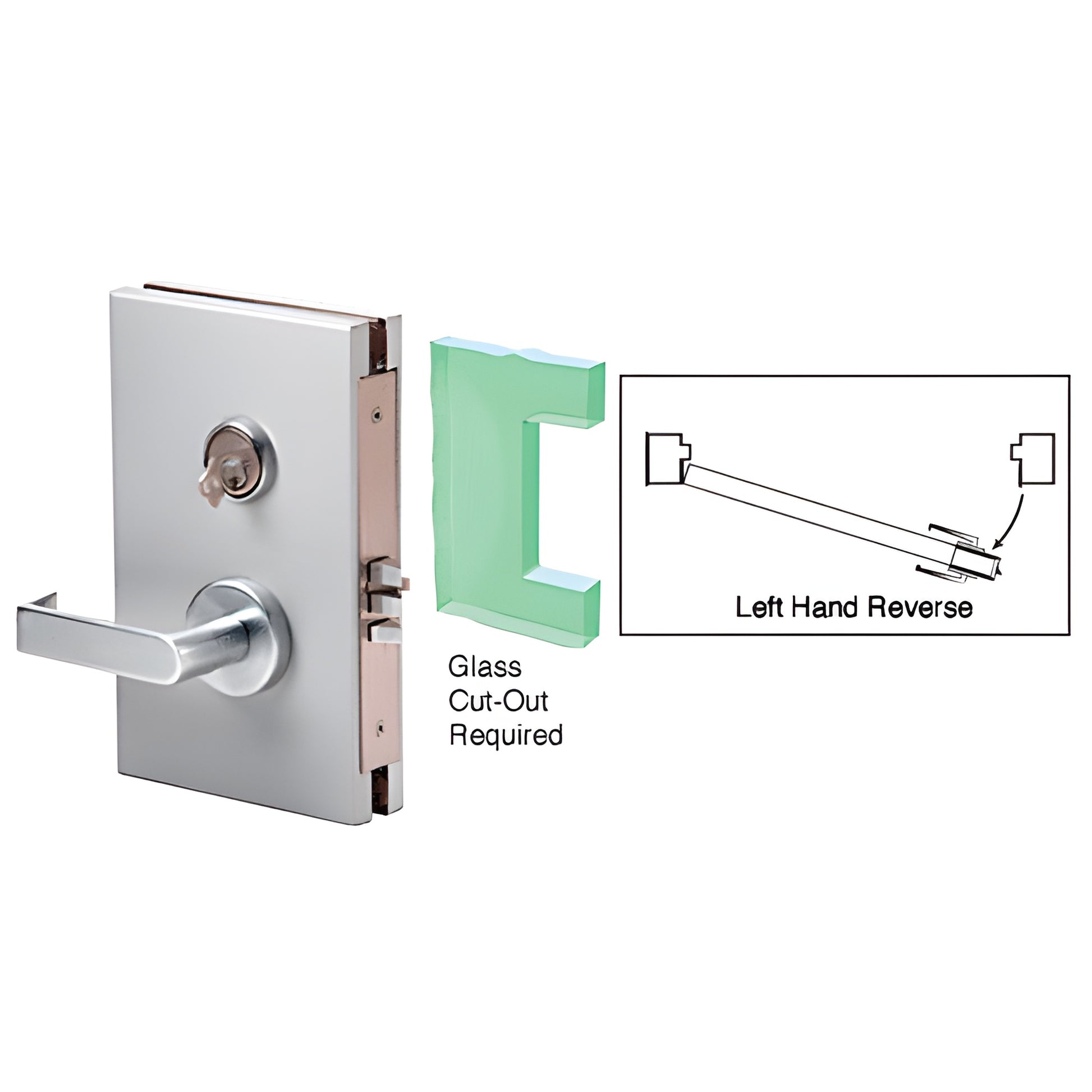

CRL Brushed Stainless 6x10 Center Lock LHR Deadlatch Classroom

• Five lock functions: Office, Entrance, Passage, Storeroom, Classroom
• Fits 1/2" (12 mm) tempered glass; custom units for other glass thicknesses available on special order
• Ships in under a week
• Available in five finishes
• Hassle-free installation — no cement or silicone required
• Jamb mount strike plates available on special order
• Designed for monolithic tempered glass

CRL 6" x 10" Center Locks with Deadlatch deliver versatile, commercial-grade security for heavy glass doors. Engineered for 1/2" (12 mm) tempered glass, these 6x10 center locks combine a deadlatch for anti-jimmy protection and multiple user-friendly functions. A simple cut-out in the glass is all that’s required for installation. Available left- and right-handed in five attractive finishes.

Office Lock Function: Latchbolt operated by lever on either side (outside lever can be locked by faceplate rocker) or by key outside. Auxiliary latchbolt deadlocks the main latch to prevent jimmying. Inside lever always retracts the lock for safe egress.

Entrance Lock: Latchbolt operated by lever on either side (unless deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Inside lever retracts both latchbolt and deadbolt for exit.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always retracts the lock for exit.

Storeroom Lock: Latchbolt operated by lever inside and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks the main latch to prevent jimmying. Interior lever always allows exit. Commonly used with electric strikes.

Classroom Lock: Latchbolt operated by lever on either side except when outside lever is locked by key. Key operates latch and unlocks outside lever. Inside lever always operable for egress.

SKU: DL611LMBS

Stainless Steel Advisory:
