CRL Brushed Stainless 6 x 10 RH Center Door Lock w/ Deadlatch (Entrance)

• Five lock functions: Office, Entrance, Passage, Storeroom, and Classroom
• Fits 1/2" (12 mm) tempered glass; custom units for other glass thicknesses available on special order
• Ships in under a week (fast availability)
• Available in five finishes
• Hassle-free installation — no cement or silicone required
• Jamb mount strike plates available on special order
• Designed for monolithic tempered glass

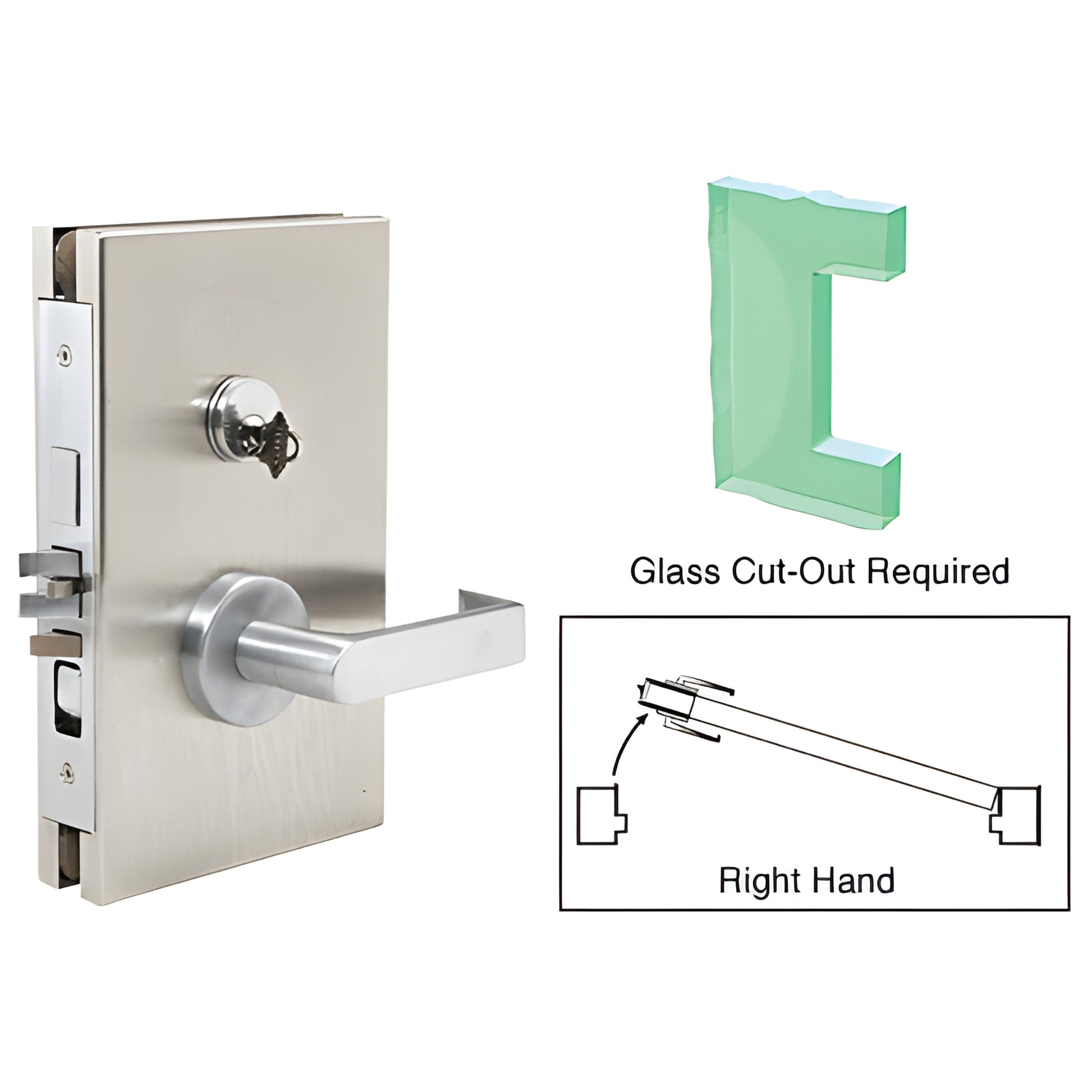

CRL 6" x 10" Center Locks with Deadlatch (SKU: DL610REBS) offer versatile security for commercial and institutional glass doors. These 6" x 10" center locks support five lock functions, come in five finishes, and are designed for 1/2" (12 mm) heavy tempered glass. A simple glass cut-out is required for installation; left- and right-handed models are available. Key differentiators: multiple lock functions, quick shipping, no-mess installation, and special-order options for other glass thicknesses and jamb mount strike plates.


Office Lock Function: Latchbolt operated by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Inside lever always retracts the mechanism for egress.

Entrance Lock: Latchbolt operated by lever on either side (except when deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Inside lever retracts latchbolt and deadbolt simultaneously for egress.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always retracts the mechanism for egress.

Storeroom Lock: Latchbolt operated by lever inside and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Inside lever always allows egress. Commonly used with electric strikes.

Classroom Lock: Latchbolt operated by lever either side except when outside lever is locked by key. Key operates latch and unlocks outside lever. Inside lever is always operable for egress.
