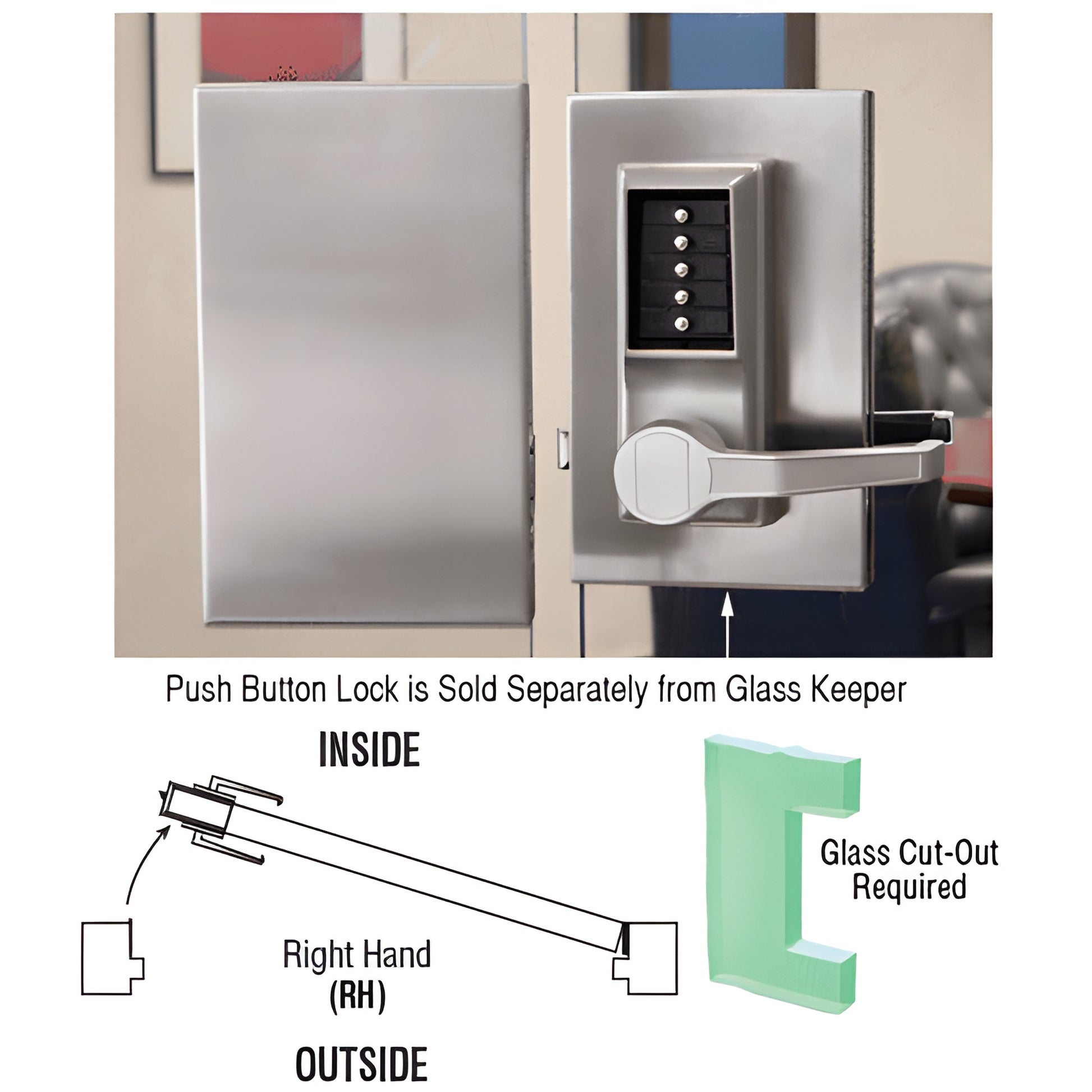

CRL 6x10 Brushed Stainless RH Center Push Glass Lock with Housing

• Requires No Electrical Connections
• Complies with A.D.A. Standards
• Five Finishes Available
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch — Model DL610RCBS offer versatile lock functions and security for 1/2" (12 mm) heavy glass doors. Designed for simple installation: a single glass cut-out is required — no cement or silicone. Available left- and right-handed and in five attractive finishes, these center locks fit monolithic tempered glass doors and are ADA compliant. Ideal long-tail keywords: 6x10 center lock for 1/2 inch tempered glass doors, ADA compliant glass door lock, glass door center lock deadlatch.

Office Lock Function: Latchbolt operated by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Inside lever always retracts the lock for exit.

Entrance Lock: Latchbolt operated by lever on either side (unless deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Inside lever retracts both latchbolt and deadbolt to allow exit.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always retracts the lock to allow exit.

Storeroom Lock: Latchbolt operated by lever inside and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Inside lever always allows exit. Commonly used with electric strikes.

Classroom Lock: Latchbolt operated by lever either side except when outside lever is locked by key. Key operates latch and unlocks outside lever; inside lever remains operable for egress.
