CRL Brushed Stainless 90° Corner Connector for 11-Gauge Cap Rail
CRL Brushed Stainless 90° Corner Connector for 11-Gauge Cap Rail
Regular price
$383.83 CAD
Regular price
Sale price
$383.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRLC10HBS
Shipping Weight: 1.7 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.7 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
304
Angle
90
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Material
Stainless Steel
Overview
- Two profiles for 1/2" (12 mm) or 5/8" (16 mm) glass
- Two finishes available
- Welded and finished, ready-to-install

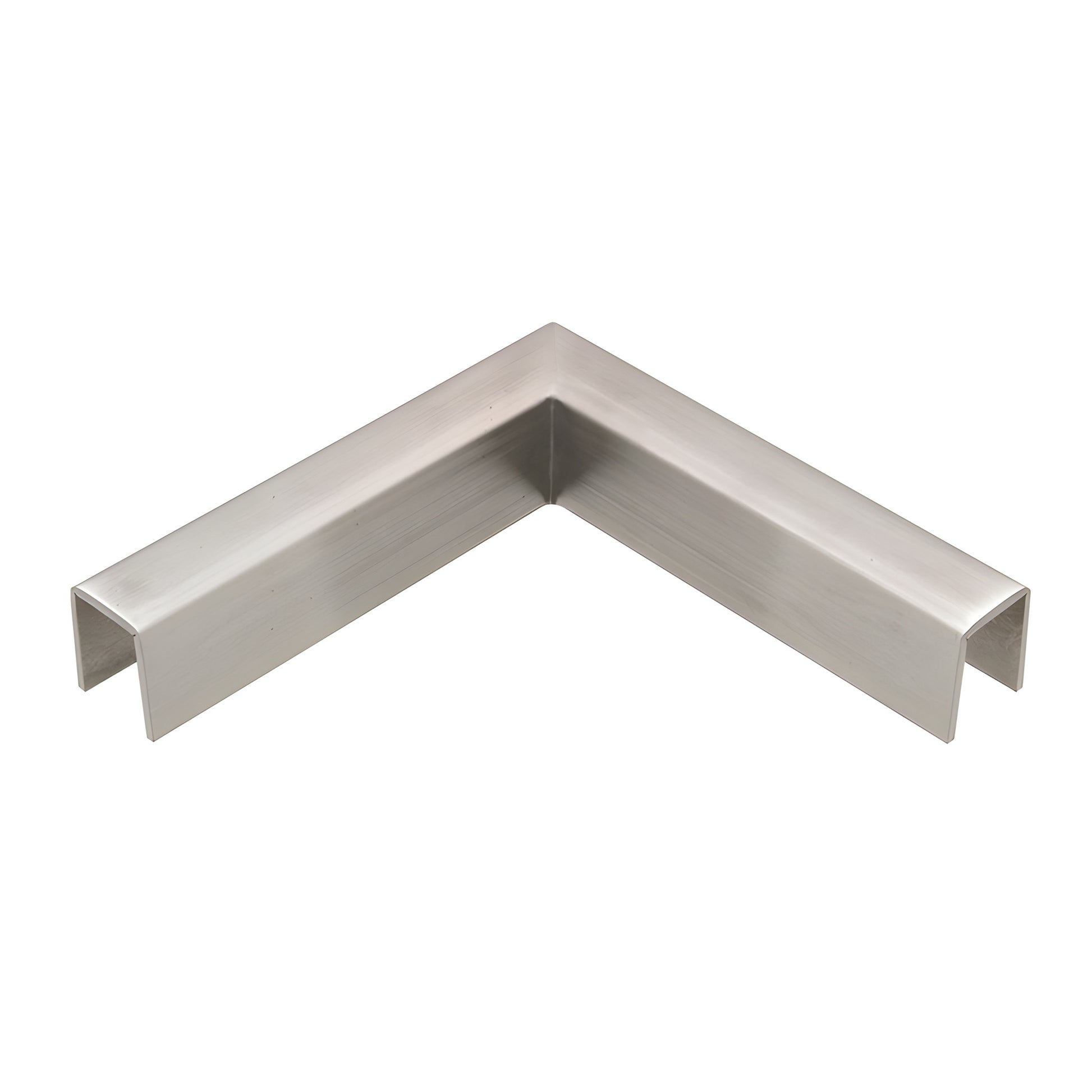

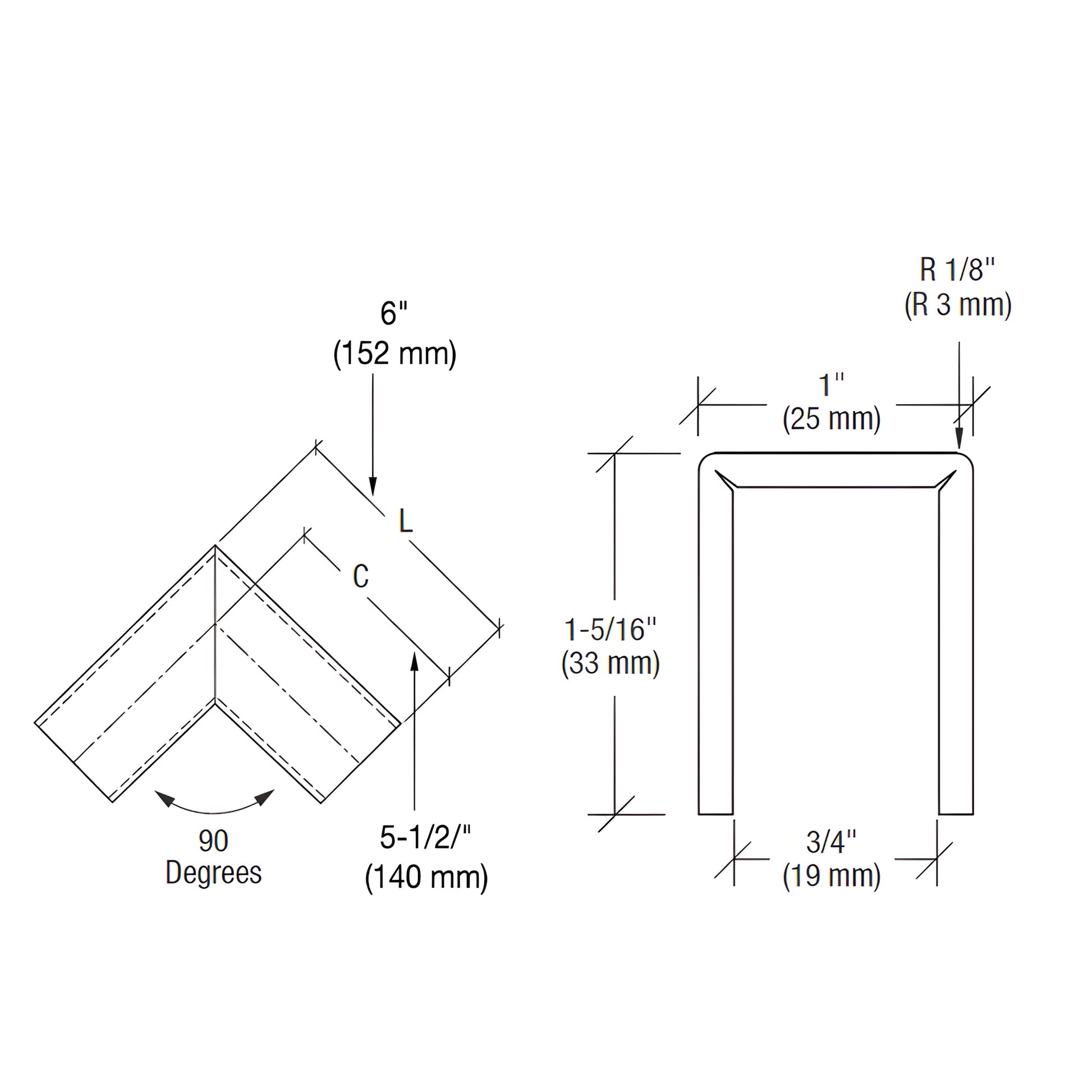

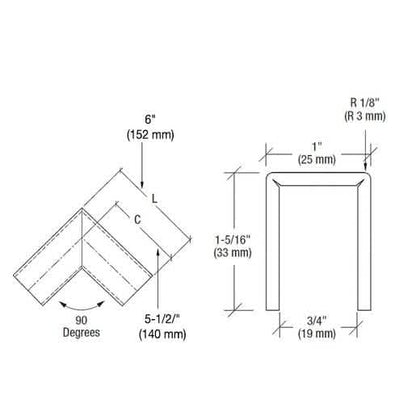

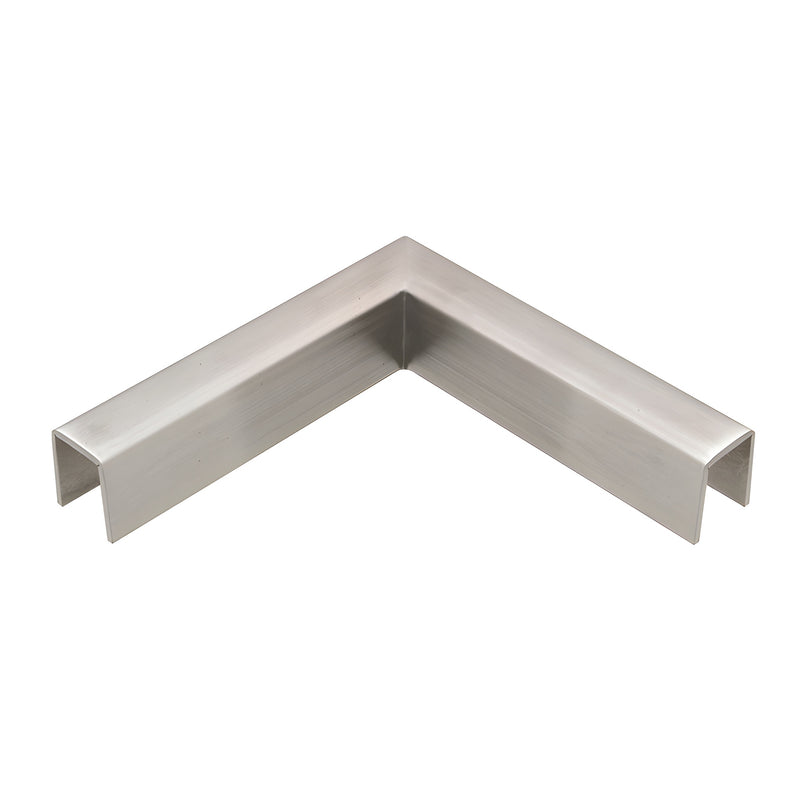

CRL Slip-Fit 90 Degree Horizontal Corners (SKU: GRLC10HBS) create hairline joint assemblies for straight runs of CRL 11 Gauge Cap Railing with 1/2" (12 mm) or 5/8" (16 mm) glass. Designed as glass railing corner connectors, these slip-fit corners deliver a clean, low-profile look. Use CRL Cat. No. 32629 Metal Contact Cement for a secure, permanent bond. Two connector sleeves are required per corner. Standard material is stainless alloy 304; stainless alloy 316 is available by special order.
Installation notes: For 1/2" (12 mm) glass use GR5PV cap rail vinyl plus 95CBL silicone to secure the glass. For 5/8" (16 mm) glass use 95CBL silicone and shims only. These ready-to-install corners reduce on-site fabrication and speed glass railing assembly.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Order GRLC10HBS today to streamline your glass railing installation.
