Product Details
- Designed for 90 Degree Glass-to-Glass Connections
- Strong Stainless Steel Construction
- 16 Degrees of Adjustability (8 Degrees in Each Direction)

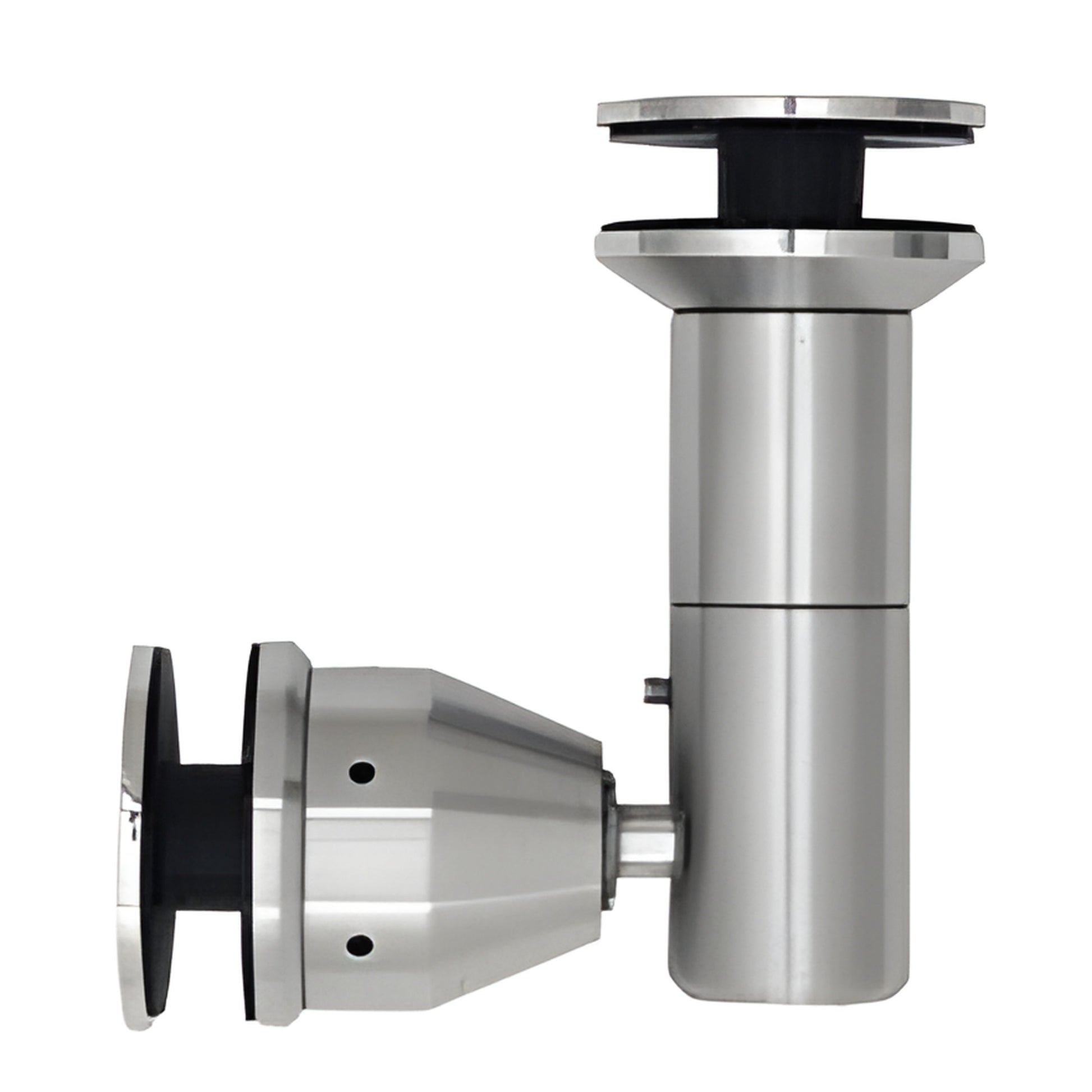

This CRL Swivel Glass-to-Glass Fitting is designed for those special applications when connecting glass panels at 90 degrees. The Fittings add rigidity to the unit, and they adjust 16 degrees (8 degrees in any direction) to accommodate for segmented or out of line glass panels. Glass fabrication is limited to only one 3/4" (19 mm) hole per mount.
SPECIFICATIONS:
For Use with 1/2" (12 mm) Tempered Glass (Do not use with raw or annealed glass)
Glass Fabrication:
One 3/4" (19 mm) Diameter Hole Per Fitting
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
