CRL Brushed Stainless Bottom Patch for Frameless Glass Doors 1NT302

• 2-9/16" (65 mm) pivot setback
• For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Not for use with laminated glass

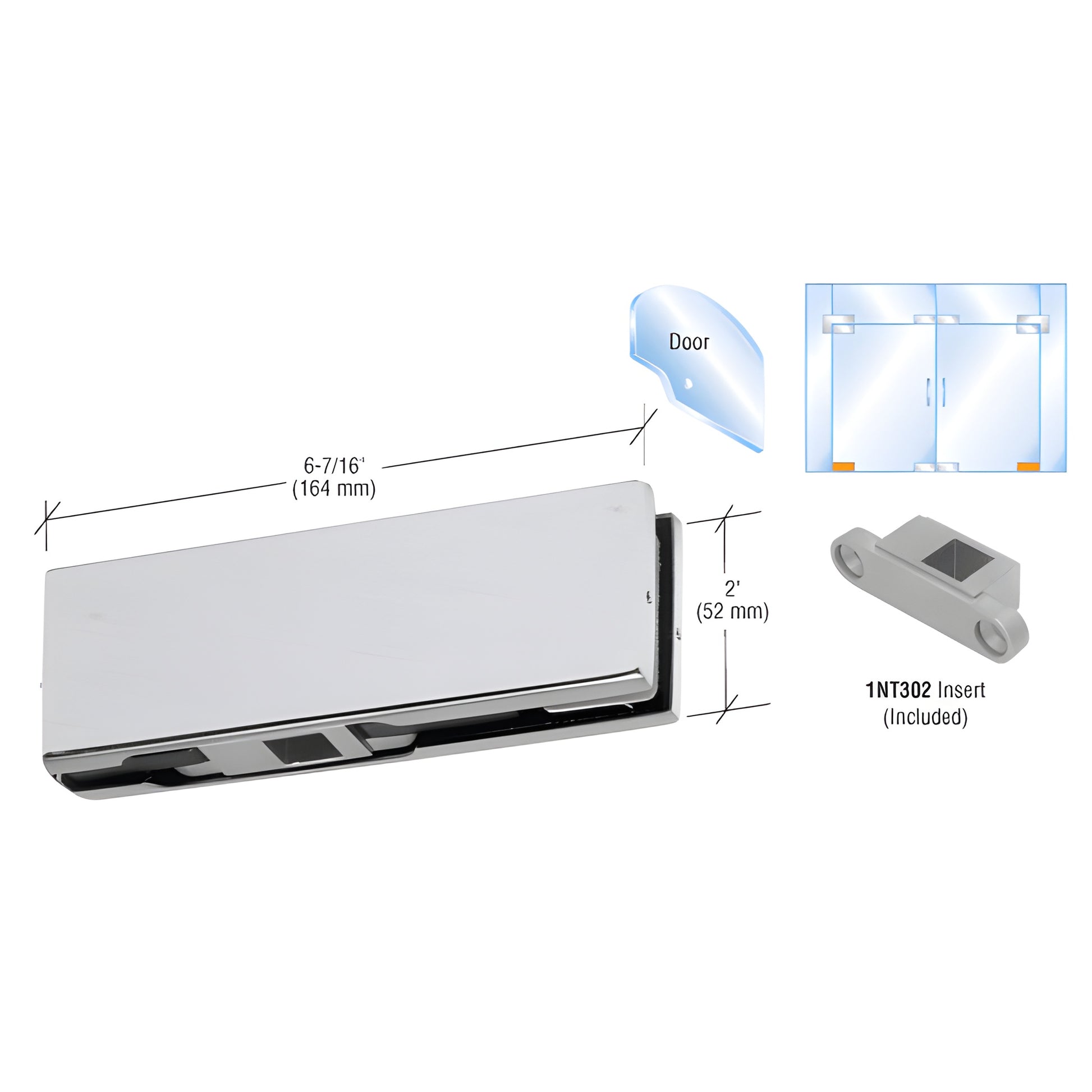

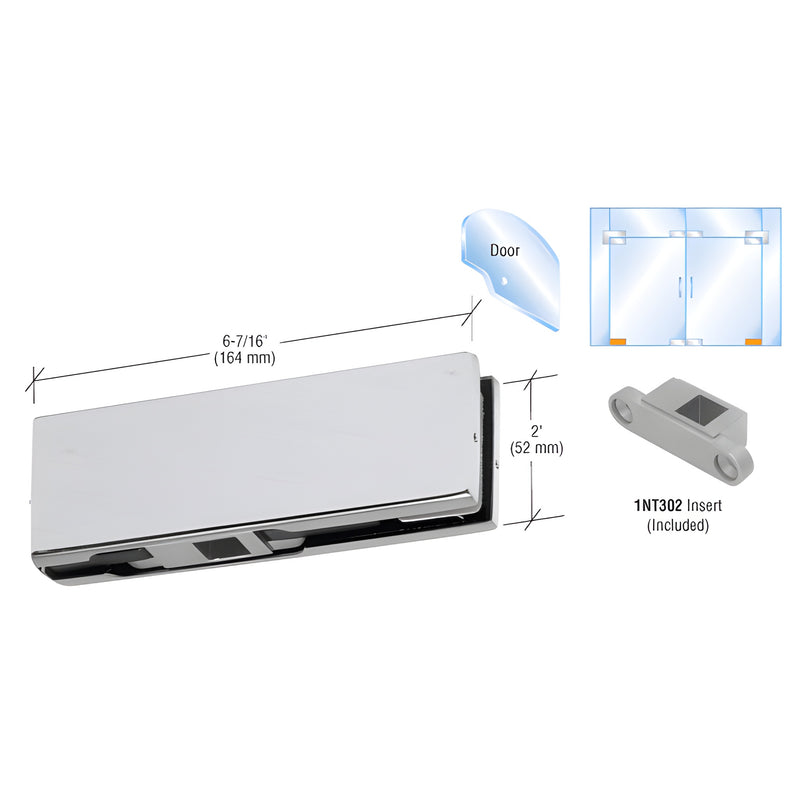

The CRL Bottom Door Patch Fitting (SKU: PH11DBS) includes the No. 1NT302 Insert for use with tapered square spindle Casma floor closers or the 1NT404 free swing pivots. Finished covers are available in four standard finishes. Supplied gaskets allow use with either 3/8" or 1/2" (10 or 12 mm) glass.


Use these guidelines when fabricating a glass door with this bottom patch fitting:
Maximum Height: 102" (2.59 m)
Maximum Weight (3/8" glass): 194 lbs (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limits, use full door rails.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH:
Template and instructions

Product Warning:

For safety and performance use monolithic tempered glass only. These fittings are not for use with laminated glass.

Guidelines for 1/2" (12 mm) glass doors using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limits, use full door rails.
