CRL 11-Gauge Brushed Stainless Steel Cap Rail – Crisp Corner
CRL 11-Gauge Brushed Stainless Steel Cap Rail – Crisp Corner
Regular price
$799.03 CAD
Regular price
Sale price
$799.03 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRLC10BS
Shipping Weight: 18.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 18.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
304
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)

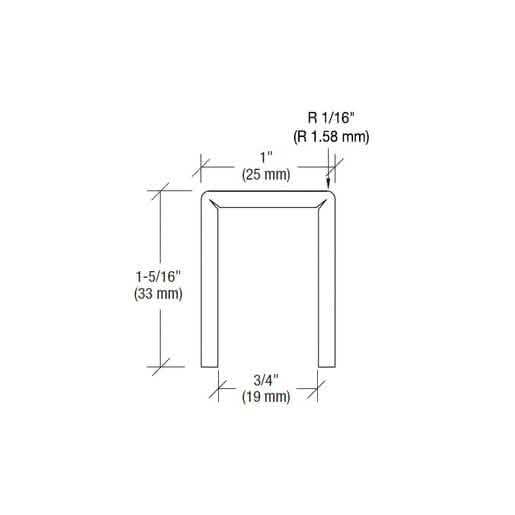

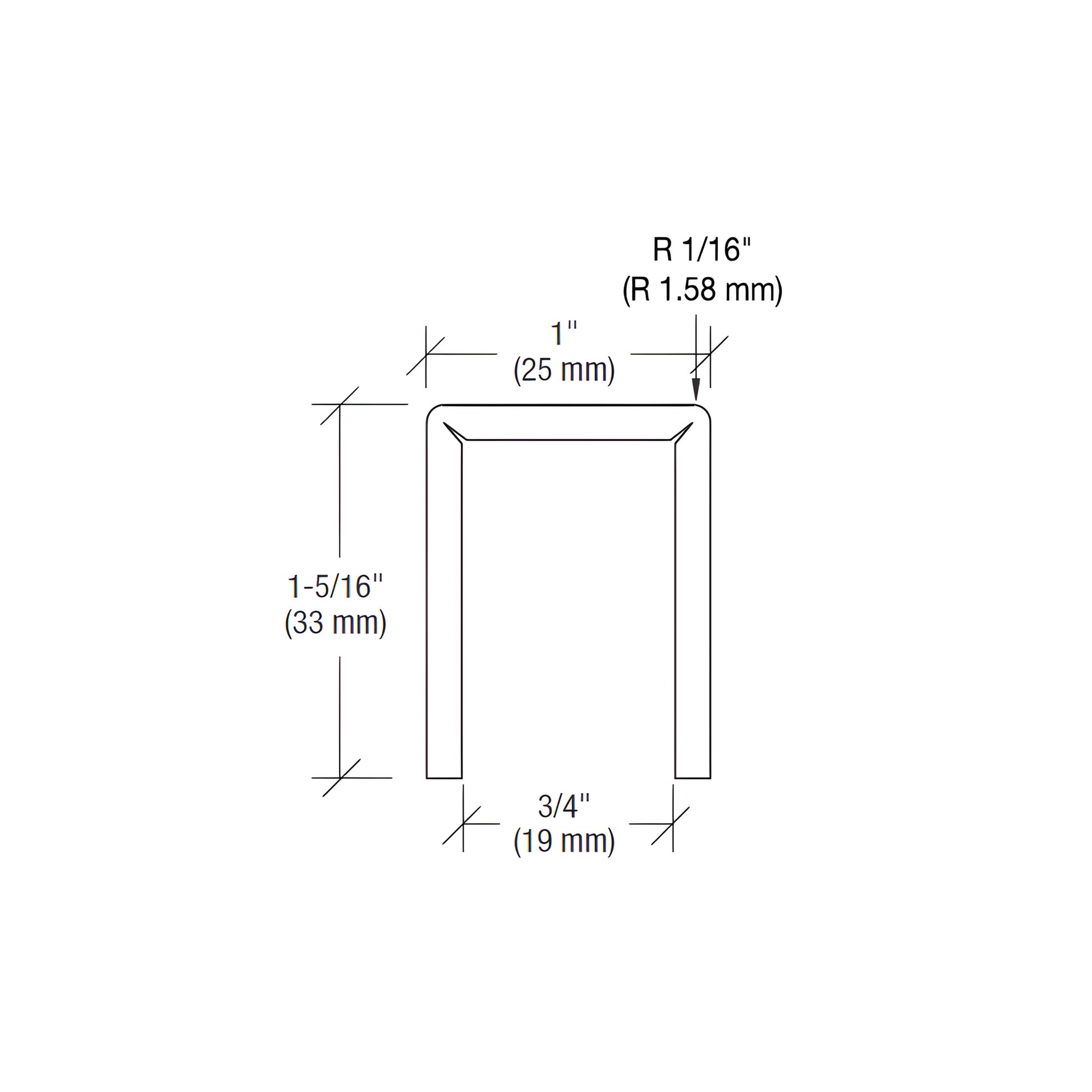

Height
1-5/16 in. (33 mm)
Length
120 in. (3048 mm)
Material
Stainless Steel
Width
1 in. (25 mm)
Overview
- Crisp corner profile for 1/2" (12 mm) or 5/8" (16 mm) monolithic glass
- Low-profile stainless steel cap rail designed as a top rail for guard rail applications
- Protects glass edge and secures glass panels together
- Available in two architectural finishes
- Connects to fabricated corners and end caps

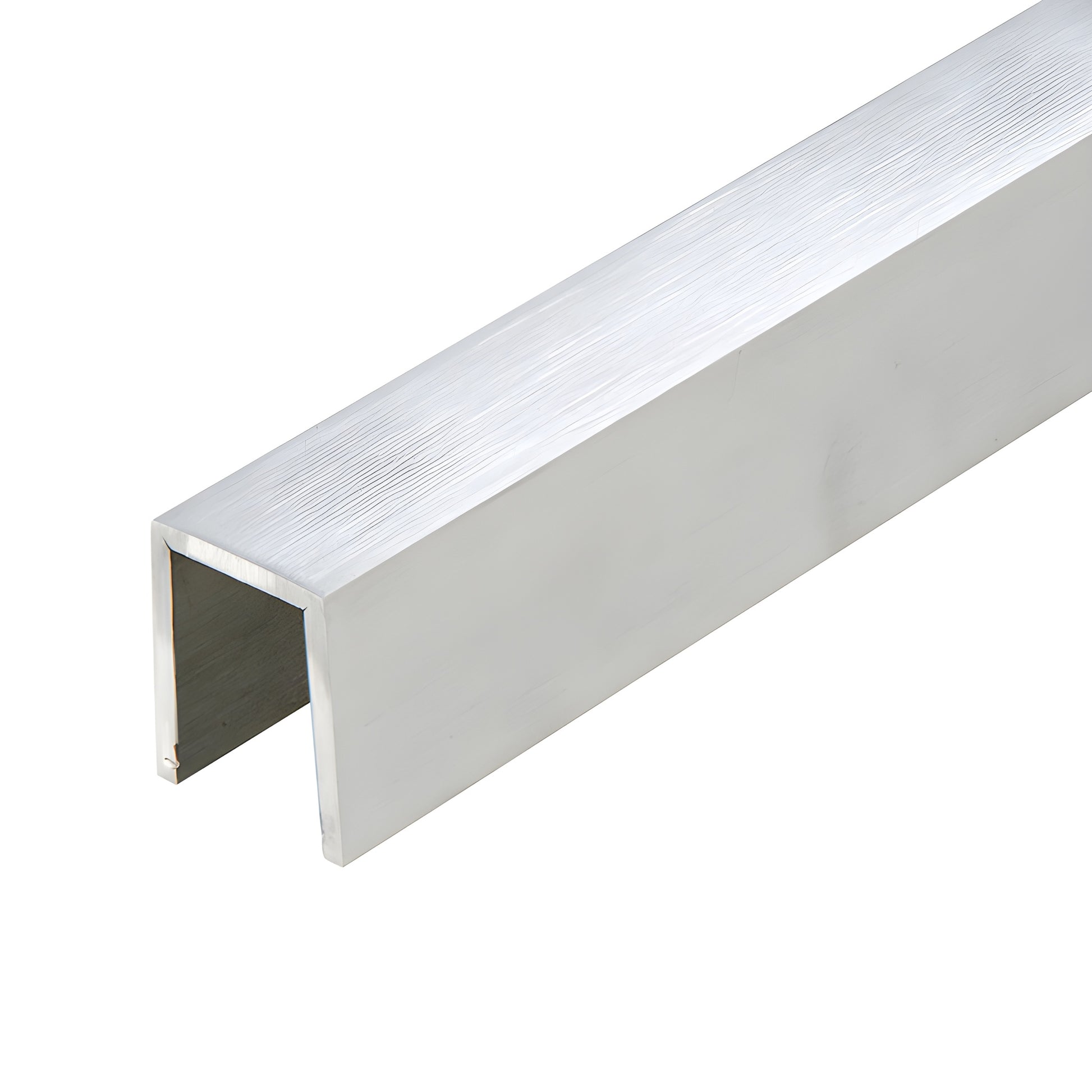

CRL Crisp Corner Low Profile Cap Rail — SKU: GRLC10BS is fabricated from 11 gauge 304 stainless steel to protect glass edges and secure panels in cap railing and guard rail installations. This low-profile stainless steel cap rail is ideal for architectural glass railings where a discreet, durable top rail is required.
NOTE: For 1/2" (12 mm) glass use GR5PV cap rail vinyl plus 95CBL silicone to secure the glass. For 5/8" (16 mm) glass secure with 95CBL silicone and shims.
SPECIFICATIONS:
Material: 304 Stainless Steel
Thickness: 11 Gauge
Stock Length: 10' (3.05 m)
Typical Uses: Protect edges of glass and secure glass panels together in cap railing and guard rail installations
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order GRLC10BS today for a durable, low-profile stainless steel cap rail solution for glass and guard rail systems.
