Product Details
- Crisp Corner Profile for 1/2" (12 mm) or 5/8" (16 mm) Glass
- Designed for Use as a Top Rail for Guard Rail Applications
- Protects Glass Edge
- Secures Glass Panels Together
- Available in Two Architectural Finishes
- Connects to Fabricated Corners and End Caps

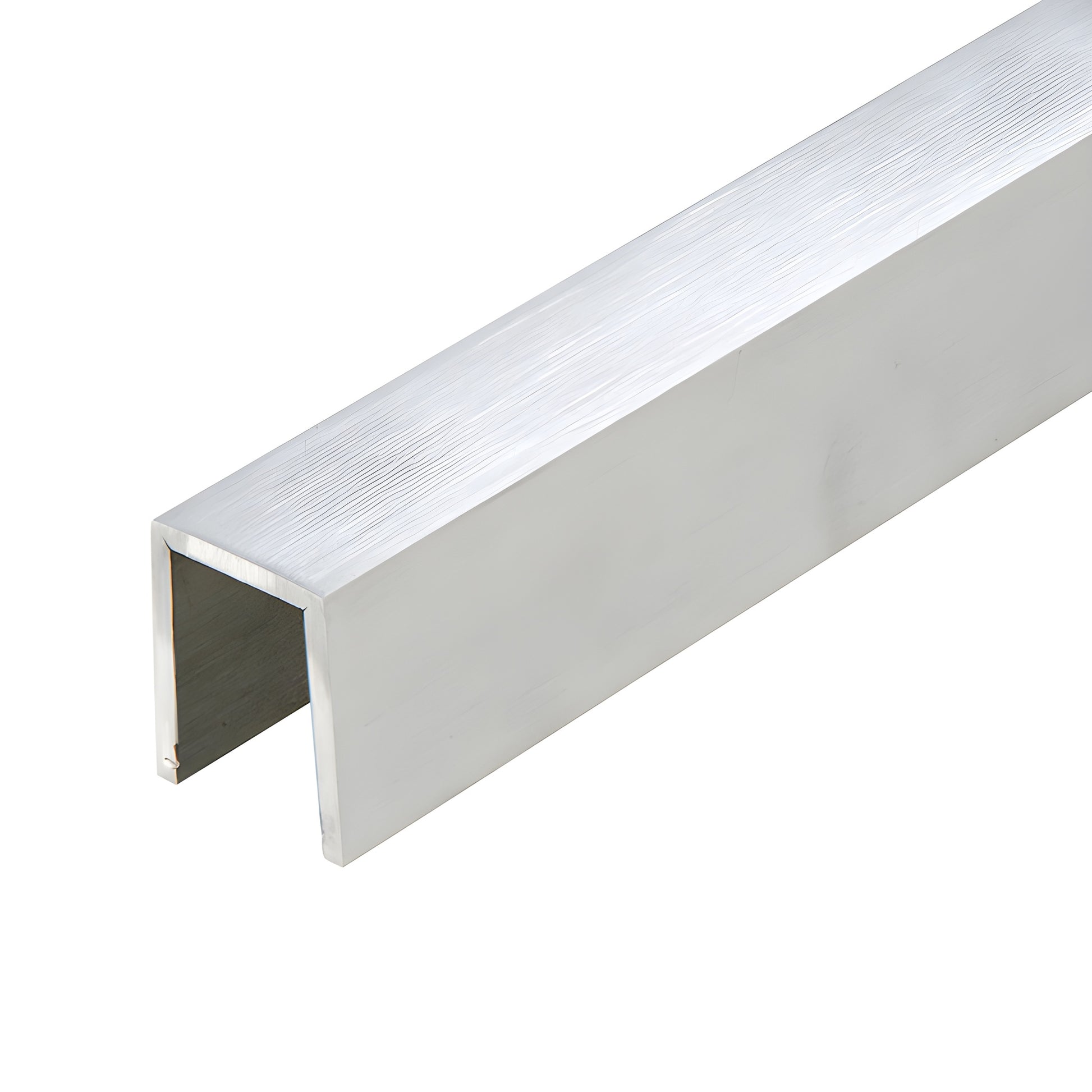

CRL Crisp Corner Low Profile Cap Rail is made from 11 gauge stainless steel, and is designed to protect the edge of the glass and secure glass panels together.
NOTE: When used with 1/2" (12 mm) glass, GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone and shims.
SPECIFICATIONS:
Material: 304 Stainless Steel
Thickness: 11 Gauge
Stock Length: 10' (3.05 m)
Typical Uses: Protect Edges of Glass and Secure Glass Panels Together in Cap Railing Installations
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
