CRL Brushed Stainless U-Channel for Glass, Custom w/ Roll-In Gasket

• Top Loading Roll-In Gasket for secure glass retention
• Fits 3/8" and 1/2" (10 mm and 12 mm) glass
• Available in five durable, matching finishes

This CRL U-Channel with Roll-In Top Load Gasket (SKU: UCBS3812CL) is engineered for glass door and sidelite applications where a secure, clean top-load glazing solution is required. Use it with CRL Patch Hardware, our Header for Overhead Door Closers with Fixed Sidelites, or the Door Rail System. Designed for surface or recess mounting, the top-load gasketing locks the glass in place for a neat, frameless look and reliable performance.

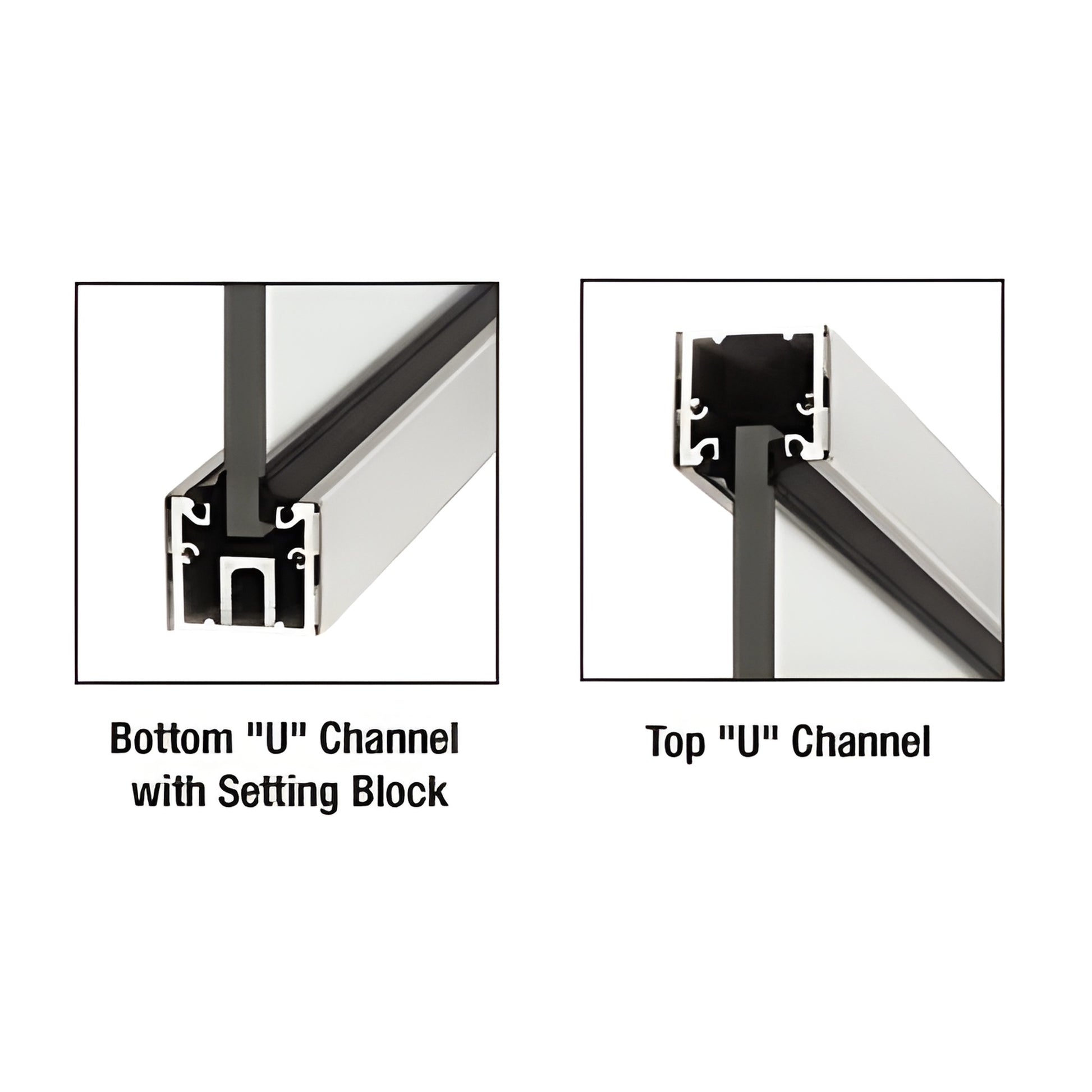

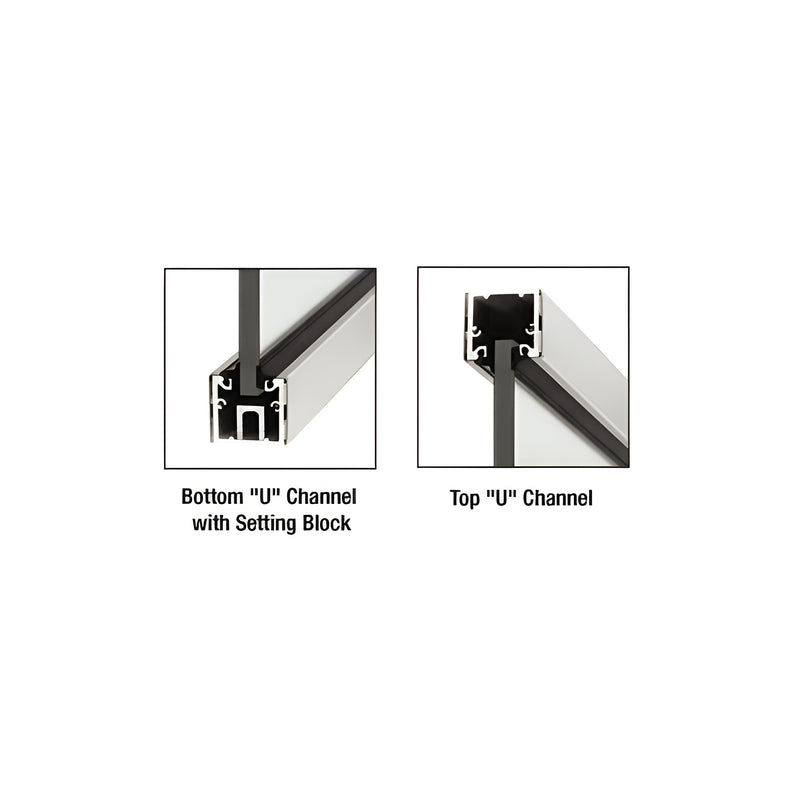

The included 4" (102 mm) Aluminum Setting Blocks with Neoprene provide rigid support inside the bottom channel. They set the glass at the correct height to deliver 9/16" (14.3 mm) glass coverage in both top and bottom channels when glazed with the "lift and drop" method.

Roll-In Top Load Gasketing for 3/8" or 1/2" glass is sold separately in 100' and 500' rolls. Matching end caps and a full family of installation accessories are available to simplify glazing and finish the installation.

Key benefits: versatile U-channel for glass doors, secure top-load gasketing, multi-finish options, and readily available accessories. Order SKU UCBS3812CL or contact CRL for pricing and lead times.
