- Supported by Glass Side Panels
- Creates an Even Sight Line When Used with CRL Door Rails
- Custom Sizes and Configurations Available
- Six Standard Finishes Available: Satin Anodized, Black Bronze Anodized, Black Powder Paint, Polished Stainless, Brushed Stainless, and Polished Brass
- Custom Finishes Available on Special Order

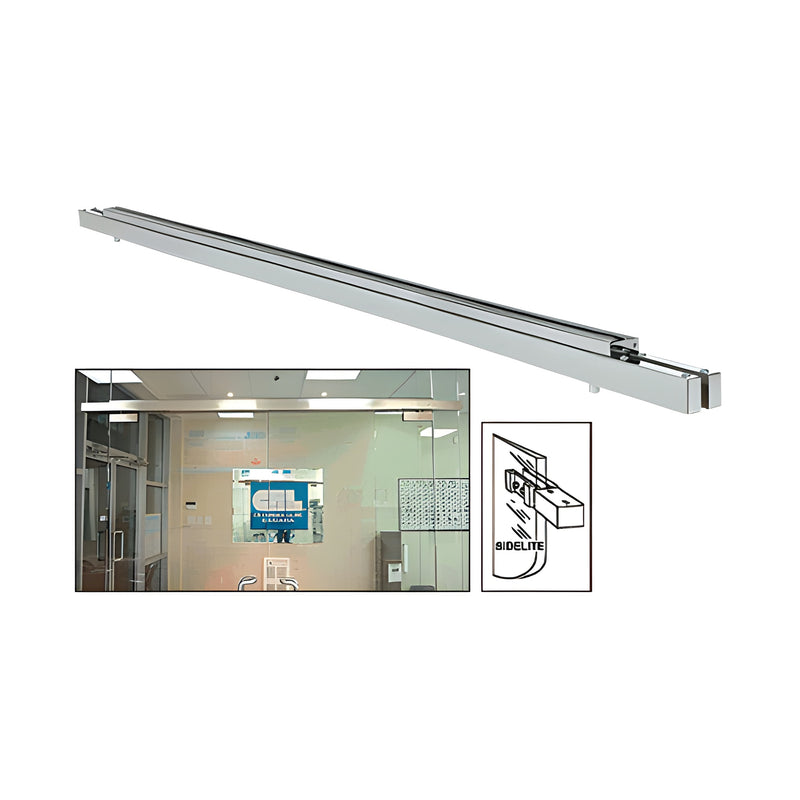

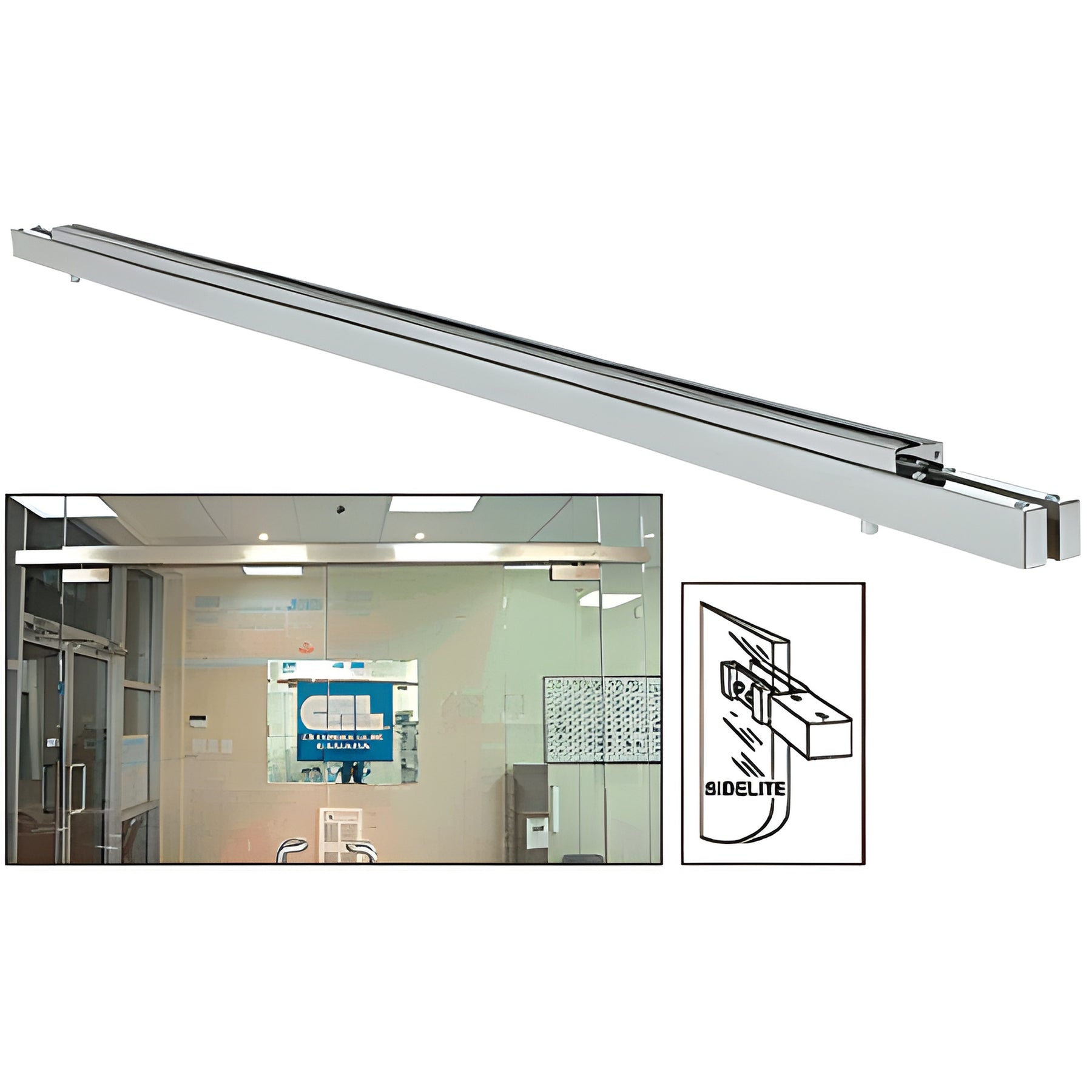

The 1-7/8" x 1-5/8" (47.6 x 89 mm)
CRL Custom Narrow Floating Header with Surface Mounted Top Pivots
work with
PH20 Series
and
PH21 Series
Top Door Patch Hardware Fittings, and with all 3/8" or 1/2" (10 or 12 mm)
Heavy Glass Door Rails
. When used with CRL Door Rails, you get an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with
Free Swinging Bottom Pivots
or
Floor Closers
. These Headers are custom fabricated per your specifications.
Note
Length and installation type must be specified when ordering. For additional assistance regarding other possible configurations, contact CRL Technical Sales Department.
Product Warning
STRUCTURAL DISCLAIMER
- All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
If the weight of the transom above the header exceeds 100 pounds (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
