Product Details
- Supported by Glass Side Panels
- Custom Sizes and Configurations Available
- Six Standard Finishes Available
- Support Fin Brackets Provide Extra Stability in Tall Openings

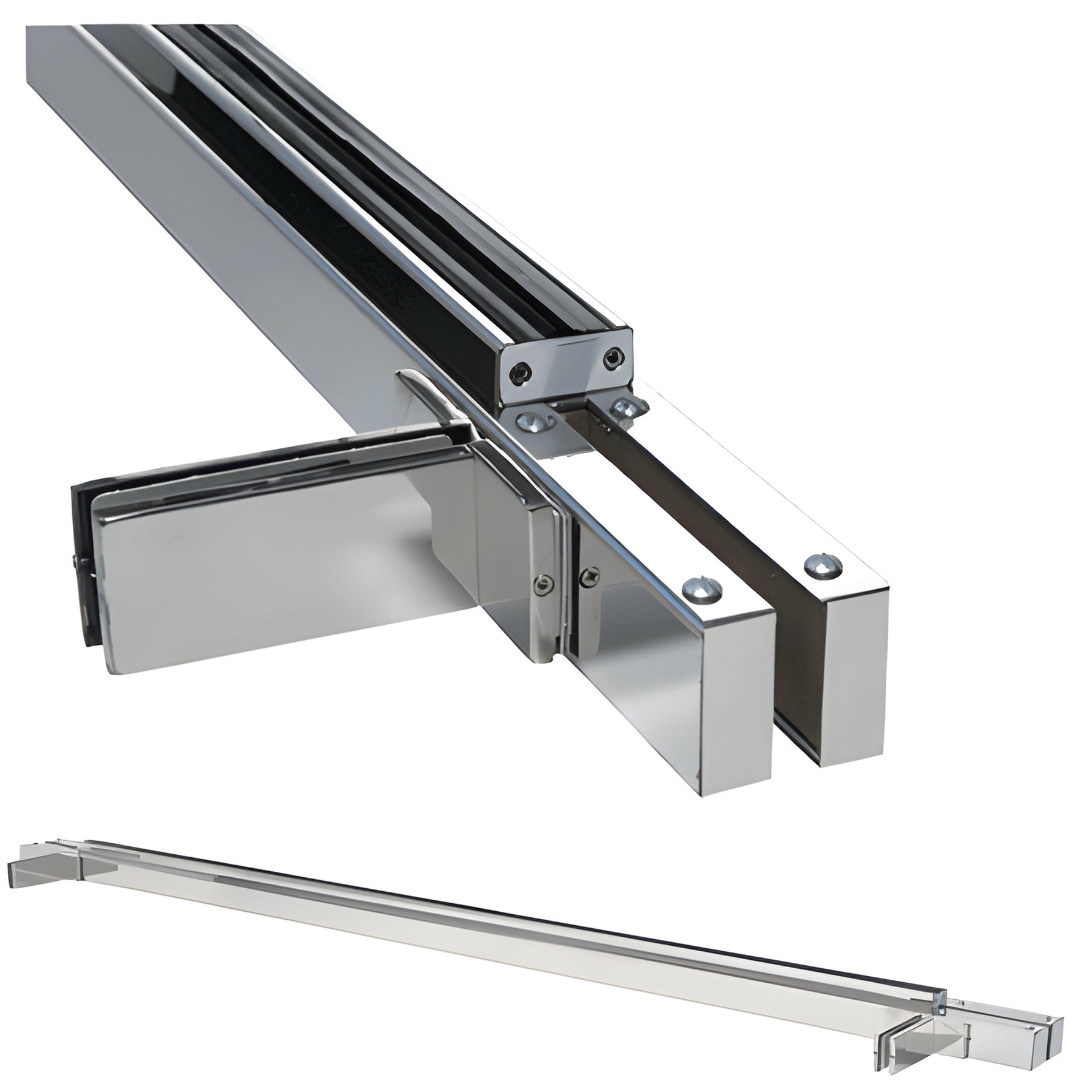

The 2-1/8" x 1-5/8" (54 x 89 mm) CRL Custom Narrow Floating Header with Walking Beam Pivots and Support Fins work with the Patch and Full Length Heavy Glass Door Rails for 3/4" Glass. It gives you an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with Free Swinging Bottom Pivots or Floor Closers. These Headers are custom fabricated per your specifications.
NOTE: Length and installation type must be specified when ordering. For additional assistance regarding other possible configurations, contact CRL Technical Sales Department.
Product Warning:
If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Also, if doors exceed (200) lbs. each a heavier duty Walking Beam Pivot is recommended to be used in lieu of the standard CRL9040WBP included. Please contact Technical Sales for assistance.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
