CRL Brushed Stainless Steel Electric Solenoid Bolt Lock - UL Listed
CRL Brushed Stainless Steel Electric Solenoid Bolt Lock - UL Listed
Regular price
$385.53 CAD
Regular price
Sale price
$385.53 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MLEDB2
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Plate Length
8 5/8
Cover Plate Width
1 1/2
Current Draw
.9 A Start / .3 A Standby
Faceplate
Size: 7-7/8" x 1-5/16" x 1/8"
Input
12 Volts DC
Strike Size
3 1/2" x 15/16" x 1 1/16"
UL Listed
Yes
Overview
- UL Listed to UL 1034 for life safety
- Fail-safe electric solenoid bolt lock — requires power to remain locked
- Dual monitoring: independent lock and door status feedback
- 12 VDC input for standard access control systems
- Adjustable locking delay: selectable 0 to 5 seconds

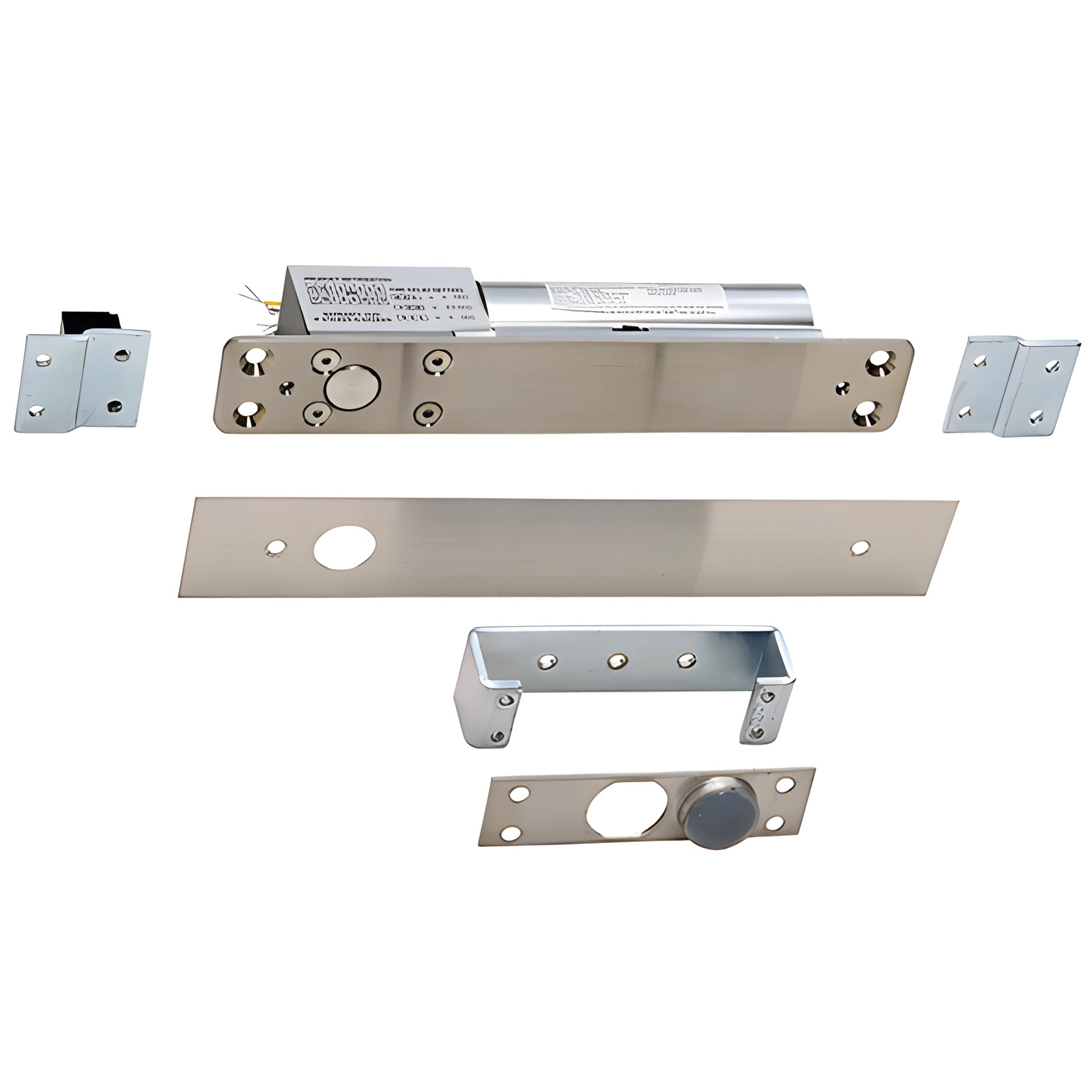

The CRL Electric Solenoid Bolt Lock (SKU: MLEDB2) is a UL-listed, fail-safe solenoid lock designed for secure indoor access control applications. Ideal for retrofit or new installations requiring 12 VDC power, this bolt lock offers continuous-duty operation, dual monitoring for both lock and door position, and an adjustable 0–5 second locking delay for integration with timed entry systems.
A brushed stainless cover plate is included for a clean, durable finish.
SPECIFICATIONS:
Indoor use only
Input: 12 Volts DC
Solenoid: Continuous duty
Current draw: 0.9 A start / 0.3 A standby
DIMENSIONS:
Cutout: 8" x 1-3/8" x 1-5/8" D (200 x 35 x 43 mm)
Face: 7-7/8" x 1-5/16" x 1/8" (200 x 34 x 3 mm)
Cover plate: 8-5/8" x 1.5" (219 x 38 mm)
Strike: 3-1/2" x 15/16" x 1-1/16" D (90 x 24 x 27 mm)
Product Warning:
THE SUPPLIED STRIKE PLATE MUST BE INSTALLED TO ACTIVATE THE LOCK SOLENOID. THIS LOCK WILL NOT THROW THE LATCH BOLT UNLESS IT SENSES THAT THE DOOR IS IN THE CLOSED POSITION.
Shop the UL-listed MLEDB2 electric solenoid bolt lock for reliable 12 VDC fail-safe security and dual monitoring — add to cart or contact CRL Customer Service for installation details.
