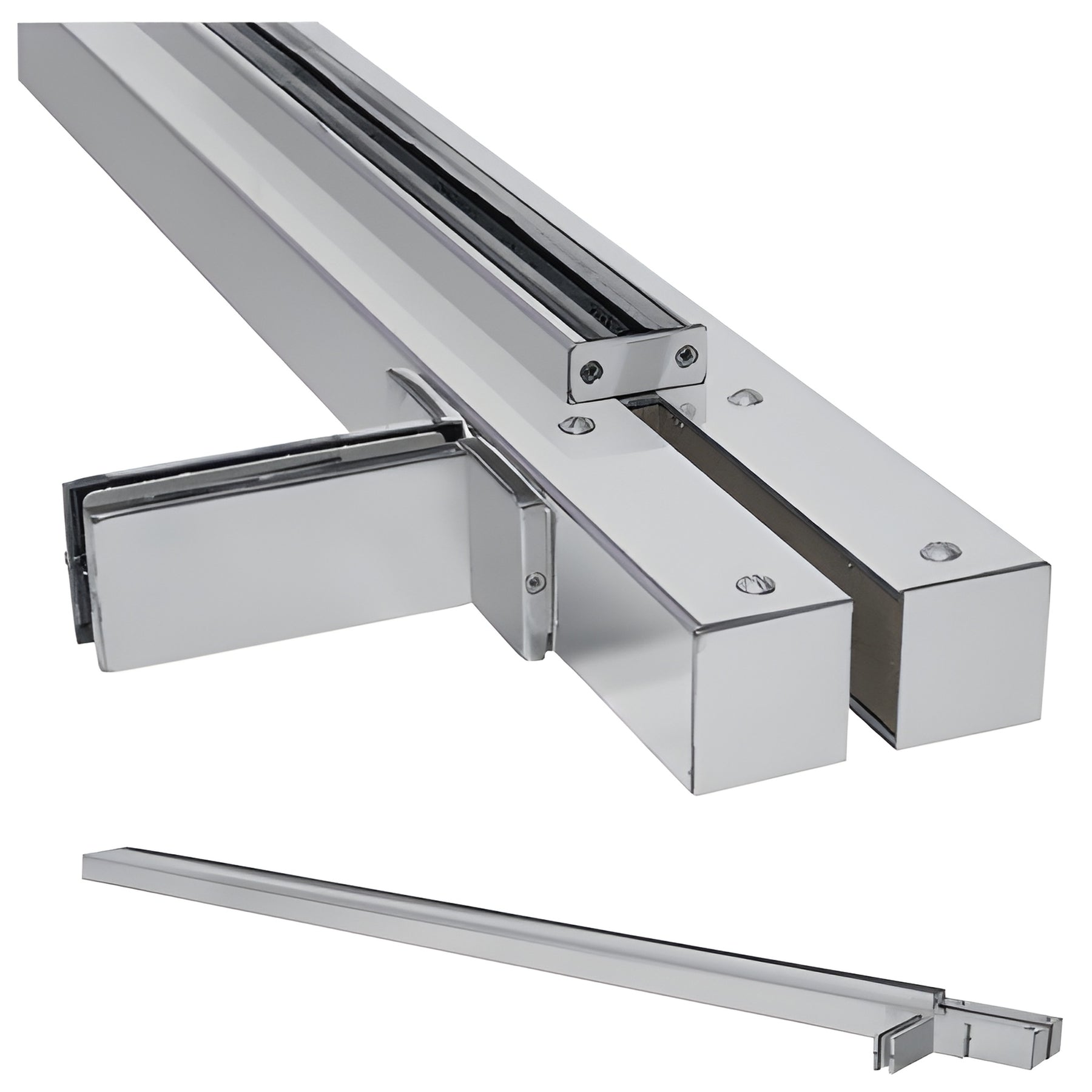

CRL Brushed Stainless Floating Wall-to-Glass Header for Double Doors

• Adds rigidity and stabilizes all-glass openings
• Only available on special order
• Available for glass-to-glass or wall-to-glass installations — with or without overhead concealed door closers
• Several stock architectural finishes available; custom finishes available as well
• Each floating header is customized to your project requirements

CRL Floating Headers With Fin Brackets are engineered to add rigidity to all-glass entrances and reduce deflection from wind, stack loads, and impacts. Ideal for single or double glass door installations, these architectural floating headers support glass door systems while maintaining a clean, minimal look. Common configurations include glass-to-glass and wall-to-glass installations, custom lengths, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface top pivots, walking beam pivots, or overhead concealed door closers. Header profile: 4" x 1-3/4" (102 x 44.5 mm). SKU: FH4FWGBSCD. For configuration assistance or to request finishes and lead times, contact CRL Technical Sales.

Key differentiators:

• Purpose-built for all-glass entrances to minimize header bowing and improve performance
• Customizable lengths and prep options for locks and pivots
• Multiple stock architectural finishes plus custom finish capability

Product Warning:

STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to verify suitability for intended use and site conditions. Installers must be qualified and follow local, state, and federal regulations, safety factors, and proper fixing procedures. If the transom weight above the header exceeds 100 lbs. (45.4 kg), support the transom from the ceiling to prevent bowing. Consider Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings for support; contact Technical Sales for recommendations.

Stainless Steel Advisory:
