- Can be Used with CRL 1-1/4" (32 mm) Standoff Bases or Swivel Fittings
- Replaces 1-1/4" (32 mm) Standoff Cap Assembly

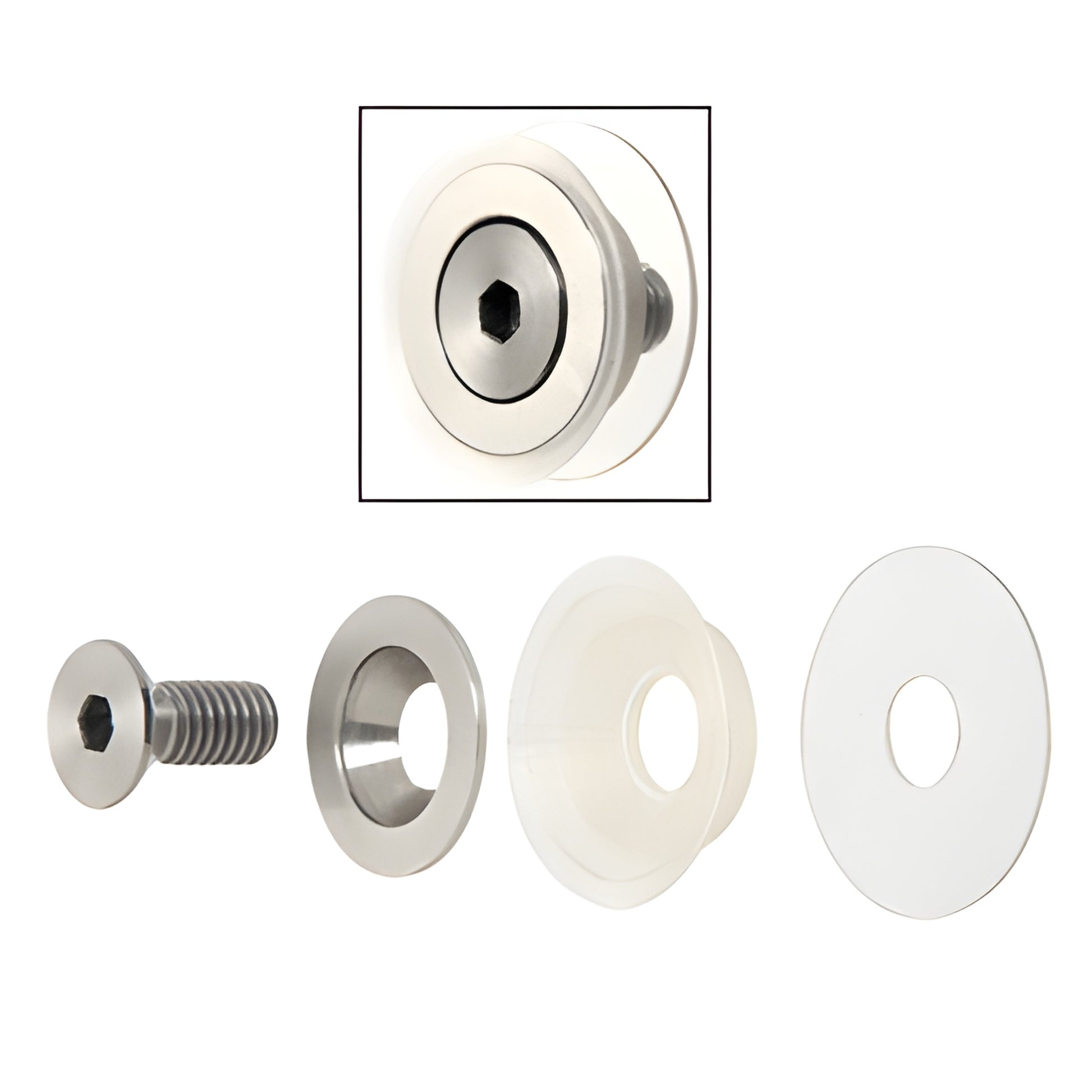

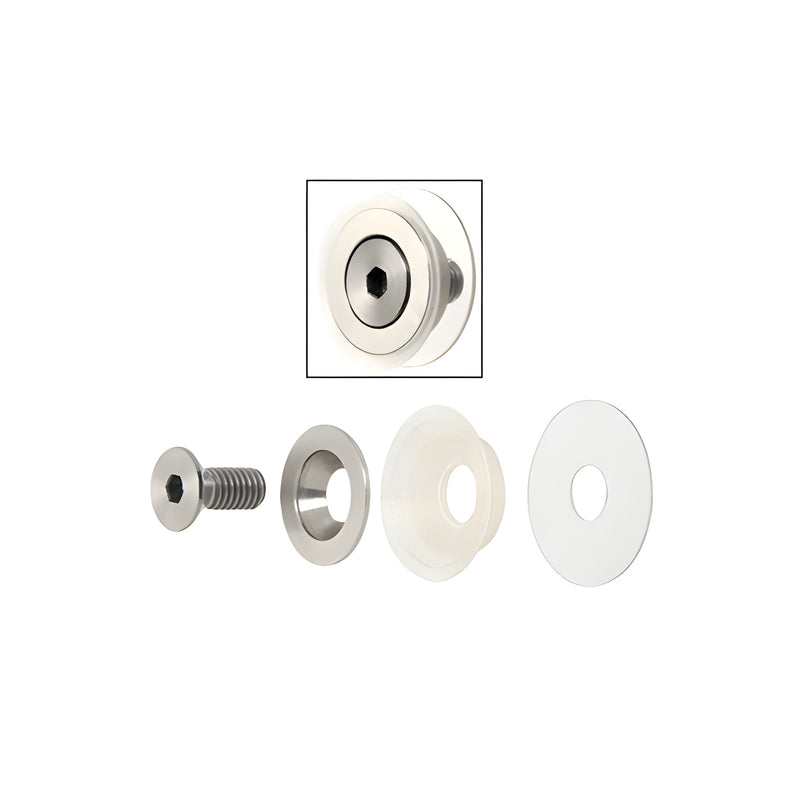

CRL's Flush Mount Cap Assembly is designed to be used with 1-1/4" (32 mm) Standoff Bases in applications where the Standoff Cap must be flush with the surface of the glass. The Flush Cap comes with a 7/8" (22 mm), 5/16" - 18 Socket Head Screw with washers. The Flush Cap measures 1-1/8" (28.6 mm) in diameter. Minimum material thickness is 3/8" (10 mm). An optional 1-3/8" (35 mm) Screw is available for use with thicker materials.
NOTE: Fabrication Requirements for Flush Cap: 3/4" Diameter Hole; 1-1/2" Countersink (to desired depth) using Cat. No. BDC112 Diamond Countersink.
Product Warning
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Warning
Do not drill too deep into material with Cat. No. BDC112 Countersink Drill Bit. It may be necessary to dry fit the Flush Cap several times to achieve the desired surface flatness.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
