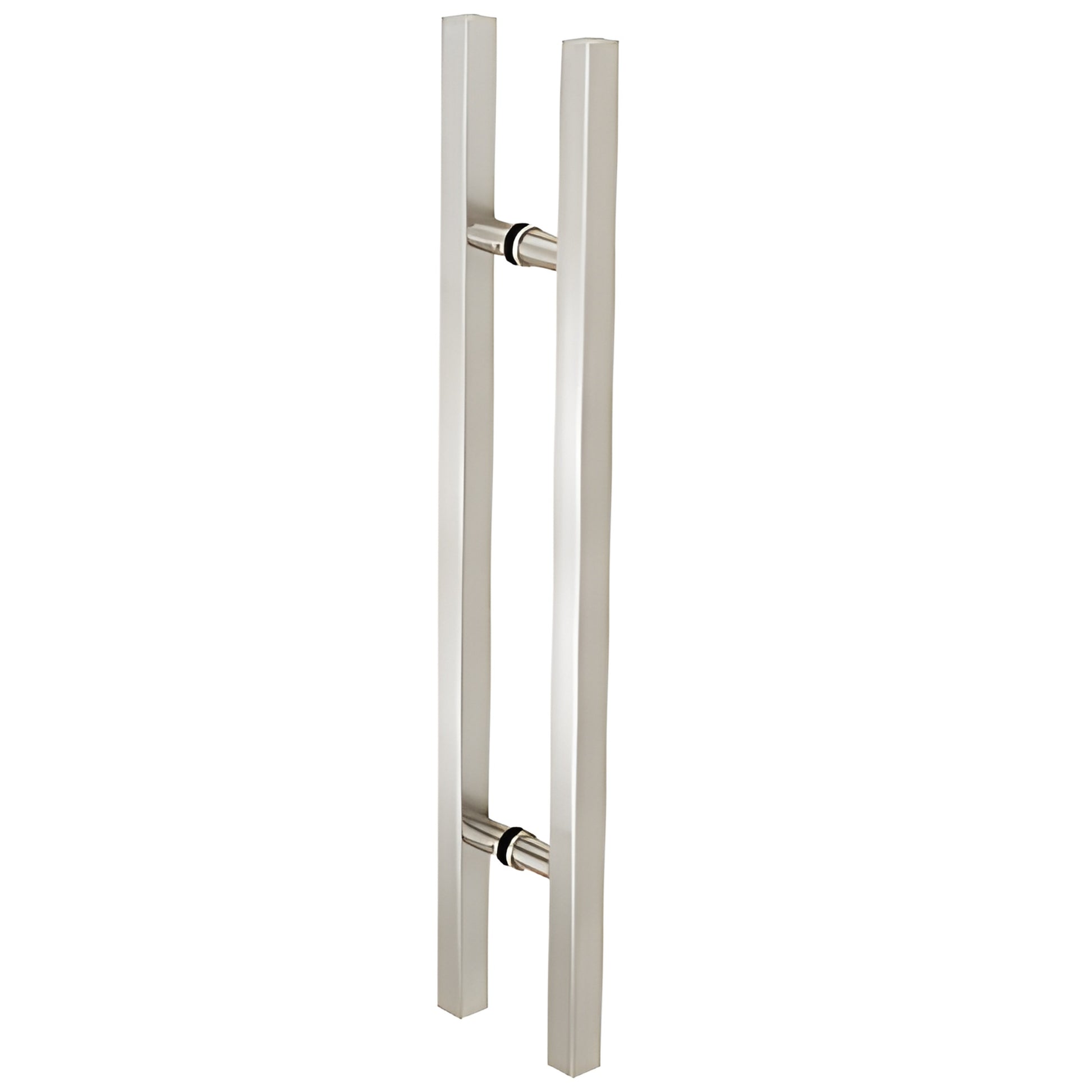

CRL Brushed Stainless Glass Mounted Square Ladder Style Pull Handle with Round Mounting Posts - 36" (914 mm) Overall Length
Item# 36SQRLPBS
Shipping Weight: 8.818
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.818
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Diameter1-1/4 in. (32 mm)
- Finish/Color:Brushed Stainless Steel
- Glazing Thickness3/8 in. To 3/4 in. (10 mm To 19 mm)
- MaterialStainless Steel
- Mounting Center To Center24 in. (610 mm)
- Mounting Hole Diameter5/8 in. (16 mm)
- Mounting TypeBack-To-Back
- Overall Length36 in. (914 mm)
- Style Washer Diameter1-1/4 in. (32 mm)
- Style WashersYes
- Extra Bolts Available, Sold Separately
- Round Mounting Posts
- Use Monolithic Tempered Glass
CRL Square Ladder Style Pull Handle are for back-to-back round mounting posts with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" thick tempered glass. Stock sizes range from 24", 36", 48" and 60" overall length. Standard finishes are polished stainless and brushed stainless. The pulls areconstructed of 1-1/4" square stainless-steel tubing.
SPECIFICATIONS:
For Use With:
3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1-1/4" (32 mm) Square Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
