Product Details
- Extra Bolts Available, Sold Separately
- Square Mounting Posts
- Use Monolithic Tempered Glass

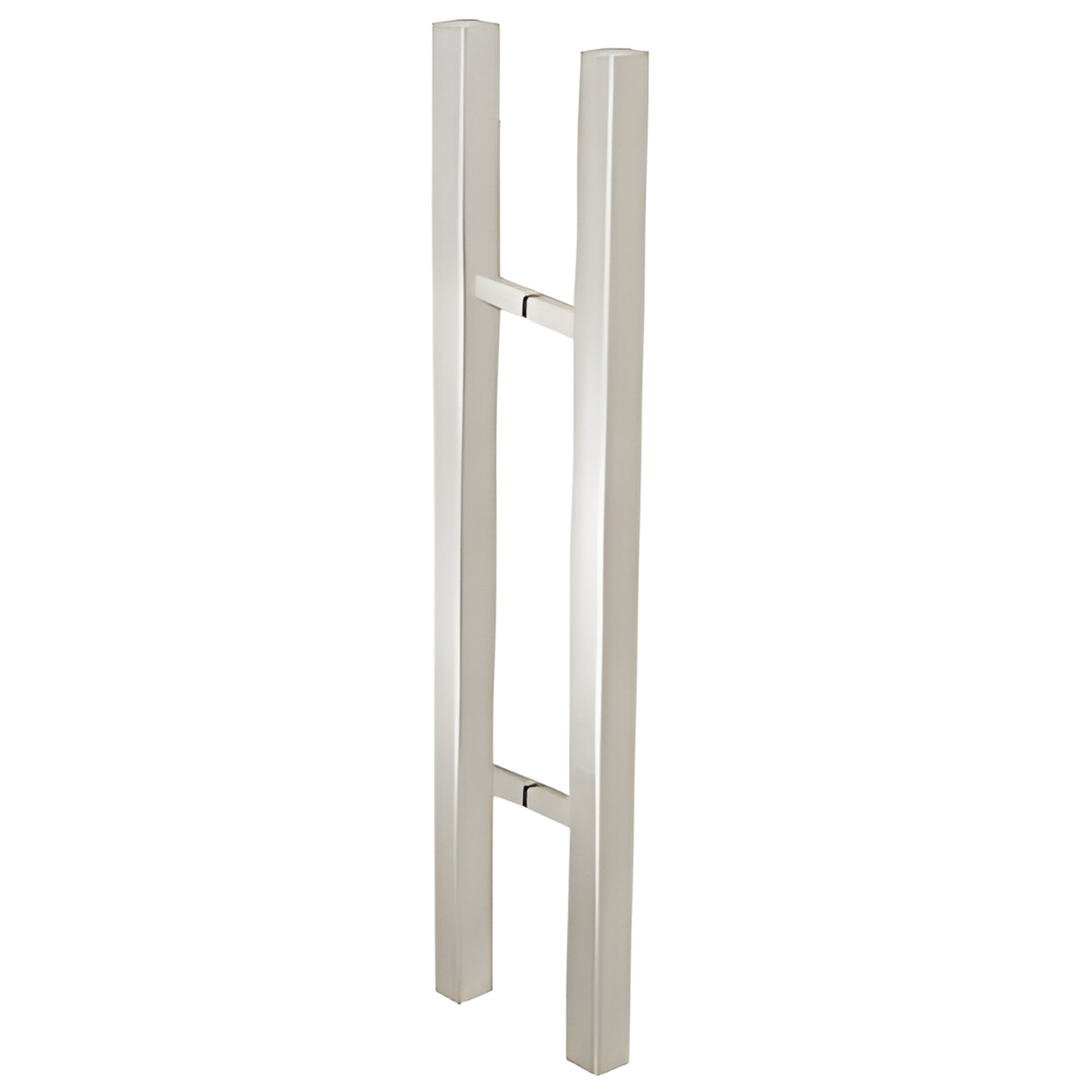

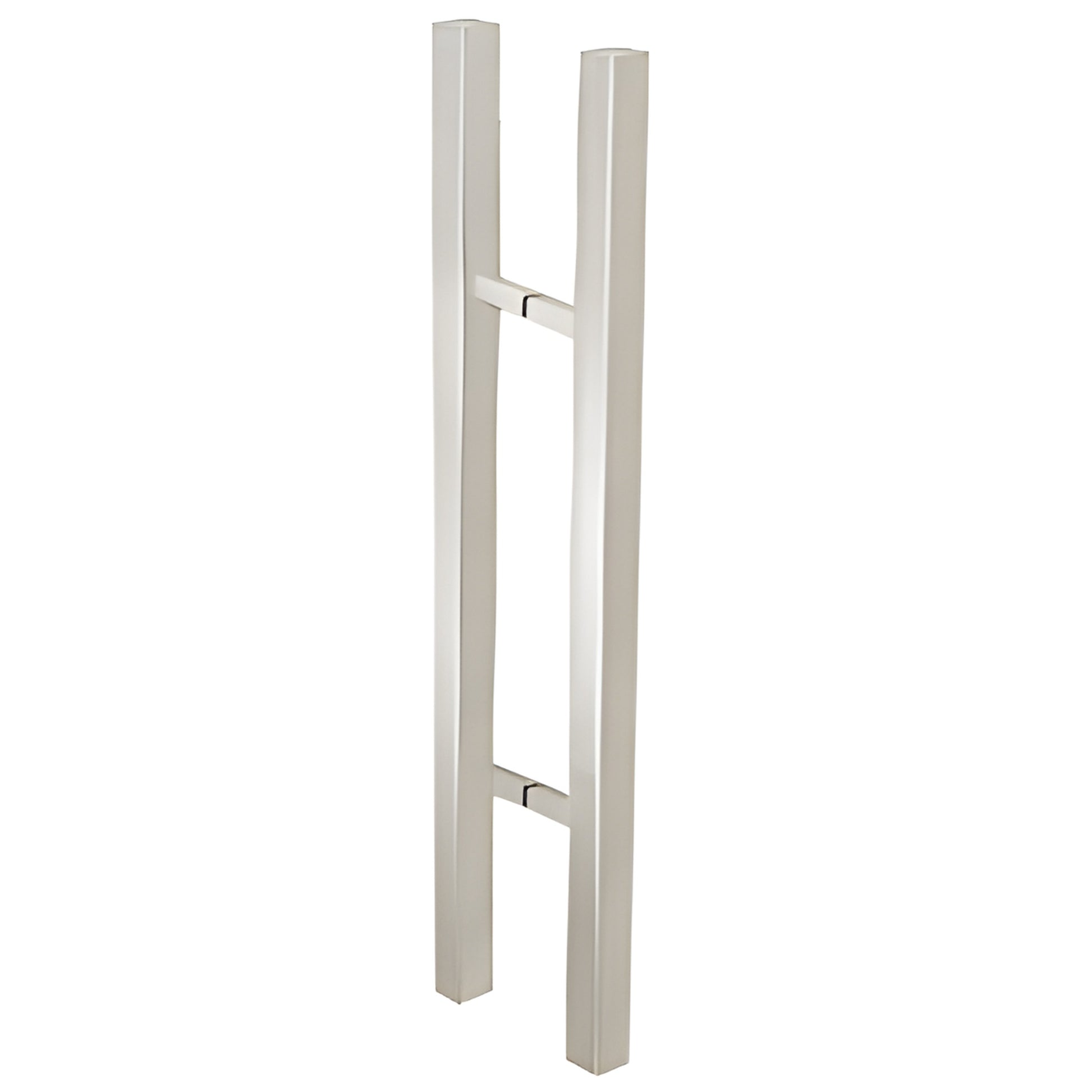

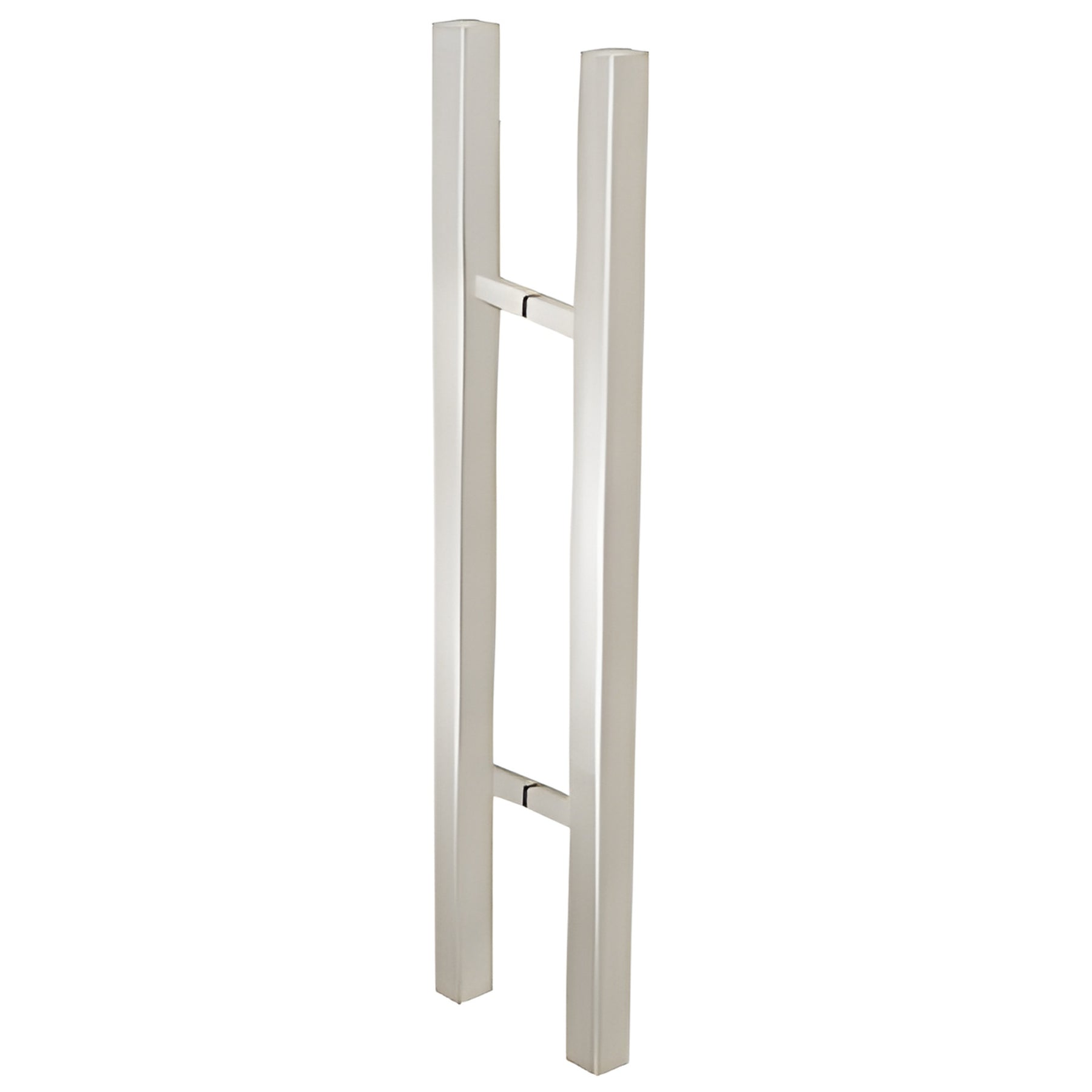

CRL Square Ladder Style Pull Handle are for back-to-back square mounting posts with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" thick tempered glass. Stock sizes range from 24", 36", 48" and 60" overall length. Standard finishes are polished stainless and brushed stainless. The pulls areconstructed of 1-1/4" square stainless-steel tubing.
SPECIFICATIONS:
For Use With:
3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1-1/4" (32 mm) Square Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
