- Adds rigidity and helps stabilize all‑glass openings — ideal floating header for glass doors
- Special order only (custom lengths and finishes available)
- Configurable for glass‑to‑glass or glass‑to‑wall installations, with or without overhead concealed door closers
- Several stock architectural finishes; custom finishes available
- Each floating header is customized to your project requirements (SKU: FH4FGWBSCS)

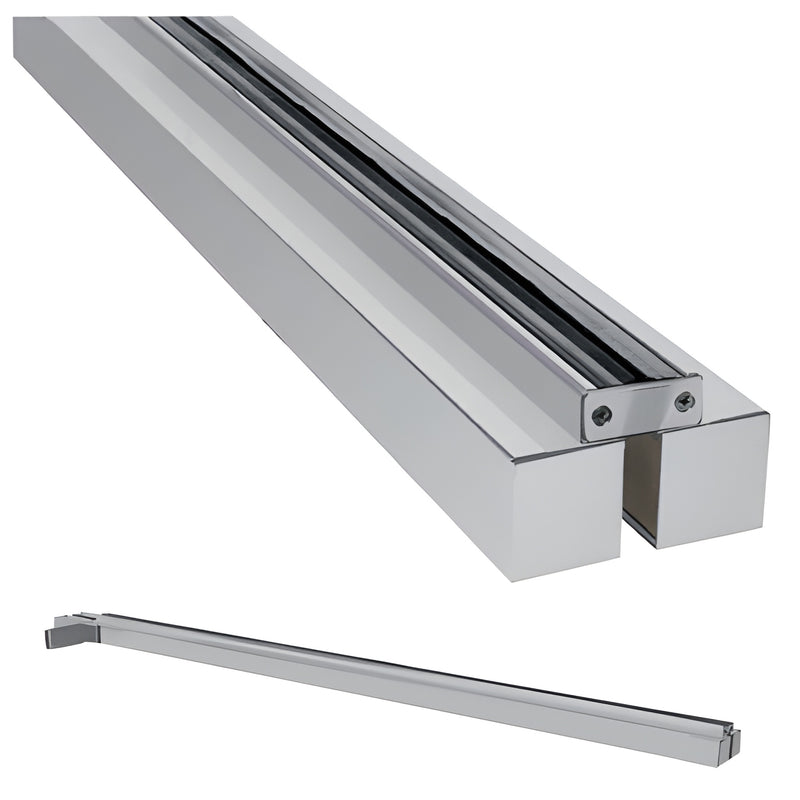

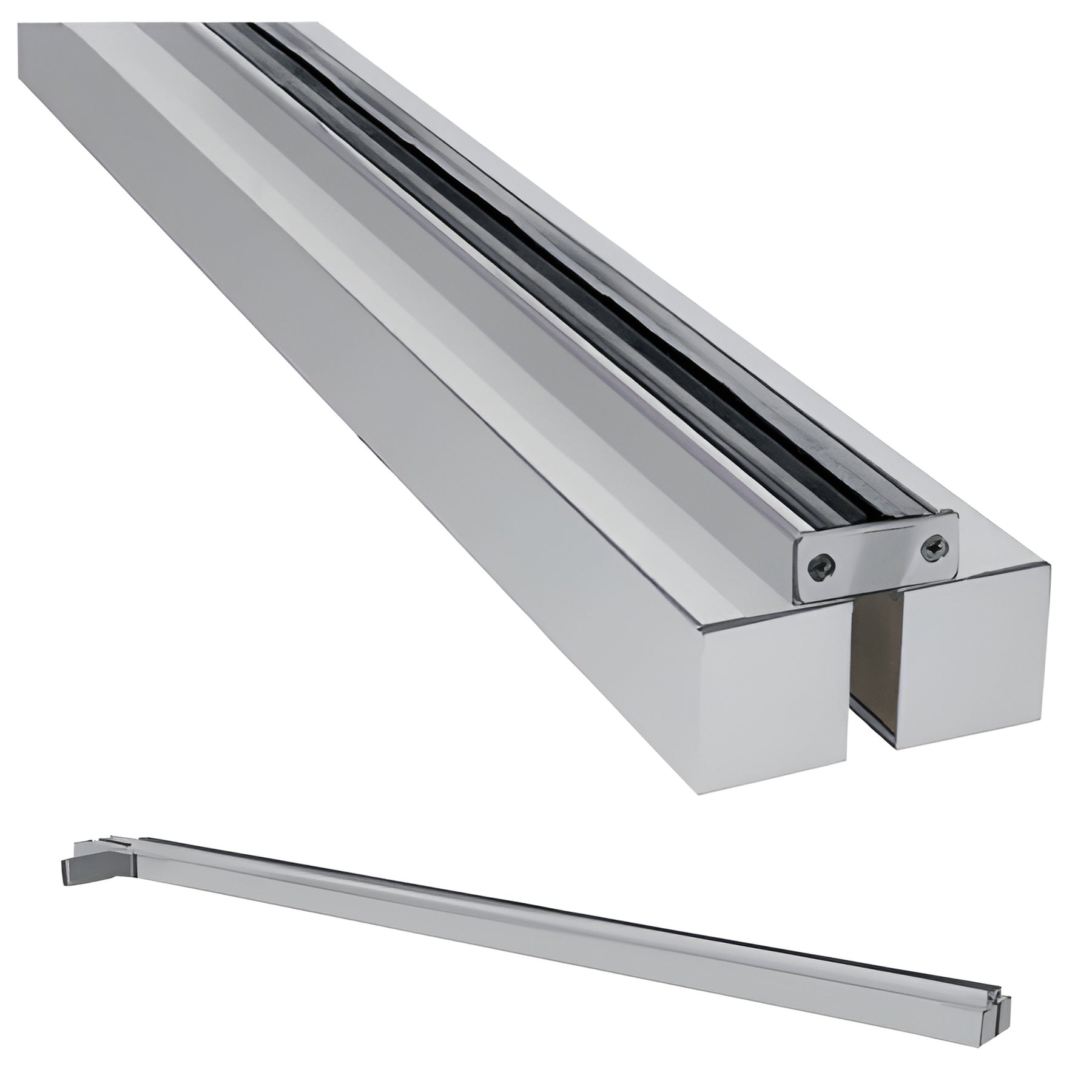

CRL Floating Headers With Fin Brackets were developed to add rigidity to all‑glass entrances and reduce deflection from wind, stack load pressure, and impacts. These floating headers are suitable for single or double glass doors and accommodate many configurations, including custom lengths, glass‑to‑wall installations, and headers prepped for surface‑mounted magnetic locks, magnetic shear locks, surface mounted top pivots, walking beam pivots, or overhead concealed door closers. Header profile measures 4" x 1-3/4" (102 x 44.5 mm). For technical assistance or to request a custom configuration, contact CRL Technical Sales Department.
Product Warning:
STRUCTURAL DISCLAIMER — Consult a structural engineer to confirm suitability for your site and application. Installers must be qualified and follow local, state, and federal codes, safety factors, and proper fastening procedures. If the transom weight above the header exceeds 100 lbs. (45.4 kg), support the transom from the ceiling to prevent header bowing; consider Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact Technical Sales for guidance.
Most shipping weights are approximate and unverified. If exact weight is required to calculate shipping, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust‑ or stain‑proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Need a quote or custom spec for a floating header for glass doors (SKU: FH4FGWBSCS)? Contact CRL Technical Sales to get started.
