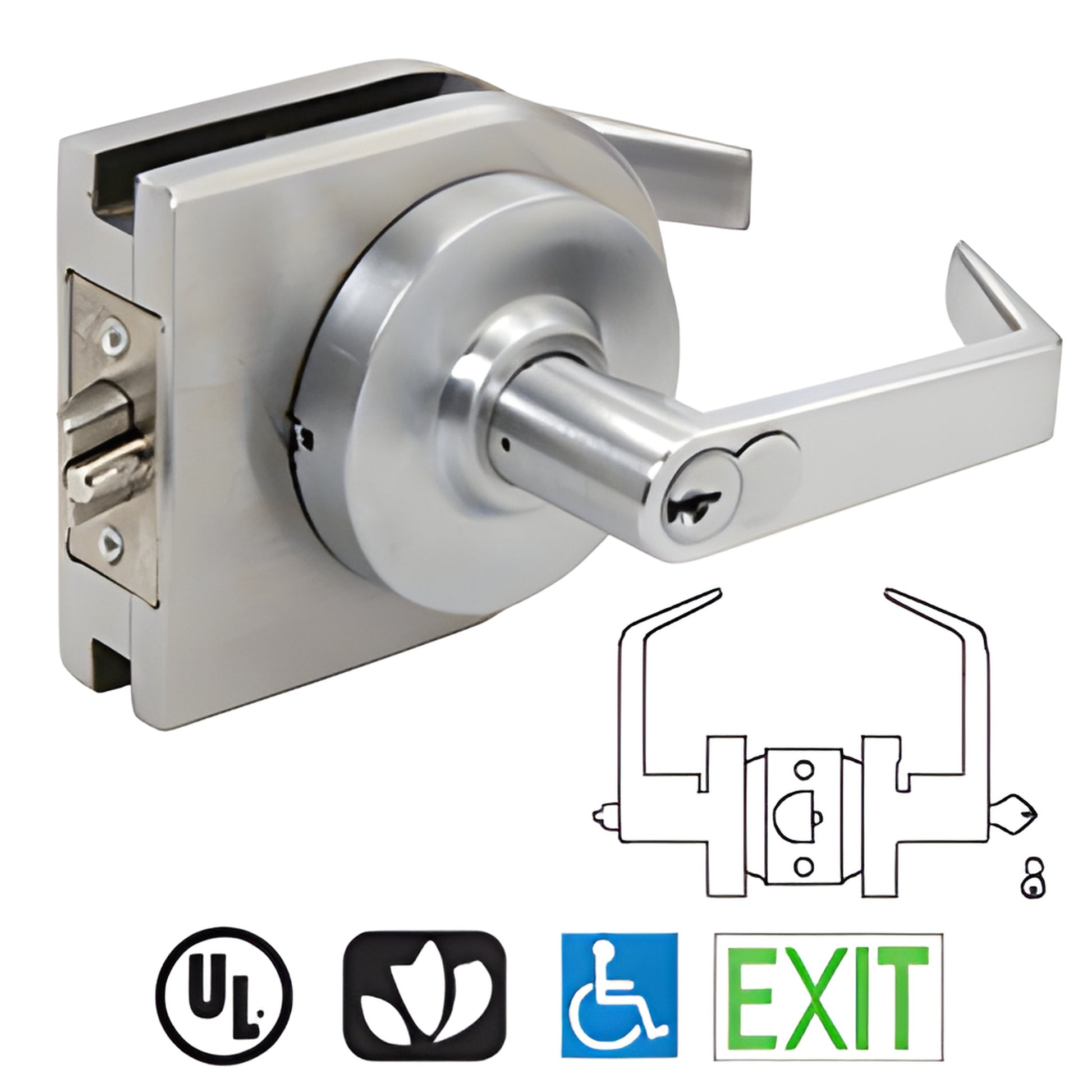

CRL Grade 1 Brushed Stainless 7-Pin SFIC Entrance Door Lever Lock
CRL Grade 1 Brushed Stainless 7-Pin SFIC Entrance Door Lever Lock
Regular price
$365.01 CAD
Regular price
Sale price
$365.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH52BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
5 in. (127 mm)
Overview
- Low profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible
- Five architectural finishes available
- Four function options
CRL's Lever Lock Housings (SKU: LH52BS) are easy-to-install and include the housing plus lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass doors. Entrance and storeroom models are available with either a Schlage 'C' 6-pin keyway or a 7-pin small format interchangeable core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included, making these lever lock housings ideal for glass storefronts, commercial glass doors, and ADA-compliant barrier-free applications.
Compliances and certifications:
- ANSI A156.2 Grade 1. UL10C and UBC 7.2 for positive pressure
- ANSI A117.1 and ADA for barrier-free accessibility
- C-UBC California Amended Uniform Building Code – 2001
- NFPA-80 National Fire Protection - 1999
- NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and a glass fabrication template are included.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Durable, fire-rated lever lock housings for commercial glass doors—order LH52BS or contact us for a quote and glass fabrication guidance.
