CRL Brushed Stainless Heavy-Duty 4-Way 90° Column Spider Fitting
CRL Brushed Stainless Heavy-Duty 4-Way 90° Column Spider Fitting
Regular price
$203.58 CAD
Regular price
Sale price
$203.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PMH490BS
Shipping Weight: 5.991 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.991 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Overview
- For use with glass up to 1-1/16" (27 mm) — monolithic tempered glass recommended
- Complete with hardware to mount to post or column
- Glass attachments sold separately
- Ideal corner-post four-arm fitting for 90° glass panels

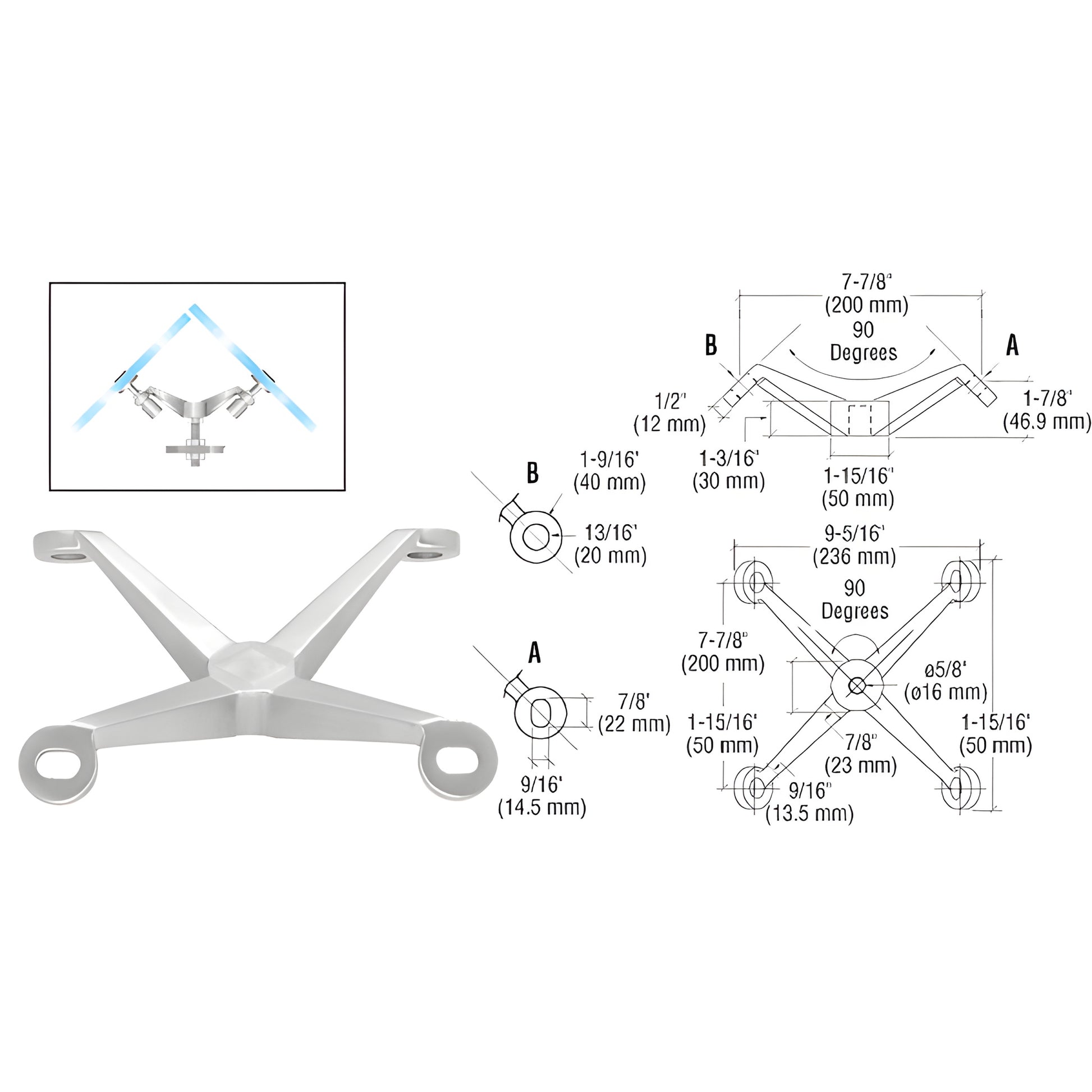

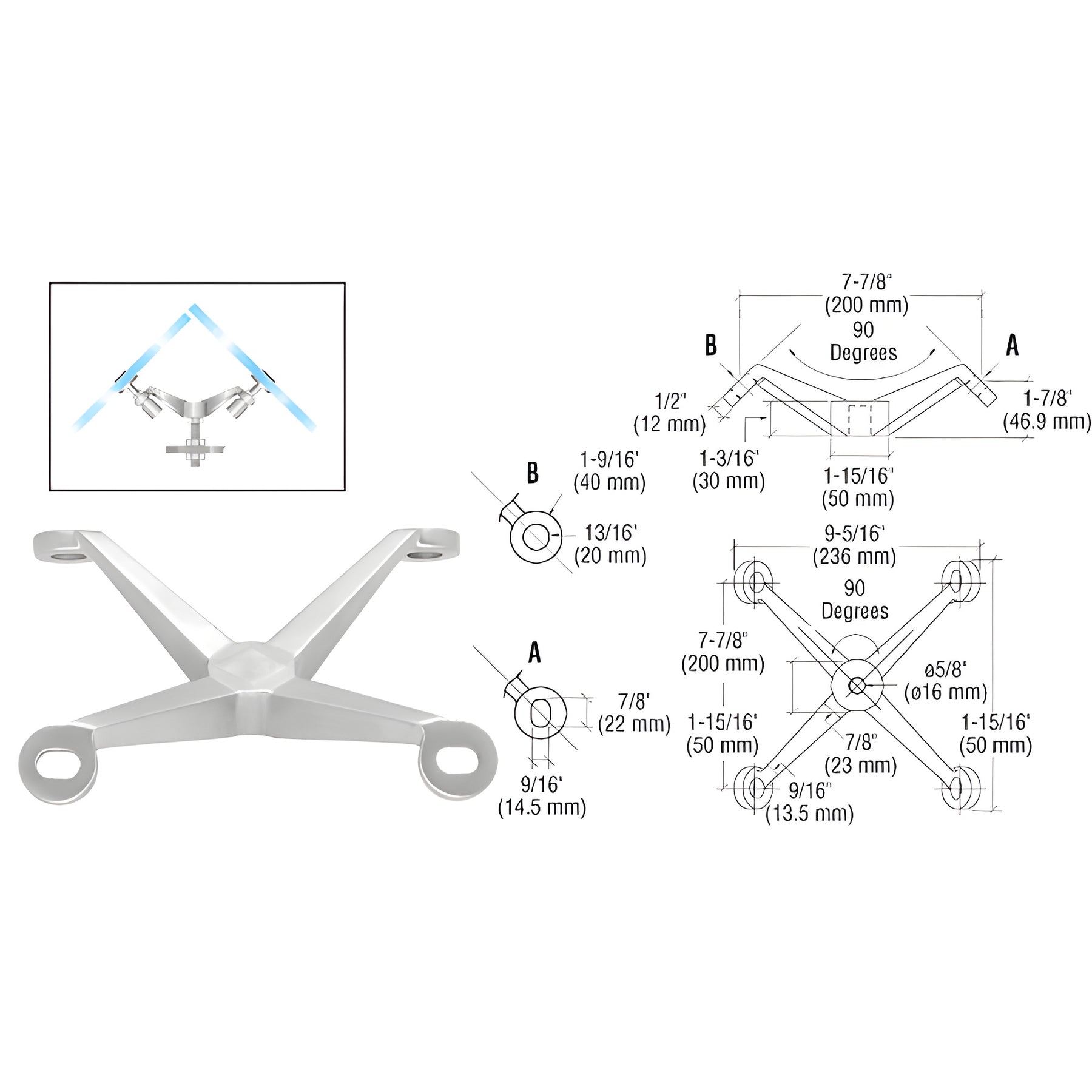

This CRL Four Arm Fitting (SKU: PMH490BS) secures two 90° glass panels to a structural corner post. Includes a 16 x 99.5 mm (3-7/8") stainless steel threaded stud plus three matching nuts and washers. Replacement stud set available. This stainless steel four-arm corner fitting is a durable choice for glass railing, balustrade, and corner post glazing systems.
For a companion fitting, use Cat. No. PMH2V90BS or PMH2V90PS.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order PMH490BS today — contact CRL or your distributor to confirm compatibility and receive installation guidance.
