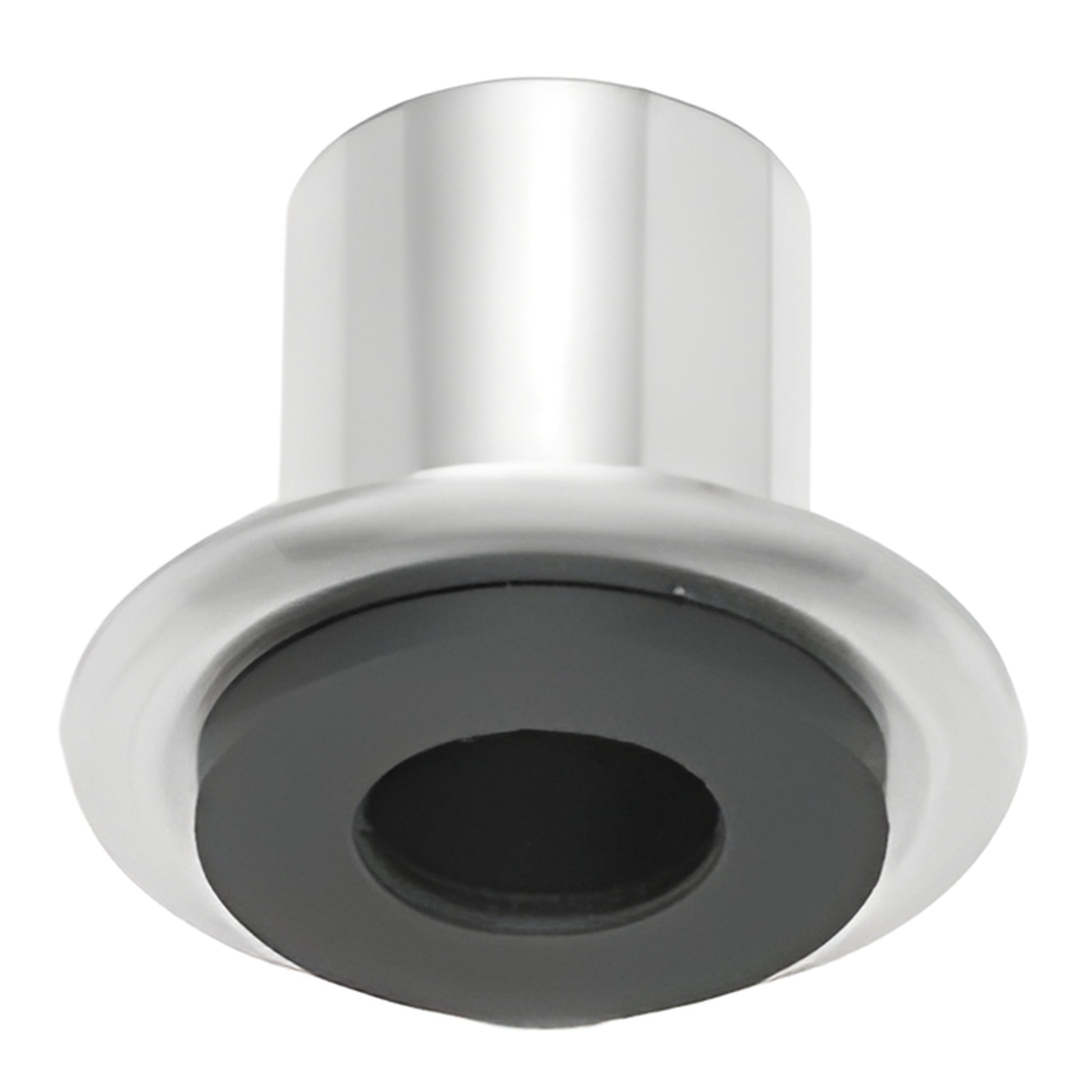

CRL Laguna Brushed Stainless Top Pivot Hinge for Glass Doors
CRL Laguna Brushed Stainless Top Pivot Hinge for Glass Doors
Regular price
$13.60 CAD
Regular price
Sale price
$13.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LS1BS
Shipping Weight: 2.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Attachment
Flush, Surface
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Glazing Type
Tempered Insulated
Overview
- Brushed Stainless Finish
- Free-Swinging Door Pivot
- Requires a 1" (25.4 mm) Hole to Install
This CRL Free-Swinging Top Pivot (SKU: LS1BS) is a mortisable top pivot designed for mounting in a wood header or an aluminum tube over the doorway. Ideal for commercial and residential swing doors, it provides a clean, brushed stainless look and smooth free-swinging operation. Requires a 1" (25.4 mm) hole to install.
Key differentiators:
- Durable brushed stainless finish for corrosion resistance and professional appearance
- Mortise-style top pivot — hides hardware for a streamlined door install
- Designed for smooth, free-swinging operation on interior and light-exterior doors
Installation guidelines:
Maximum Height: 98-1/2" (2500 mm)
Maximum Weight: 176 lbs (80 kg)
Maximum Width: 47-1/4" (1200 mm)
If the door exceeds any of these limits, use full door rails for proper support.
Product Warning:
These fittings are not for use with laminated glass.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.
Need help selecting the right top pivot for your door? Contact CRL or add SKU LS1BS to your cart to order now.
