CRL Stainless Patch Kit Glass Door w/ Transom & Sidelite - No Lock

CRL Stainless Patch Kit Glass Door w/ Transom & Sidelite - No Lock

$434.03 CAD
$434.03 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA4BS
Shipping Weight: 6.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available in five architectural finishes

CRL PHA4 North American Door Kits (SKU: PHA4BS) include all hardware required to complete a free-swinging pivot door with fixed transom and sidelite (glass and additional supports for transom/sidelite not included). Pivot setback: 2-3/4" (70 mm). Compatible with a floor closer that uses a tapered spindle (floor closer ordered separately). These commercial glass door kits are designed for tempered glass storefront and interior applications.

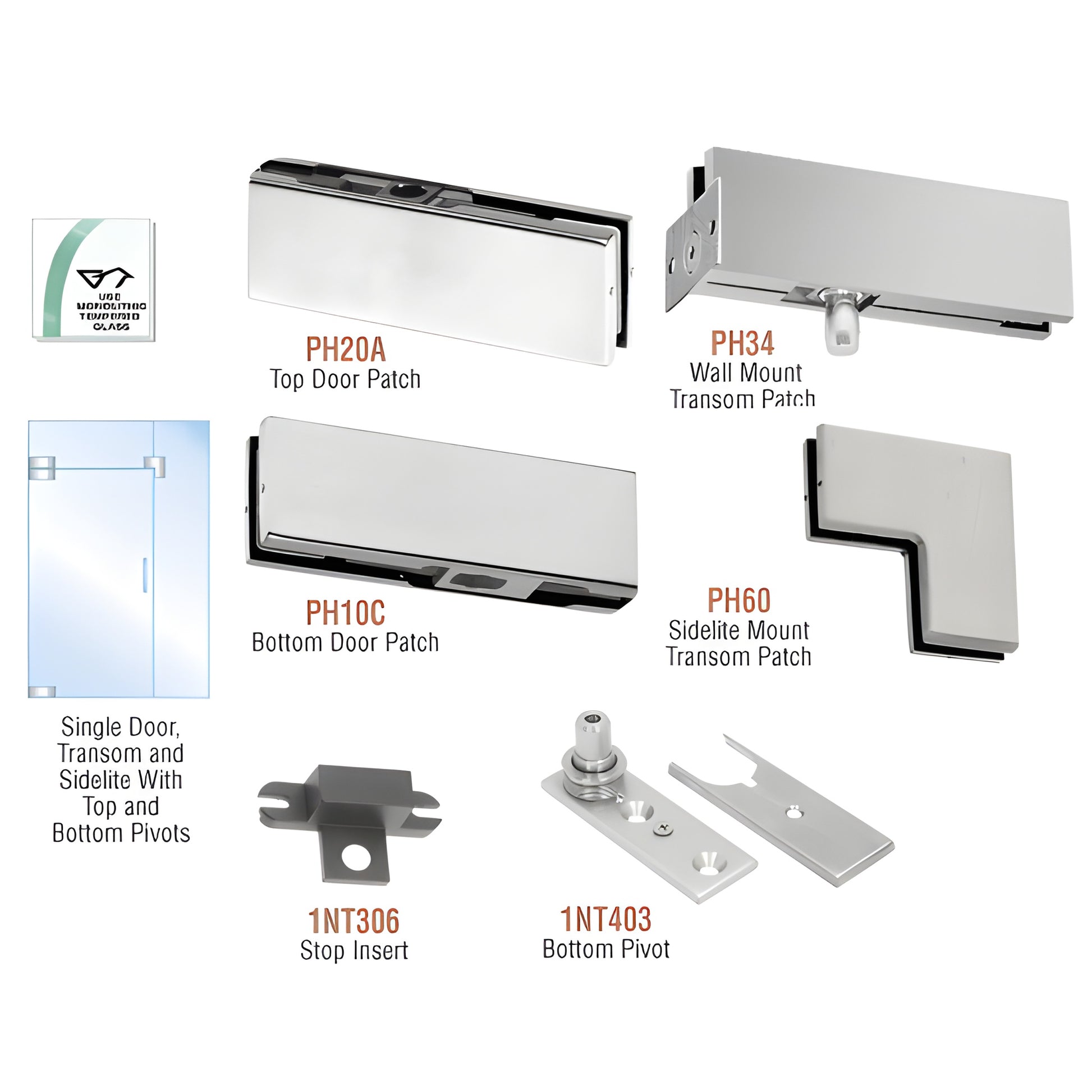

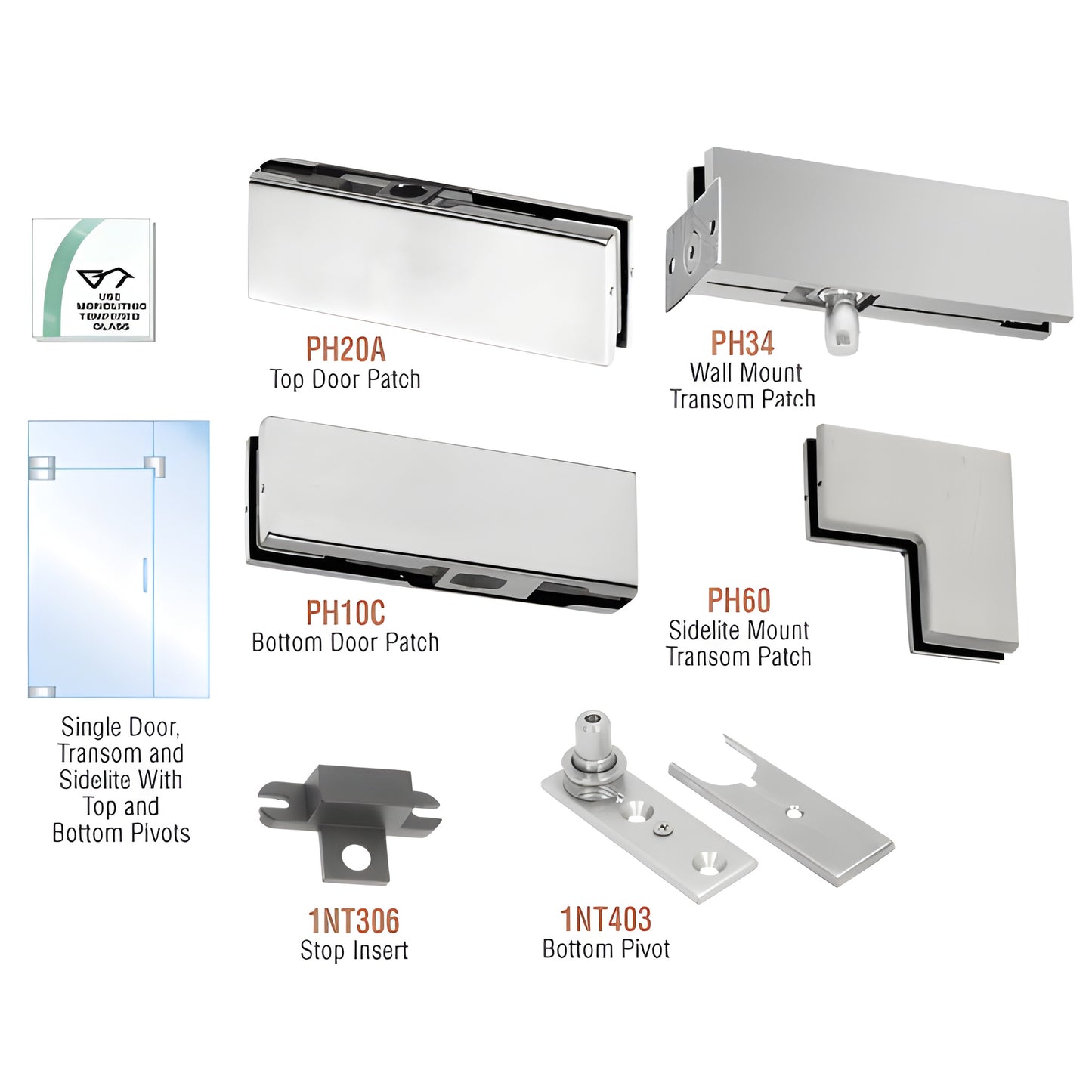

Kit Contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH60 Sidelite Mount Transom Patch
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in glass)

Kits with a lock include one AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not fully rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.

Why choose PHA4BS? Engineered for commercial tempered glass pivot doors, this complete North American pivot door kit offers dependable hardware, multiple architectural finishes, and compatibility with standard floor closers—making it ideal for storefronts, offices, and interior glass installations.
