Product Details
- Four-Roller Units Silently Move the Door Rails
- Provides a Flush Bottom Surface
- Available in Several Configurations and Architectural Finishes

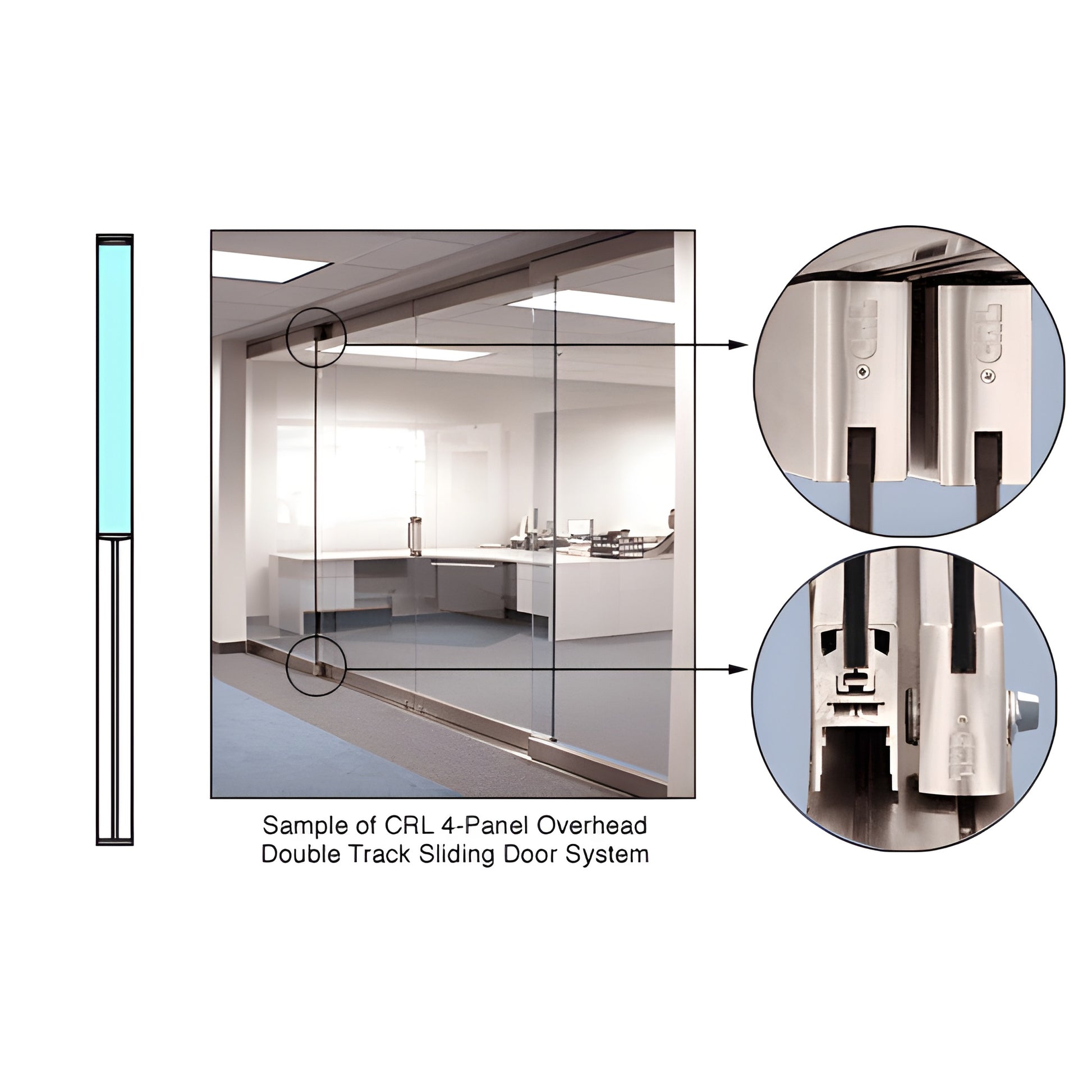

CRL Overhead Track Sliding Door Systems are available in four standard configurations. Each sliding panel is hung from two Cat. No. 0TCA Carriage Assemblies. Maximum panel weight not to exceed 225 lbs. (102 kg). Maximum panel width is 72" (1.83 m). Minimum panel width is 25" (635 mm).
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
