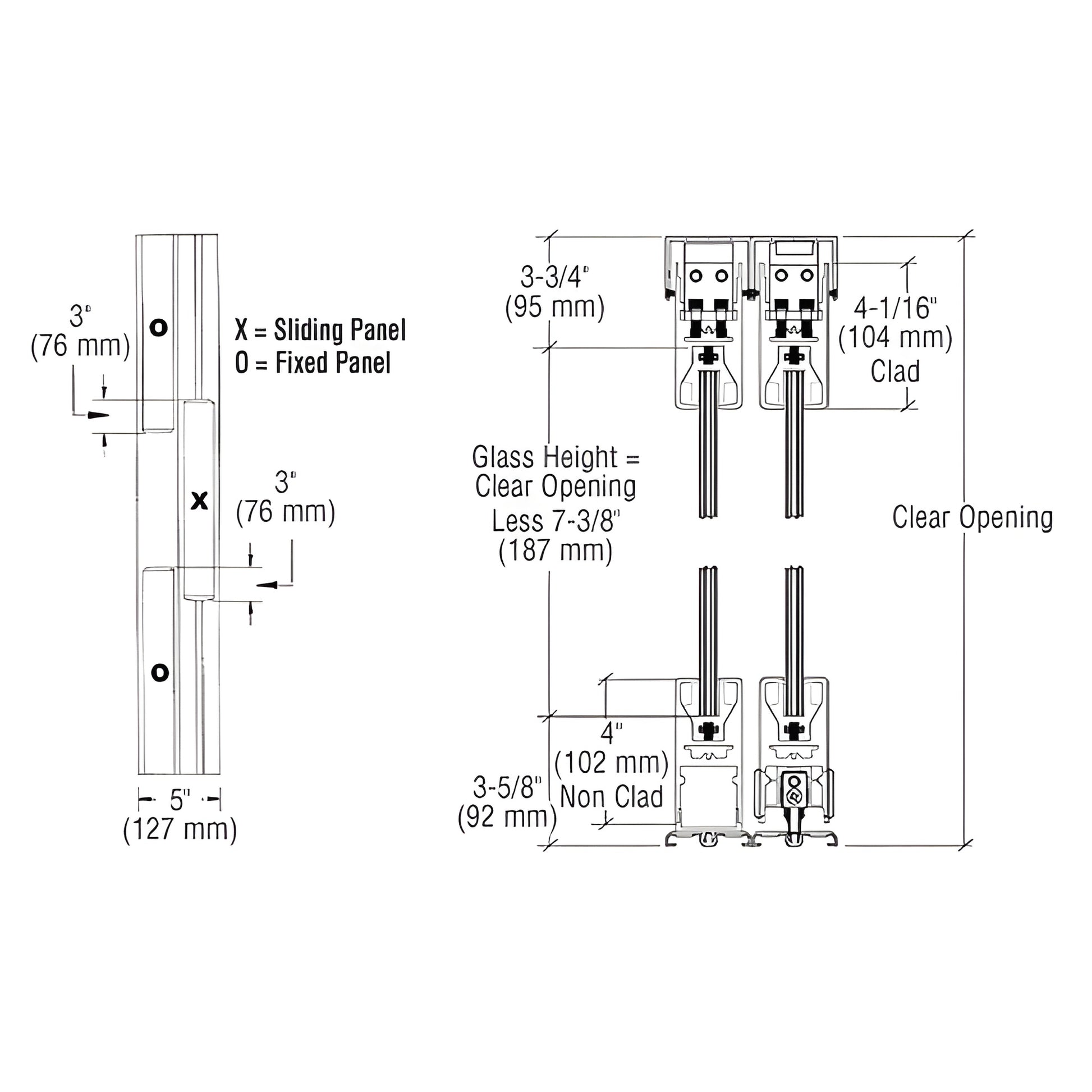

• Diagram of CRL SDR bottom-rolling sliding door system, brushed stainless 4" square rails, SKU 4SDR3EBS.
1 1

CRL

CRL OXO Format Brushed Stainless Sliding Door System 4in Square Rails

CRL OXO Format Brushed Stainless Sliding Door System 4in Square Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR3EBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Square Rails top and bottom features CRL's proven Wedge-Lock® Glass Securing System for secure, low-profile glazing. DR4S Series rails are custom fabricated for both door and fixed panels to your specifications and can include an optional bottom-rail lock. Maximum door width: 48" (1.22 m); maximum height: 108" (2.74 m); maximum weight: 234 lb (106 kg). SKU: 4SDR3EBS.

Most shipping weights are approximate and unverified. If an exact weight is required to calculate shipping costs, contact CRL Customer Service before placing your order. Product images show the actual product or a close representation; colors may vary by monitor and video card settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.

Ideal for commercial and residential interior sliding door installations requiring durable bottom rolling hardware and customizable 4" square rails in multiple architectural finishes. Contact CRL for a quote or to discuss custom configurations.
