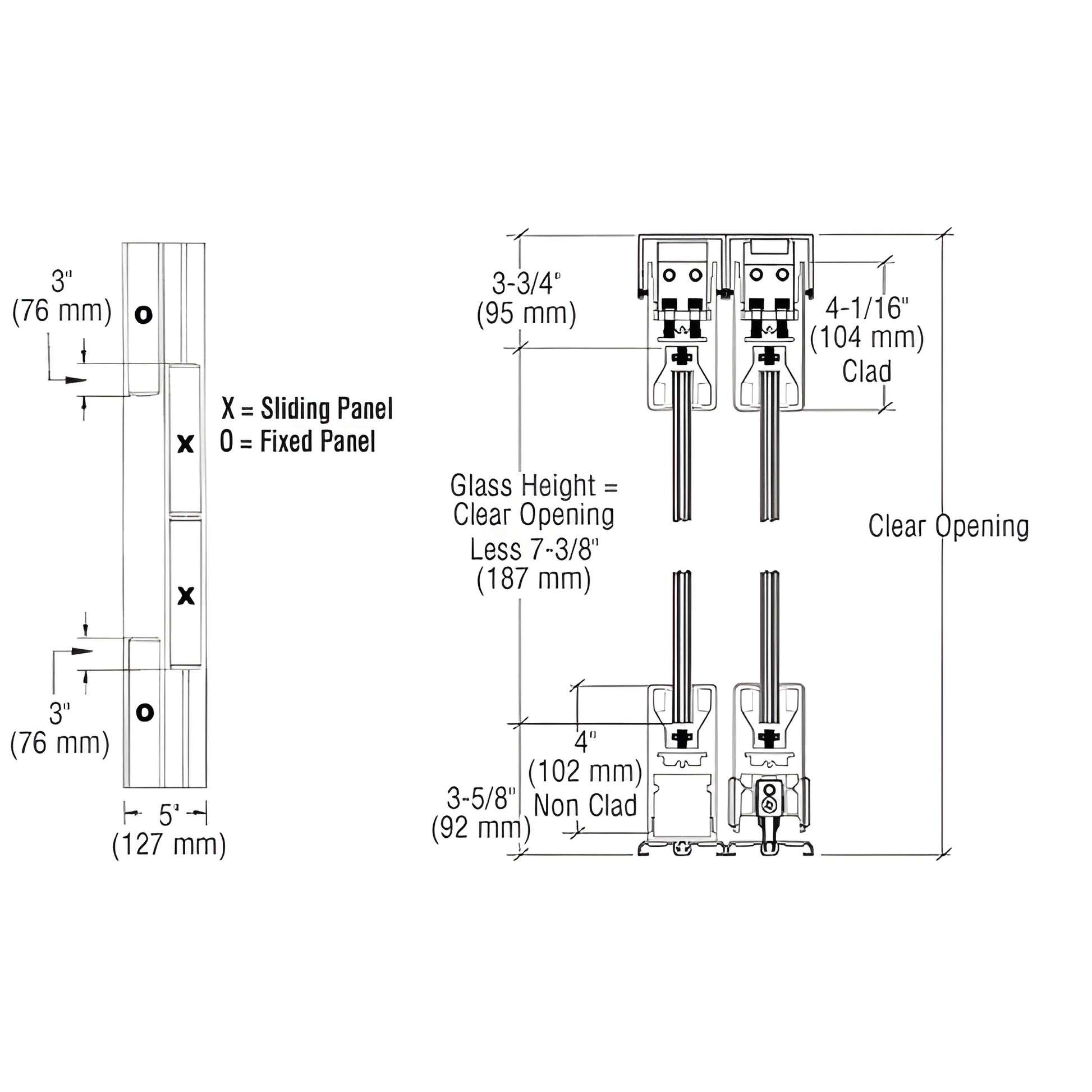

• CRL SDR bottom-rolling door SKU 4SDR4FBS, brushed stainless 4in rails, supports frameless glass to 48x108in, 234lb
1 1

CRL

CRL OXXO Brushed Stainless Sliding Door Hardware 4" Top/Bottom Rails

CRL OXXO Brushed Stainless Sliding Door Hardware 4" Top/Bottom Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR4FBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR4FBS) features 4" (102 mm) square rails top and bottom and uses CRL's proven Wedge-Lock® Glass Securing System for secure, reliable glass retention. DR4S Series rails are custom fabricated to your specifications for both door and fixed panels, and can be ordered with or without an integrated bottom rail lock. Designed for commercial and residential applications, this bottom-rolling sliding door system supports doors up to 48" (1.22 m) wide and 108" (2.74 m) high, with a maximum door weight of 234 lbs. (106 kg). Ideal for frameless glass sliding door installations and architectural storefronts where a clean, contemporary profile is required.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs and complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For full maintenance guidance, see the Stainless Steel Disclaimer in the Technical References section.
