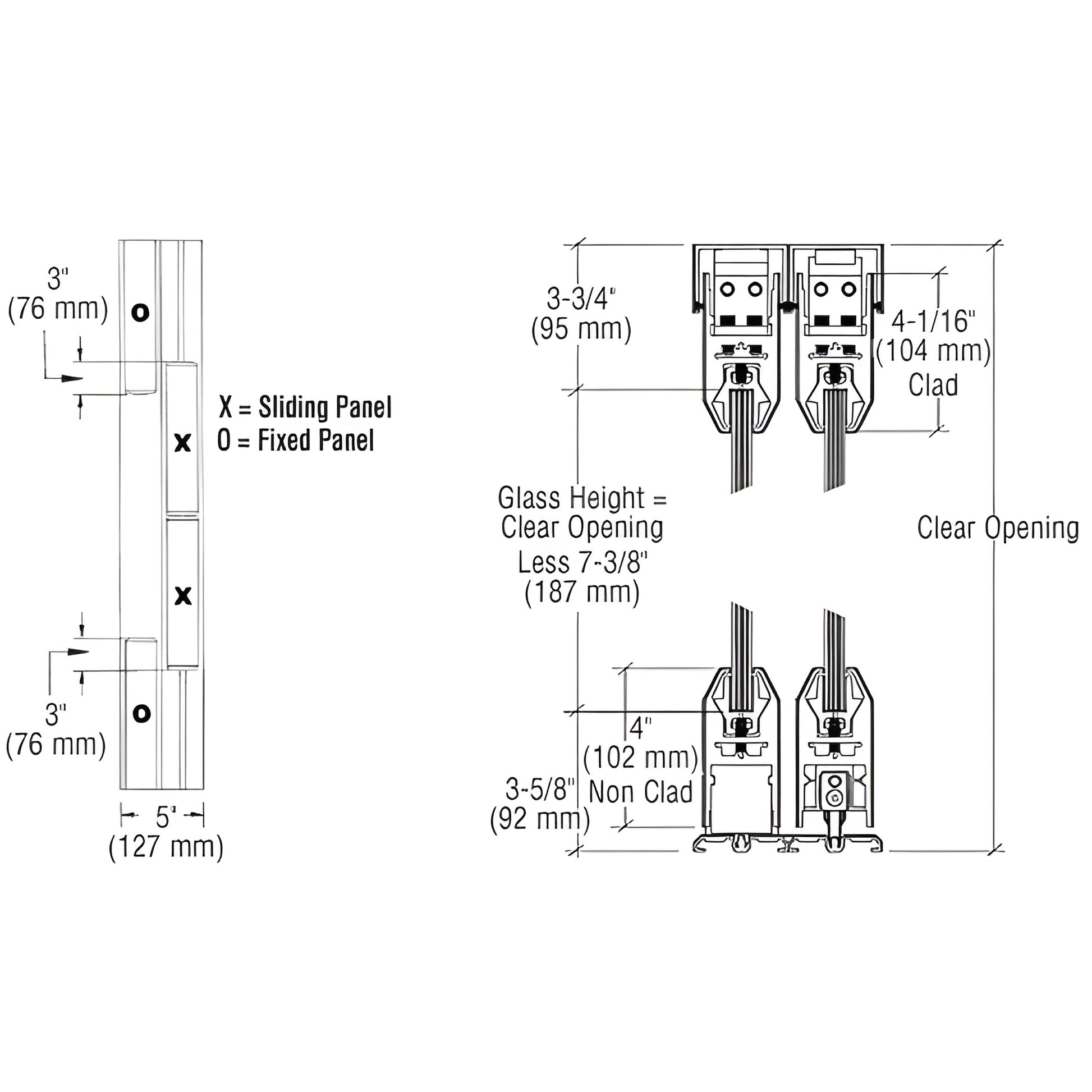

• SDR4FBS bottom-rolling sliding door system diagram - brushed stainless, 4" tapered DR4T rails, OXXO configuration, dimensions
1 1

CRL

CRL OXXO Format Brushed Stainless Sliding Door 4-in Tapered Rail

CRL OXXO Format Brushed Stainless Sliding Door 4-in Tapered Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR4FBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Door Type
Sliding
Finish/Color
Brushed Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR4FBS) features 4" (102 mm) tapered DR4T rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for secure glass retention. DR4T rails are custom fabricated for both door and fixed panels and are available with or without locks integrated into the bottom rail.

  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lb (106 kg)

Key differentiators: durable bottom-rolling design for smooth operation, tapered 4" rails for streamlined aesthetics, Wedge-Lock® for reliable glass retention, and seven architectural finishes to match commercial and residential interiors.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are representative; colors may vary by monitor and video card.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.

For pricing, finish options, and lead times for the SDR Bottom Rolling Sliding Door System (DR4T rails), contact CRL Customer Service to place an order or request a quote.
