CRL Brushed Stainless P2 Left-Hand End Post Glass Railing Kit
CRL Brushed Stainless P2 Left-Hand End Post Glass Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P236LEBSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
304
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. To 1 in. (12 mm To 25 mm)
Height
36 in. (914 mm)
Material
Stainless Steel

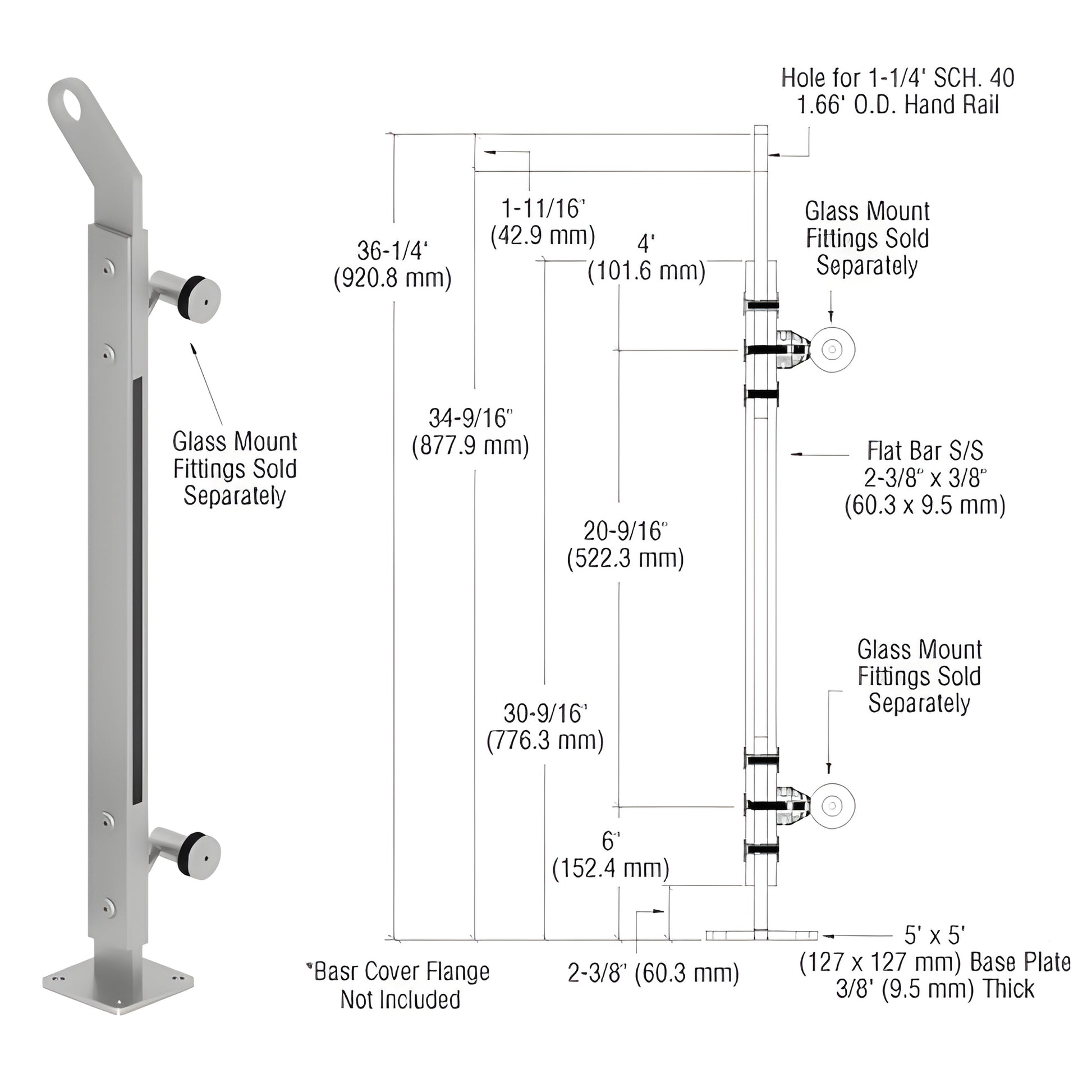

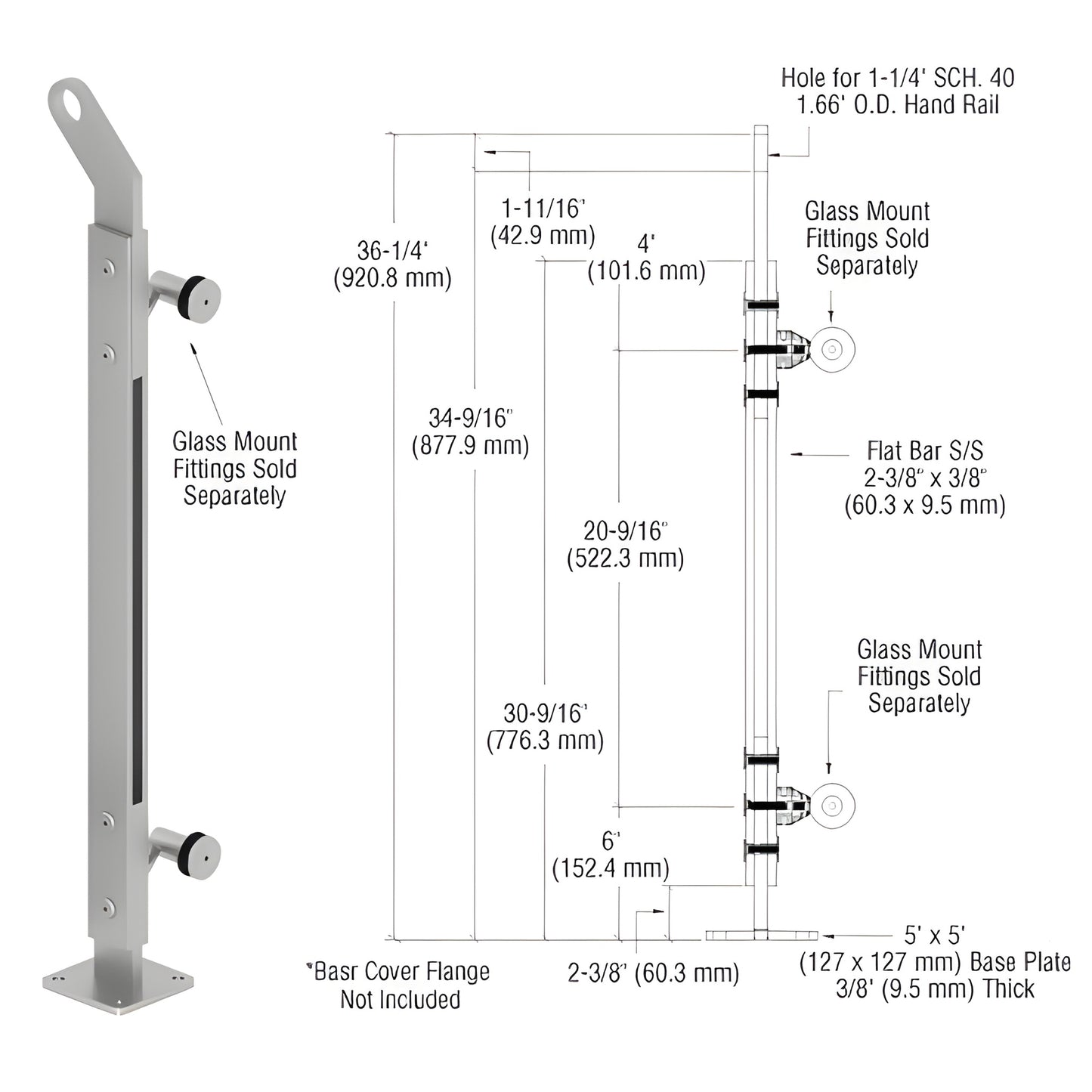

Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail code standards
- Post supports 1-1/4" (32 mm) Schedule 40 (1.66" outside diameter) horizontal/handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1067 mm); custom heights available
- Two standard stainless finishes; custom powder paint finishes available
CRL P2 Post Railing Kits are surface-mounted stainless steel post railing systems engineered for commercial and residential guardrail applications. Designed to accept 1/2"–1" glass panels, P2 kits include a stainless base plate and are prepped for CRL standard glass mount fittings. These kits support 1-1/4" Schedule 40 horizontal tubing and meet or exceed applicable guard rail code standards for safety and durability.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: P236LEBSC
For custom heights, finishes, or to order P236LEBSC and compatible glass attachment fittings, contact CRL Customer Service or your CRL distributor today.
