CRL P8 Brushed Stainless 36" End Post Fixed Glass Railing Kit
Item# P8F36EBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder paint finishes available

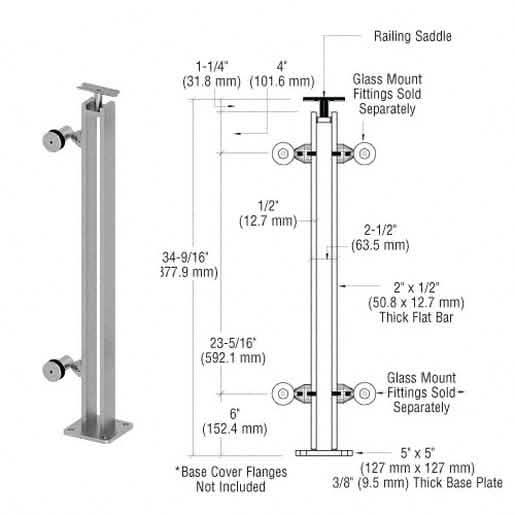

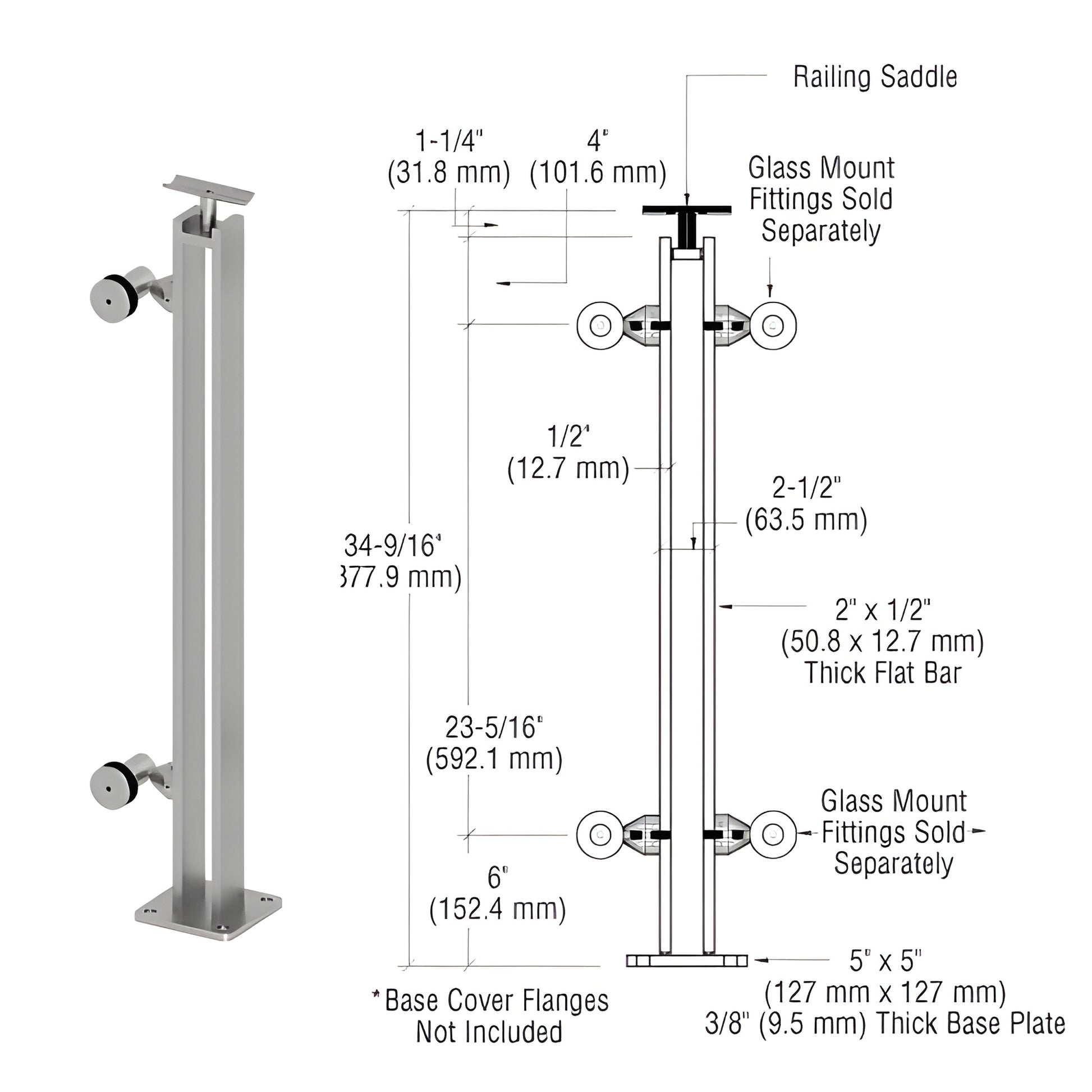

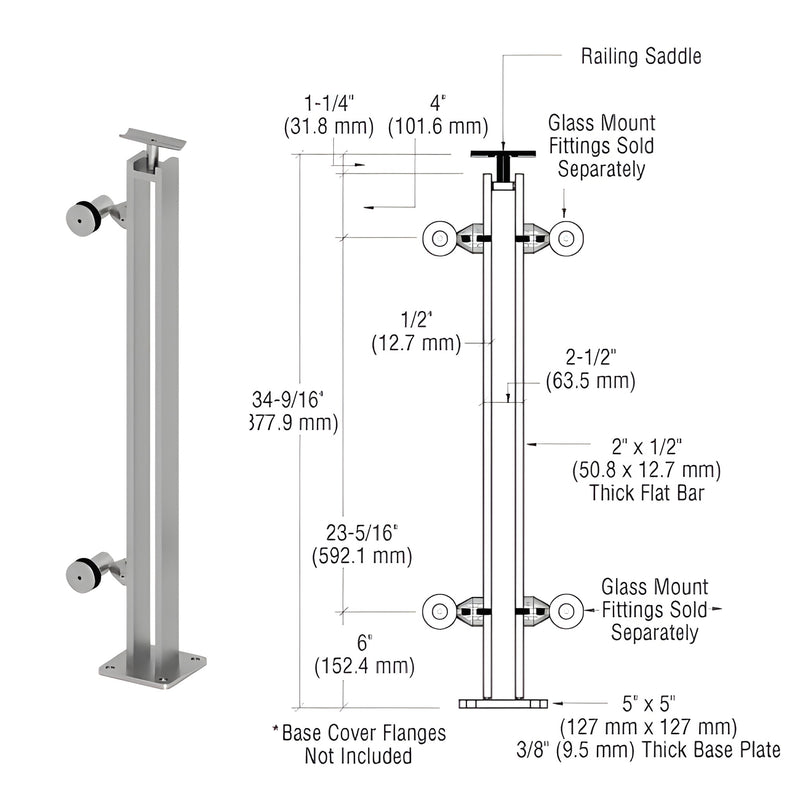

These innovative Post Railing Kits (SKU: P8F36EBS) are designed for guard rail and handrail applications. CRL's surface mounted stainless steel post railing kits are manufactured from 1/2" x 2" (12.7 x 50.8 mm) stainless steel flat bars. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 hand rail tubing. Kits are supplied complete with a base plate and welded top saddle. For screws to attach the top rail to the saddle, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs before you complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Stainless Steel Advisory:
Although stainless steel is highly corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help retain the factory finish. For full details, see the Stainless Steel Disclaimer in the Technical References section.
Highlights & Differentiators:
- Surface-mounted stainless steel construction for durable guardrail and handrail solutions
- Includes base plate and welded top saddle for secure installation
- Supports Schedule 40 handrail tubing (1-1/4" or 1-1/2")
- Flexible options: standard and custom post heights, two stainless finishes plus custom powder coating
Order the P8F36EBS surface mounted stainless steel post railing kit or contact CRL for custom heights and finish options.
